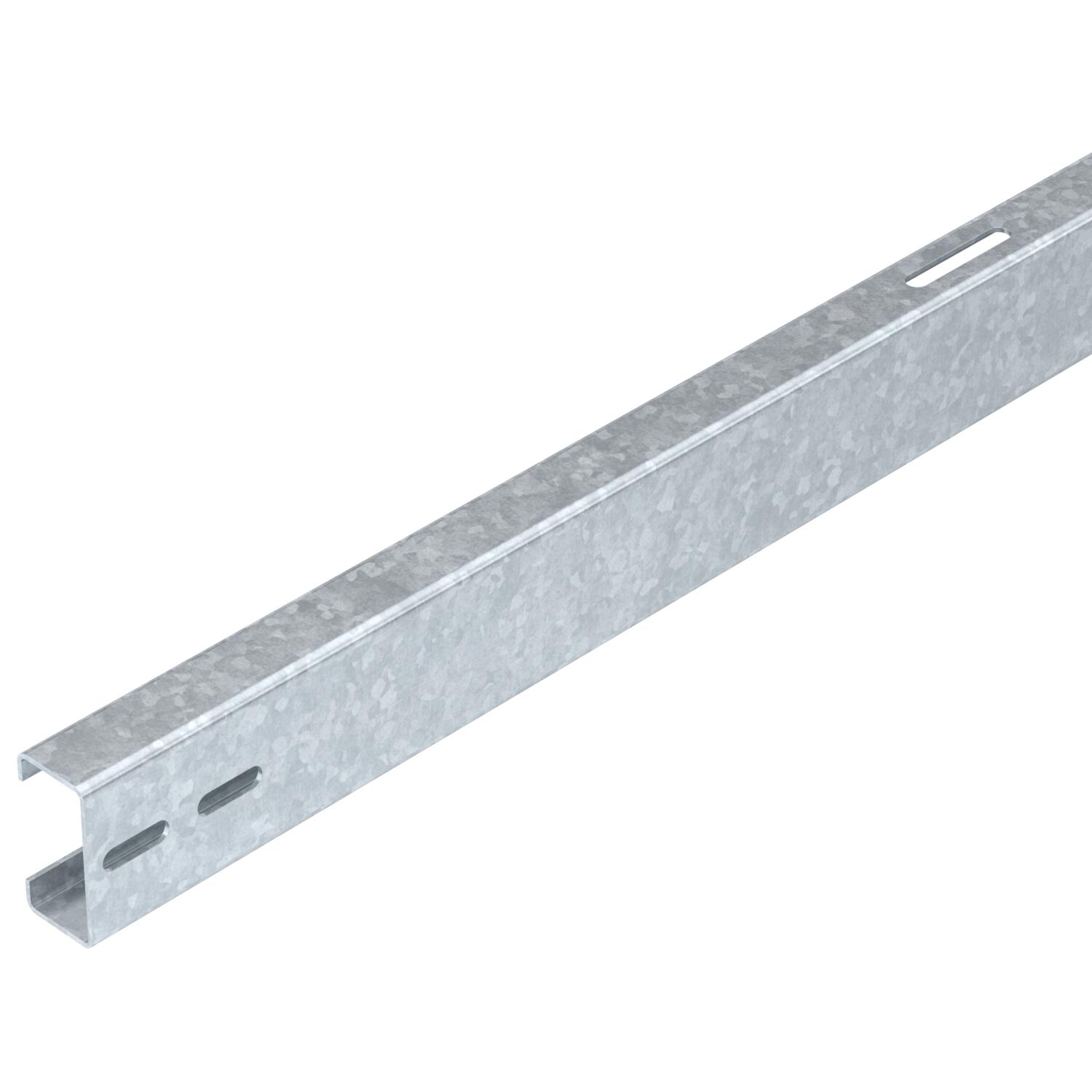

Support profile for PV module mounting, free-standing system

Št. art. 5900500 | EAN 4012197396862

Št. art. / Tip

Dolžina

Opis izdelka

Opis izdelka

Support profile to mount photovoltaic modules on free-standing systems. Mounting of support profile on pre-mounted supports with KV FT cross-connectors. Mounting of the PV modules on the support profile with end and/or connection clamps. Connection of multiple support profiles with LV FT straight connectors and KV FT cross-connectors, screw-on.

Tehnični podatki

Tehnični podatki

Barva	cink

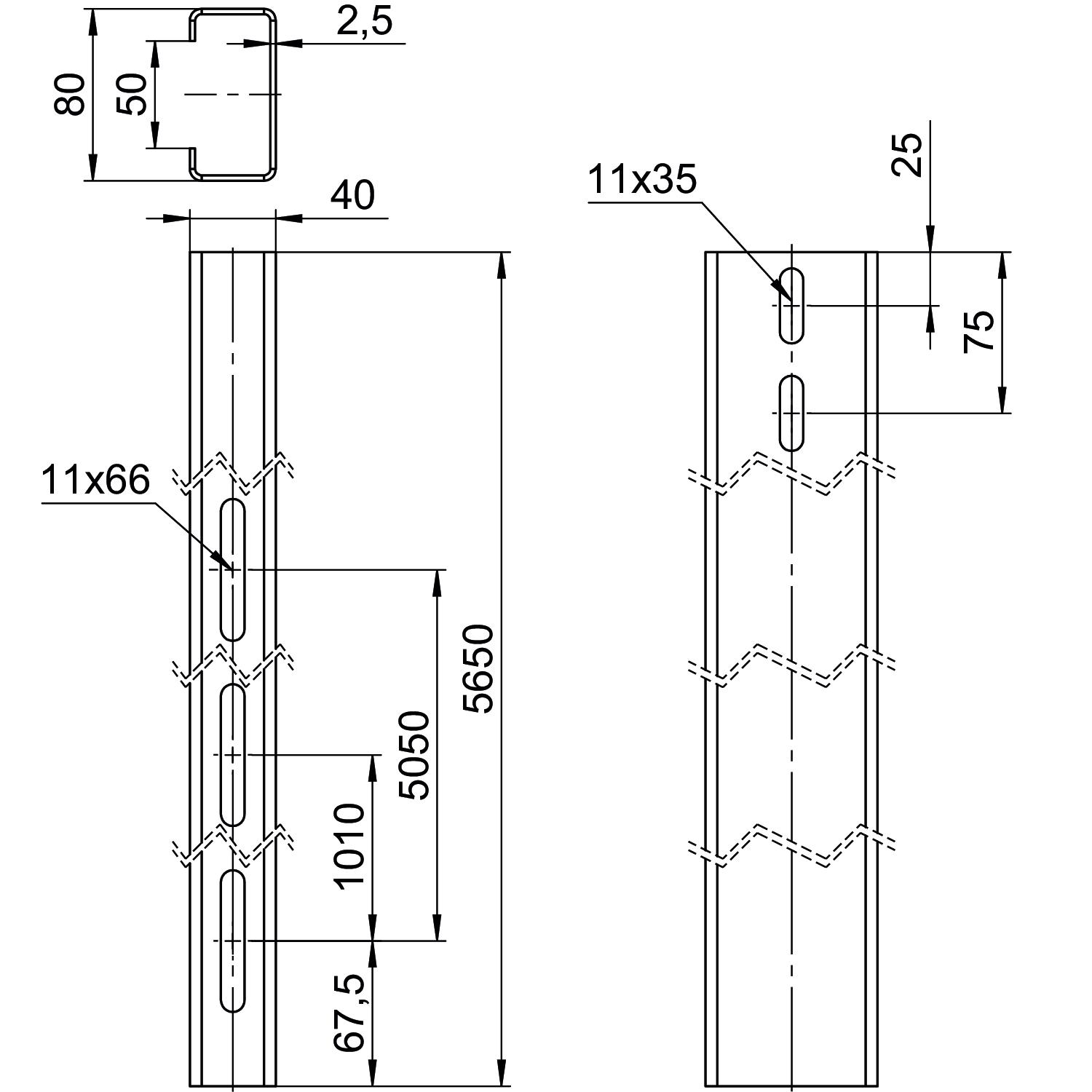

Dimenzija	40x80x5650
Dolžina	5650 mm
Integrirani kabelski kanal	ne
Material	Jeklo
Odpornostni moment Wx	10600 mm³
Odpornostni moment Wy	5200 mm³

Odtis CO2 (GWP) od zibelke do vrat	38,8826 kg CO2e / 1 Kos
Opcijski kabelski kanal	ne
Površina	vroče pocinkano
Širina	40 mm
Širina modula maks.	1000 mm
Širina modula min.	990 mm
Višina	80 mm

Vsi tipi

Vsi tipi

Tip	Dolžina	Št. art.	Količina	Min. prodajna enota
TP 1000 FT	5650 mm	5900500	Kos	1 Kos
TP 1010 FT	5705 mm	5900502	Kos	1 Kos
TP 1020 FT	5760 mm	5900504	Kos	1 Kos
TP 1030 FT	5815 mm	5900506	Kos	1 Kos
TP 1040 FT	5780 mm	5900508	Kos	1 Kos
TP 1050 FT	5925 mm	5900510	Kos	1 Kos
TP 1060 FT	5980 mm	5900512	Kos	1 Kos
TP 1100 FT	5090 mm	5900520	Kos	1 Kos
TP 1140 FT	5270 mm	5900522	Kos	1 Kos
TP 1310 FT	6035 mm	5900530	Kos	1 Kos

Pribor

Sistemski dodatki

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
Pre-mounted supports for PV module mounting, free-standing system	VT 10S FT	5901550	Kos	1 Kos
Pre-mounted supports for PV module mounting, free-standing system	VT 10M FT	5901552	Kos	1 Kos
Pre-mounted supports for PV module mounting, free-standing system	VT 10L FT	5901554	Kos	1 Kos
Pre-mounted supports for PV module mounting, free-standing system	VT 25S FT	5901556	Kos	1 Kos
Pre-mounted supports for PV module mounting, free-standing system	VT 25M FT	5901558	Kos	1 Kos
Pre-mounted supports for PV module mounting, free-standing system	VT 25L FT	5901560	Kos	1 Kos
Pre-mounted supports for PV module mounting, free-standing system	VT 30S FT	5901562	Kos	1 Kos
Pre-mounted supports for PV module mounting, free-standing system	VT 30M FT	5901564	Kos	1 Kos
Pre-mounted supports for PV module mounting, free-standing system	VT 30L FT	5901566	Kos	1 Kos

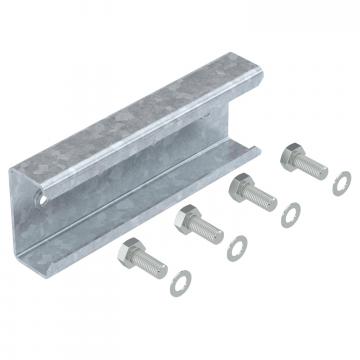

Straight connector for support profiles, free-standing system	LV FT	5901215	Kos	20 Kos

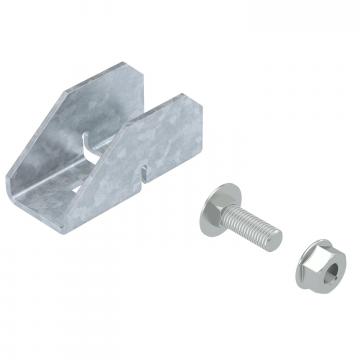

Cross-connector for TP support profiles, free-standing system	KV FT	5901255	Kos	50 Kos

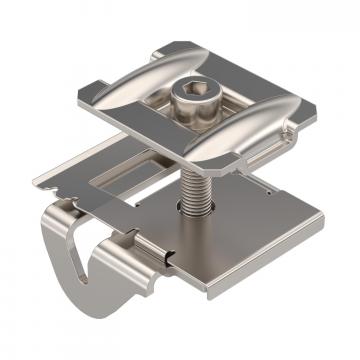

Intermediate clamp for PV module mounting, free-standing system	KLZ 2030 A2	5901050	Kos	50 Kos

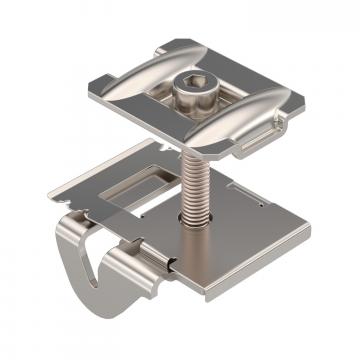

Intermediate clamp for PV module mounting, free-standing system	KLZ 3040 A2	5901054	Kos	50 Kos

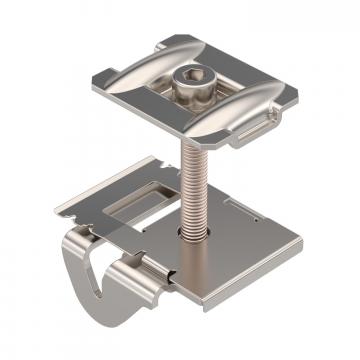

Intermediate clamp for PV module mounting, free-standing system	KLZ 4050 A2	5901058	Kos	50 Kos

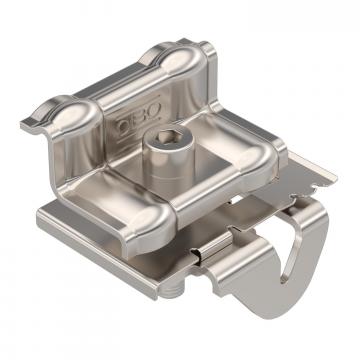

End clamp for PV module mounting, free-standing system	KLE 20 A2	5901070	Kos	50 Kos

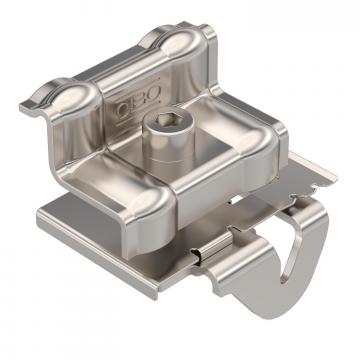

End clamp for PV module mounting, free-standing system	KLE 25 A2	5901072	Kos	50 Kos

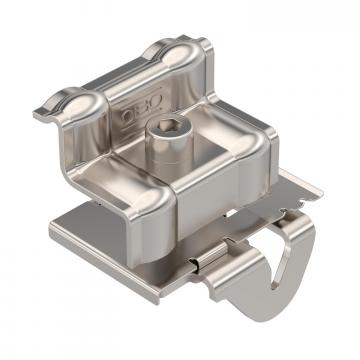

End clamp for PV module mounting, free-standing system	KLE 30 A2	5901074	Kos	50 Kos

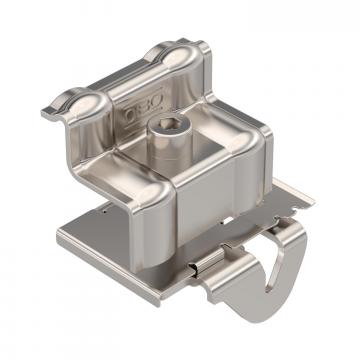

End clamp for PV module mounting, free-standing system	KLE 35 A2	5901076	Kos	50 Kos

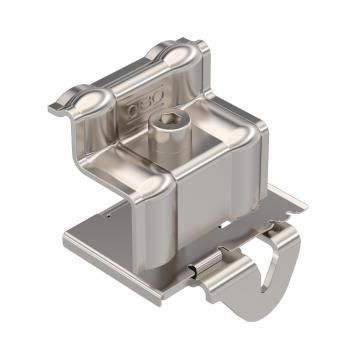

End clamp for PV module mounting, free-standing system	KLE 40 A2	5901078	Kos	50 Kos

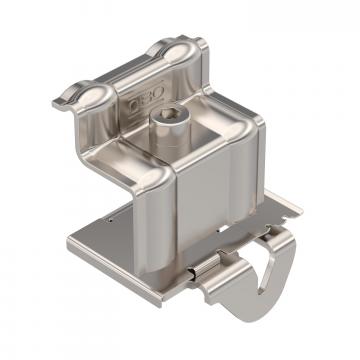

End clamp for PV module mounting, free-standing system	KLE 45 A2	5901080	Kos	50 Kos

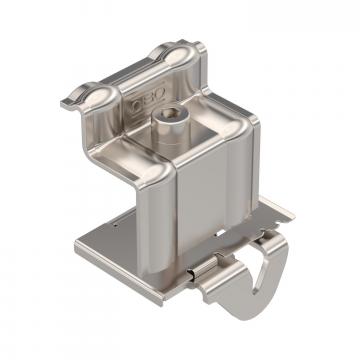

End clamp for PV module mounting, free-standing system	KLE 50 A2	5901082	Kos	50 Kos

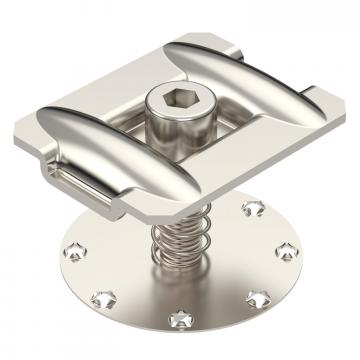

Intermediate clamp with spring for PV module mounting	KLZ F 25 A2	5901062	Kos	50 Kos

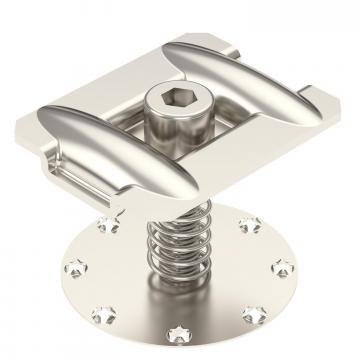

Intermediate clamp with spring for PV module mounting	KLZ F 30 A2	5901063	Kos	50 Kos

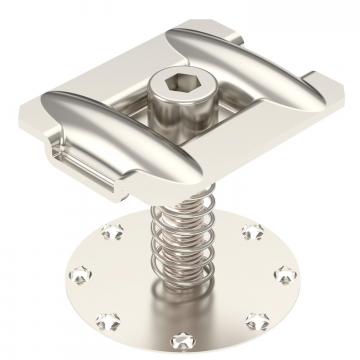

Intermediate clamp with spring for PV module mounting	KLZ F 35 A2	5901064	Kos	50 Kos

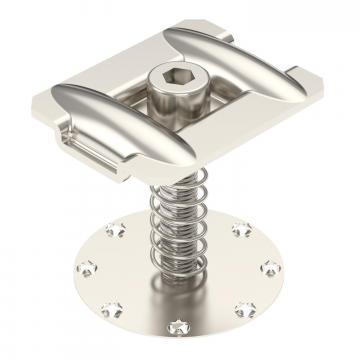

Intermediate clamp with spring for PV module mounting	KLZ F 40 A2	5901065	Kos	50 Kos

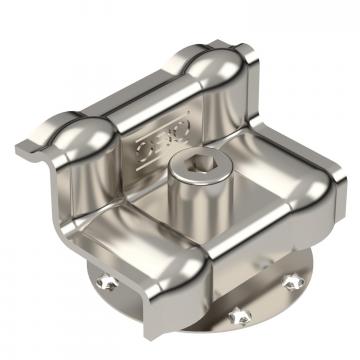

End clamp with spring for PV module mounting	KLE F 25 A2	5901092	Kos	50 Kos

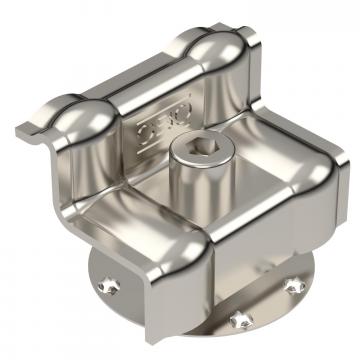

End clamp with spring for PV module mounting	KLE F 30 A2	5901093	Kos	50 Kos

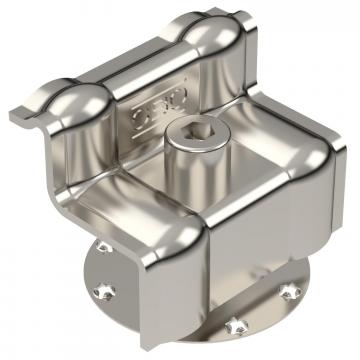

End clamp with spring for PV module mounting	KLE F 35 A2	5901094	Kos	50 Kos

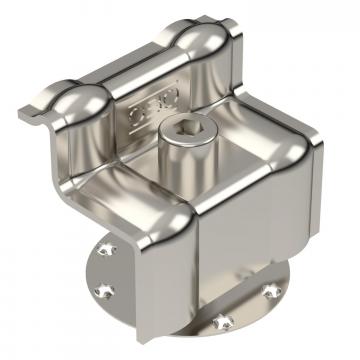

End clamp with spring for PV module mounting	KLE F 40 A2	5901095	Kos	50 Kos
