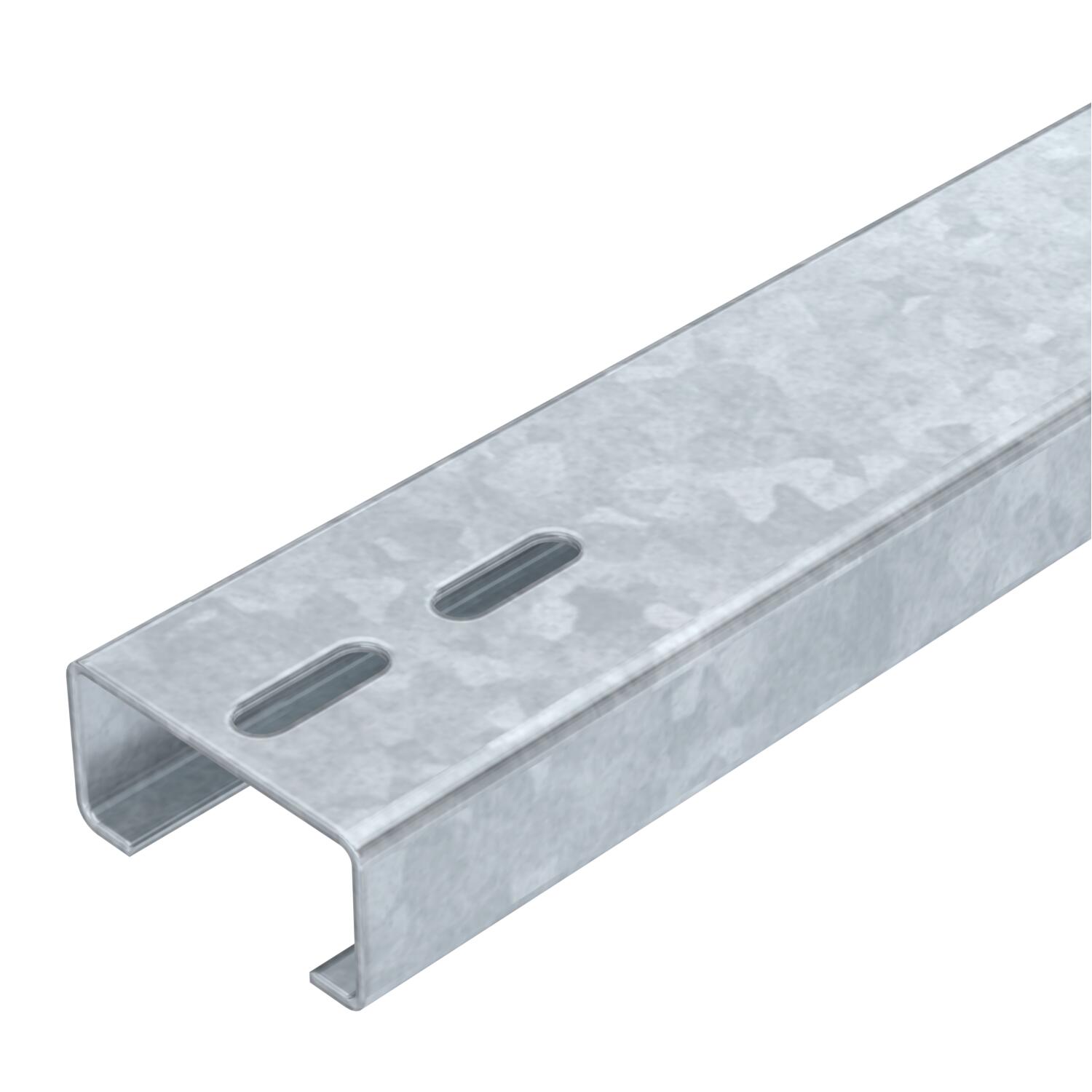

Support profile for PV module mounting, free-standing system

Št. art. 5900580 | EAN 4012197491543

Št. art. / Tip

Dolžina

Opis izdelka

Opis izdelka

Support profile to mount photovoltaic modules on free-standing systems. Mounting of support profile on pre-mounted supports with KV FT cross-connectors. Mounting of the PV modules on the support profile with end and/or connection clamps of type KLE and/or KLZ. Connection of multiple support profiles with LV FT straight connectors and KV FT cross-connectors, screw-on.

Tehnični podatki

Tehnični podatki

Dimenzija	40x80x5020
Integrirani kabelski kanal	ne
Material	Jeklo
Odpornostni moment Wx	10600 mm³

Odpornostni moment Wy	5200 mm³
Opcijski kabelski kanal	ne
Površina	vroče pocinkano

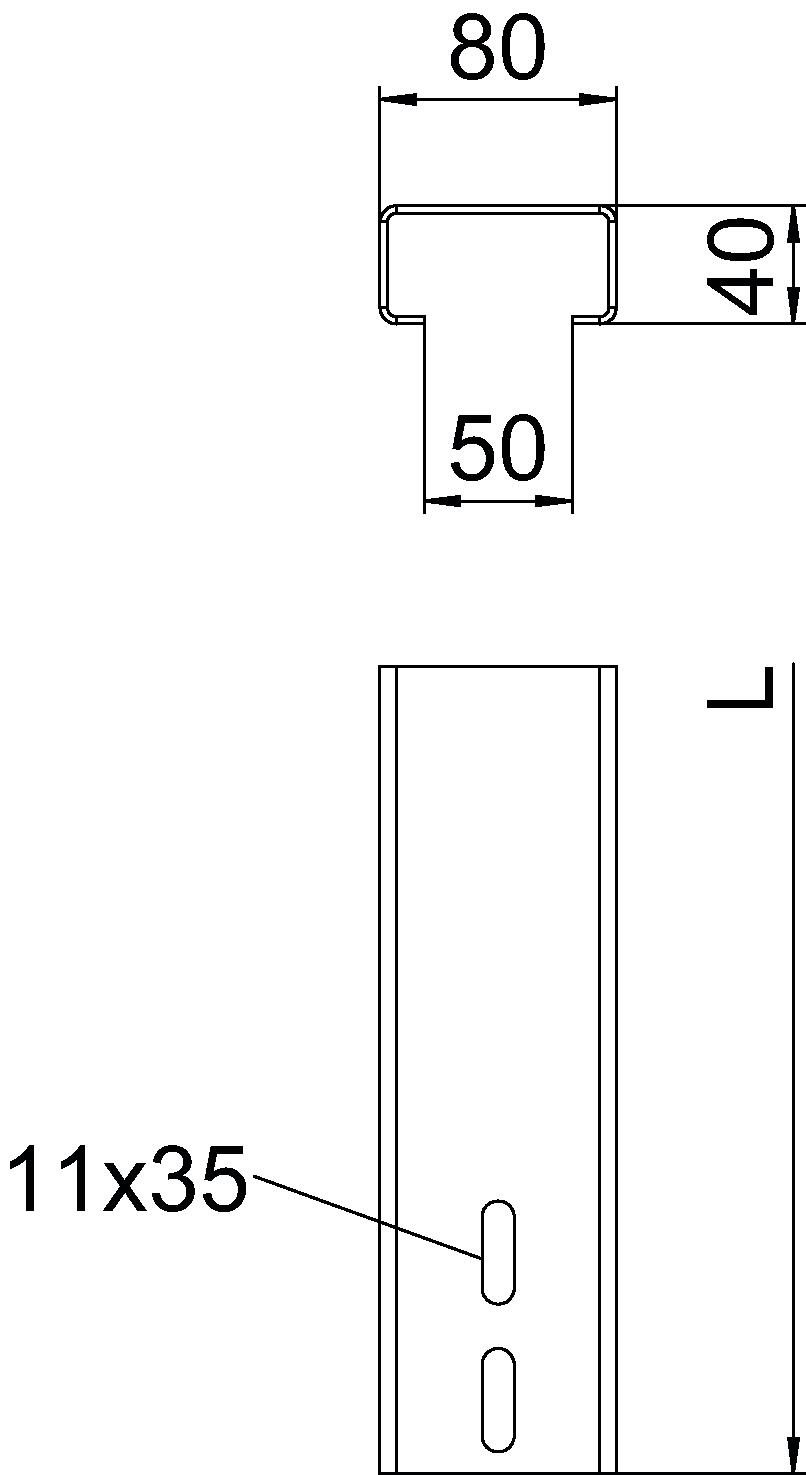

Dimenzije

Dolžina	5020 mm
Širina	40 mm

Višina	80 mm

Vsi tipi

Vsi tipi

Tip	Dolžina	Št. art.	Količina	Min. prodajna enota
TP 1000 FT	5650 mm	5900500	Kos	1 Kos
TP 1010 FT	5705 mm	5900502	Kos	1 Kos
TP 1020 FT	5760 mm	5900504	Kos	1 Kos
TP 1030 FT	5815 mm	5900506	Kos	1 Kos
TP 1040 FT	5780 mm	5900508	Kos	1 Kos
TP 1060 FT	5980 mm	5900512	Kos	1 Kos
TP 1100 FT	5090 mm	5900520	Kos	1 Kos
TP 1140 FT	5270 mm	5900522	Kos	1 Kos
TP 1310 FT	6035 mm	5900530	Kos	1 Kos
TP 5020 FT	5020 mm	5900580	Kos	1 Kos
