Intermediate clamp with spring for PV module mounting 55 | 35
morepic-1 morepic-2 video-1

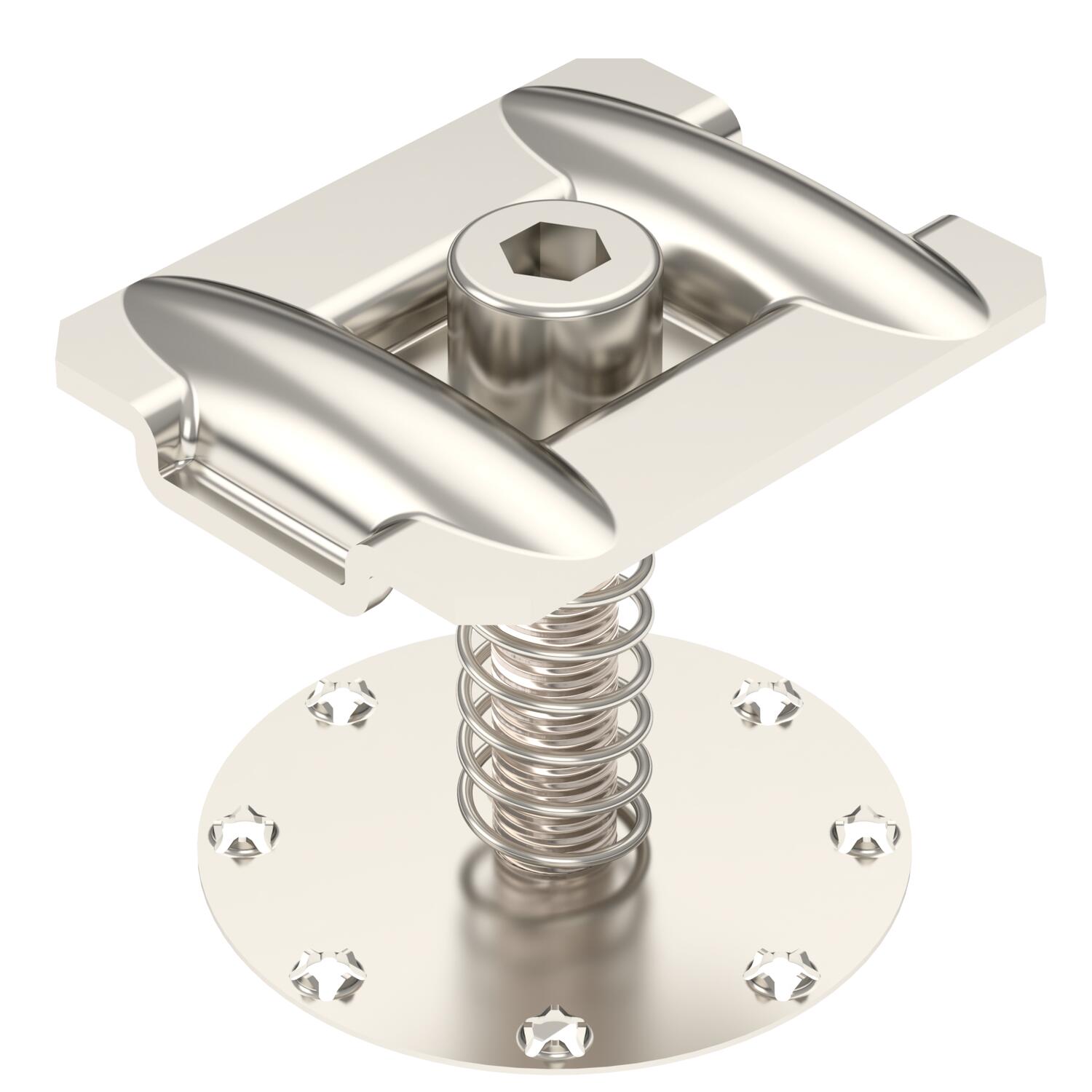

Intermediate clamp with spring for PV module mounting

Št. art. 5901064 | EAN 4012197434304

Opis izdelka
Opis izdelka
Intermediate clamp with spring for fastening photovoltaic modules on support profiles. Suitable for slot width 10 mm. Lockable fastening of the PV module with Allen key size 6.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Tehnični podatki

Tehnični podatki

Barva legirano jeklo
Dimenzija 50x40x58
Globina 50 mm
Izvedba elementa za povezavo in pritrditev sončnih celic Centre clamp
Material Nerjaveče jeklo 1.4301
Nastavljiv da
With module earthing da
Za višino okvira min. 35 mm

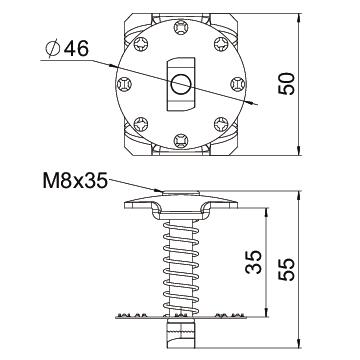

Dimenzije

Širina 46 mm
Višina 55 mm

CO2 odtis (Product Carbon Footprint)

CO₂ Footprint (GWP) 0,4661 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-21T00:00:00.000+0200
Odtis CO2 (GWP) od zibelke do vrat 0,4661 kg CO2e / 1 Kos
Vsi tipi

Vsi tipi

Tip Višina Za višino okvira min. Št. art. Količina Min. prodajna enota
KLZ F 25 A2 46 mm 25 mm 5901062
50 Kos
KLZ F 30 A2 50 mm 30 mm 5901063
50 Kos
KLZ F 35 A2 55 mm 35 mm 5901064
50 Kos
KLZ F 40 A2 60 mm 40 mm 5901065
50 Kos
Prenosi

Prenesi

Prenesi
Prenesi

Prenesi
Prenesi
Prenesi
Prenesi

Za ta proizvod informativna besedila niso na voljo
