Pre-mounted supports for PV module mounting, free-standing system 3110 | 10 | 10

Čas dostave na zahtevo

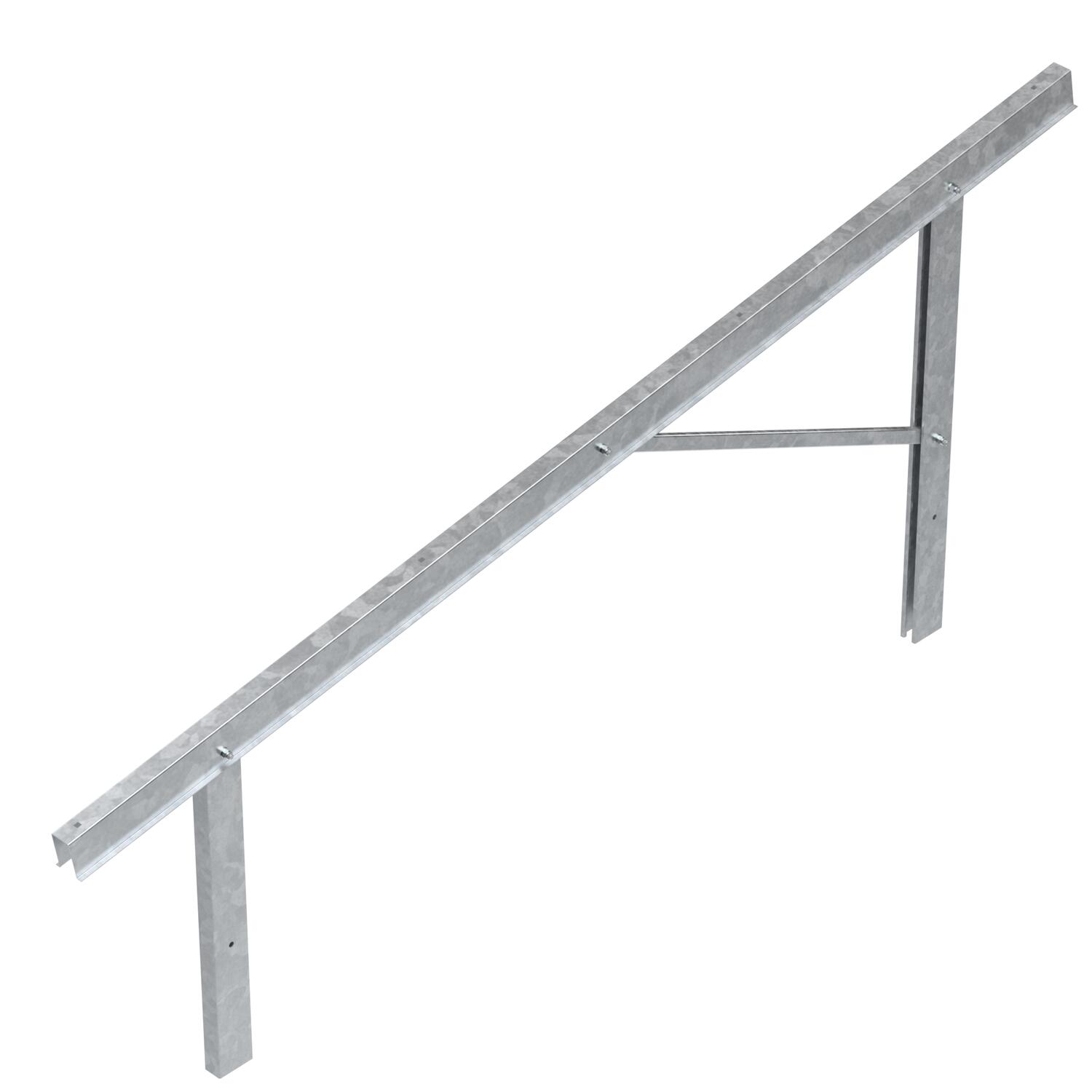

Pre-mounted supports for PV module mounting, free-standing system

Št. art. 5901552 | EAN 4012197394578

Št. art. / Tip

Dolžina

Maks. naklonski kot

Min. naklonski kot

Opis izdelka

Opis izdelka

Pre-mounted support in small, medium or large size to mount free-standing photovoltaic systems in combination with support profiles and end/connection clamps. Mounting with ramming piles in the earth or with stands on concrete foundations.

Tehnični podatki

Tehnični podatki

Barva	cink

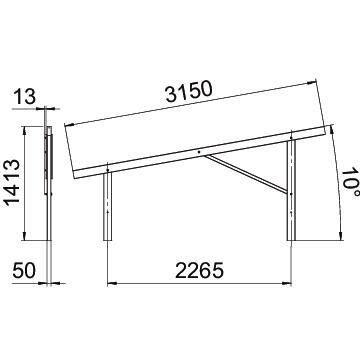

Dimenzija	3110x91x1413
Dolžina	3110 mm
Integrirani kabelski kanal	ne
Kot α	10
Maks. naklonski kot	10 °
Material	Jeklo
Mera H	1,41 mm
Mera I	2,27 mm
Mera L	3,12 mm
Min. naklonski kot	10 °
Module length max.	2100 mm
Module length min.	1850 mm
Nastavljiv	ne

Odtis CO2 (GWP) od zibelke do vrat	73,2789 kg CO2e / 1 Kos
Opcijski kabelski kanal	da
Poravnava	navpično
Površina	vroče pocinkano
Primerno za strešni material	drugo
Pritrdišče	prostostoječe
Širina	91 mm
Širina modula maks.	1310 mm
Širina modula min.	990 mm
Višina	1413 mm
Višina modula maks.	50 mm
Višina modula min.	20 mm
Vrsta namestitve montažnega sistema sončnih celic	Tla
Zahtevan preboj strehe	ne

Vsi tipi

Vsi tipi

Tip	Dolžina	Maks. naklonski kot	Min. naklonski kot	Št. art.	Količina	Min. prodajna enota
VT 10S FT	2689 mm	10 °	10 °	5901550	Kos	1 Kos
VT 10M FT	3110 mm	10 °	10 °	5901552	Kos	1 Kos
VT 10L FT	3489 mm	10 °	10 °	5901554	Kos	1 Kos
VT 25S FT	2517 mm	25 °	25 °	5901556	Kos	1 Kos
VT 25M FT	2898 mm	25 °	25 °	5901558	Kos	1 Kos
VT 25L FT	3236 mm	25 °	25 °	5901560	Kos	1 Kos
VT 30S FT	2732 mm	30 °	30 °	5901562	Kos	1 Kos
VT 30M FT	2779 mm	30 °	30 °	5901564	Kos	1 Kos
VT 30L FT	3104 mm	30 °	30 °	5901566	Kos	1 Kos

Pribor

Sistemski dodatki

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
Ramming pile, free-standing system	RP 1800 FT	5900106	Kos	1 Kos
Ramming pile, free-standing system	RP 2300 FT	5900110	Kos	1 Kos
Stand, free-standing system	SF 400 FT	5900900	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1000 FT	5900500	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1010 FT	5900502	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1020 FT	5900504	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1030 FT	5900506	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1040 FT	5900508	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1050 FT	5900510	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1060 FT	5900512	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1100 FT	5900520	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1140 FT	5900522	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1310 FT	5900530	Kos	1 Kos
Perforated strip for PV free-standing system	LB FT	5901950	Kos	10 Kos
Screw set for perforated strip	SVLB	5901960	Kos	1 Kos
