Čas dostave na zahtevo
Ramming pile, free-standing system
Št. art. 5900106 | EAN 4012197394141
- Opis izdelka
-

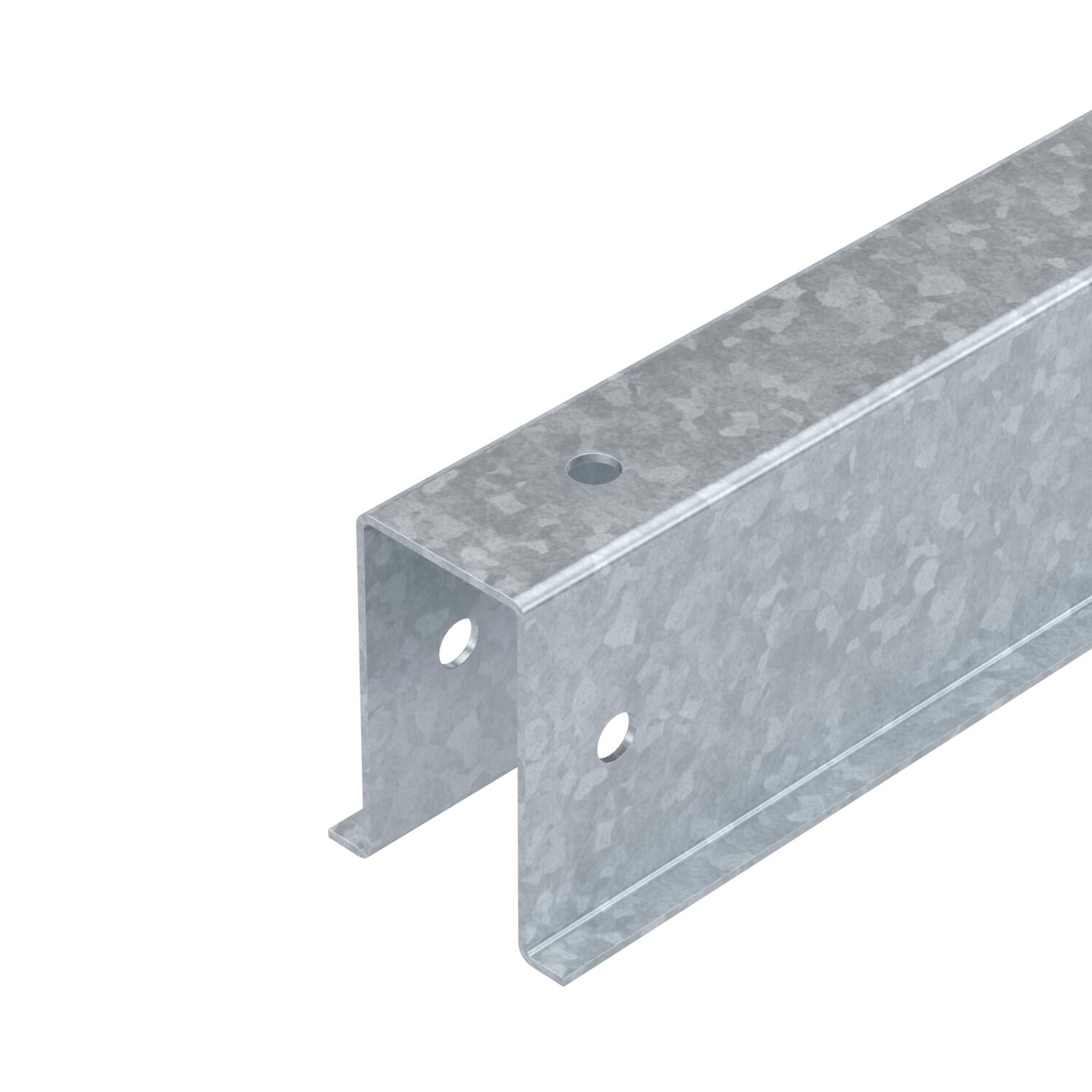

Opis izdelkaRamming pile as a bracket for pre-mounted supports to mount free-standing photovoltaic systems. Mounting in the earth through ramming.
-
- Tehnični podatki
-
Tehnični podatki

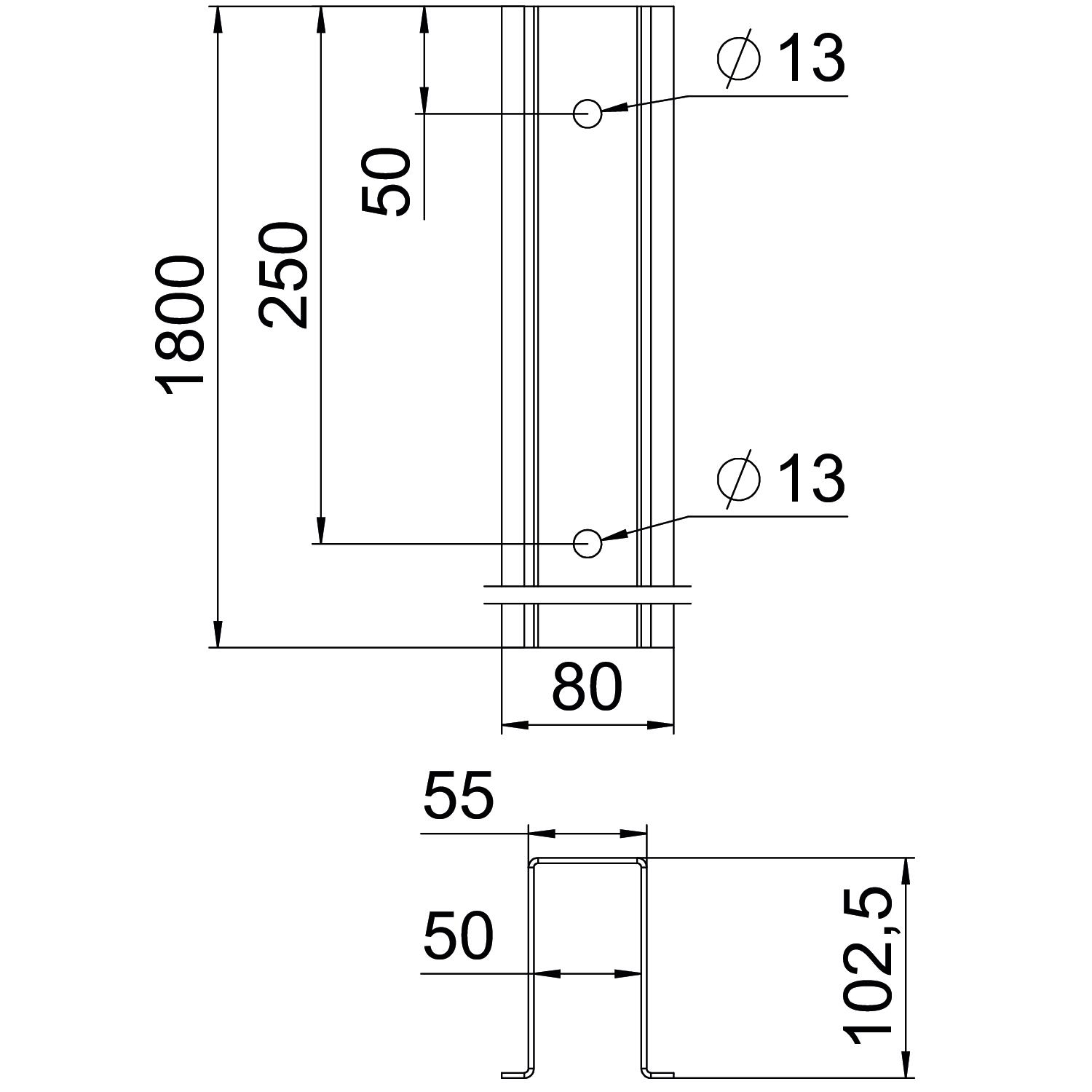

Barva cink Dolžina 1800 mm Integrirani kabelski kanal ne Material Jeklo Odpornostni moment Wx 16950 mm³ Odpornostni moment Wy 11000 mm³ Odtis CO2 (GWP) od zibelke do vrat 19,7251 kg CO2e / 1 Kos Opcijski kabelski kanal ne Površina vroče pocinkano Širina 50 mm Višina 102,5 mm - Vsi tipi
-
Sistemski dodatki
Proizvodi Tip Št. art. Količina Min. prodajna enota
Pre-mounted supports for PV module mounting, free-standing system
VT 10S FT 5901550 1 Kos
Pre-mounted supports for PV module mounting, free-standing system
VT 10M FT 5901552 1 Kos
Pre-mounted supports for PV module mounting, free-standing system
VT 10L FT 5901554 1 Kos
Pre-mounted supports for PV module mounting, free-standing system
VT 25S FT 5901556 1 Kos
Pre-mounted supports for PV module mounting, free-standing system
VT 25M FT 5901558 1 Kos
Pre-mounted supports for PV module mounting, free-standing system
VT 25L FT 5901560 1 Kos
Pre-mounted supports for PV module mounting, free-standing system
VT 30S FT 5901562 1 Kos
Pre-mounted supports for PV module mounting, free-standing system
VT 30M FT 5901564 1 Kos
Pre-mounted supports for PV module mounting, free-standing system
VT 30L FT 5901566 1 Kos Montažni pribor
Proizvodi Tip Št. art. Količina Min. prodajna enota
Hook-head screw A4
MS50HB M12x30 A4 1148276 50 Kos
Hook-head screw A4
MS50HB M12x60 A4 1148280 25 Kos - Prenosi
-
Podatkovni list RP 1800 FT / 5900106 , 0.17MB , pdfNavodila za montažo PV-Montagesysteme Magic PV Field , 3.72MB , pdf
