Ramming pile, free-standing system
Št. art. 5900110 | EAN 4012197394165
- Opis izdelka
-

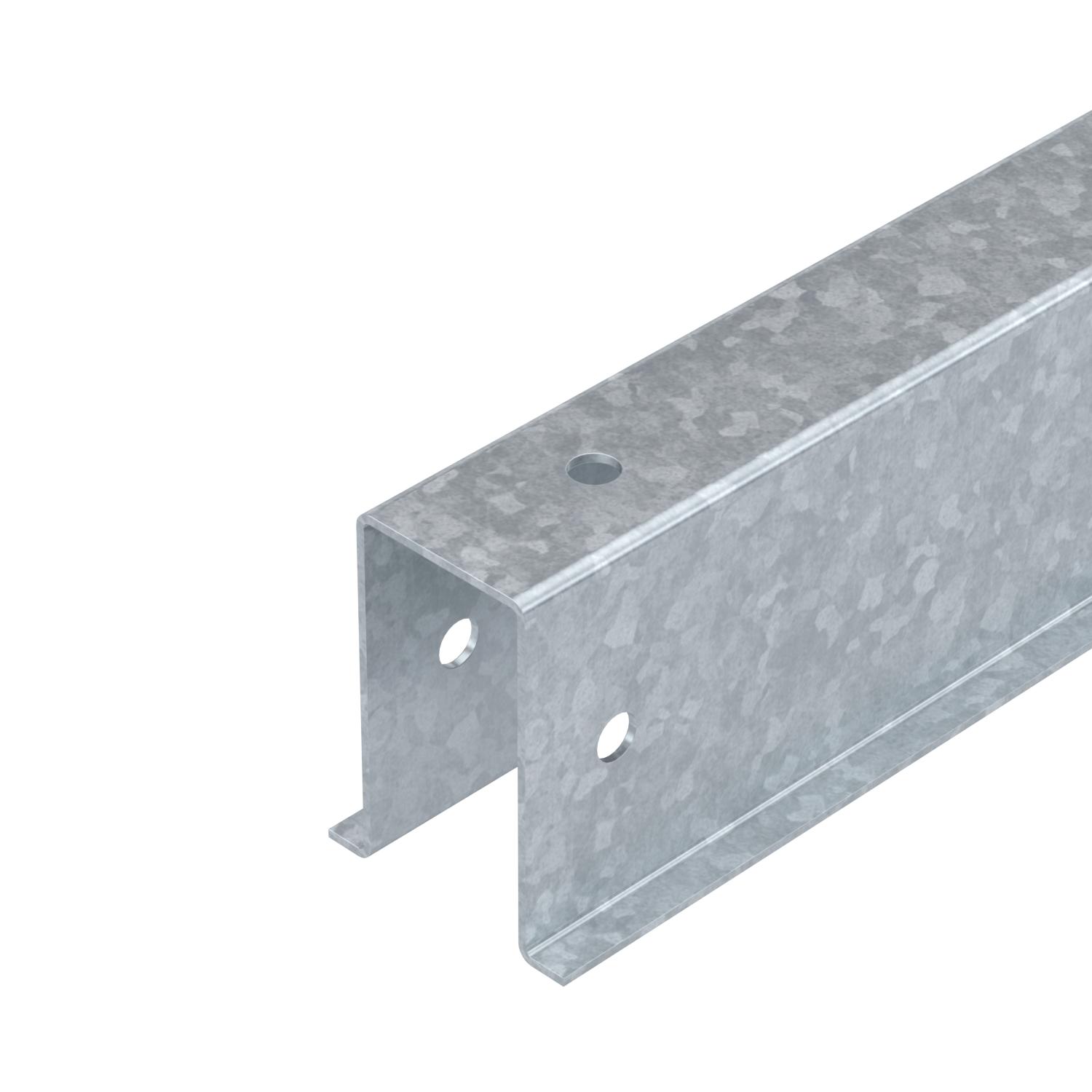

Opis izdelkaRamming pile as a bracket for pre-mounted supports to mount free-standing photovoltaic systems. Mounting in the earth through ramming.
-
- Tehnični podatki
-
Tehnični podatki
Barva cink Integrirani kabelski kanal ne Material Jeklo Odpornostni moment Wx 16950 mm³ Odpornostni moment Wy 11000 mm³ Opcijski kabelski kanal ne Površina vroče pocinkano Dimenzije

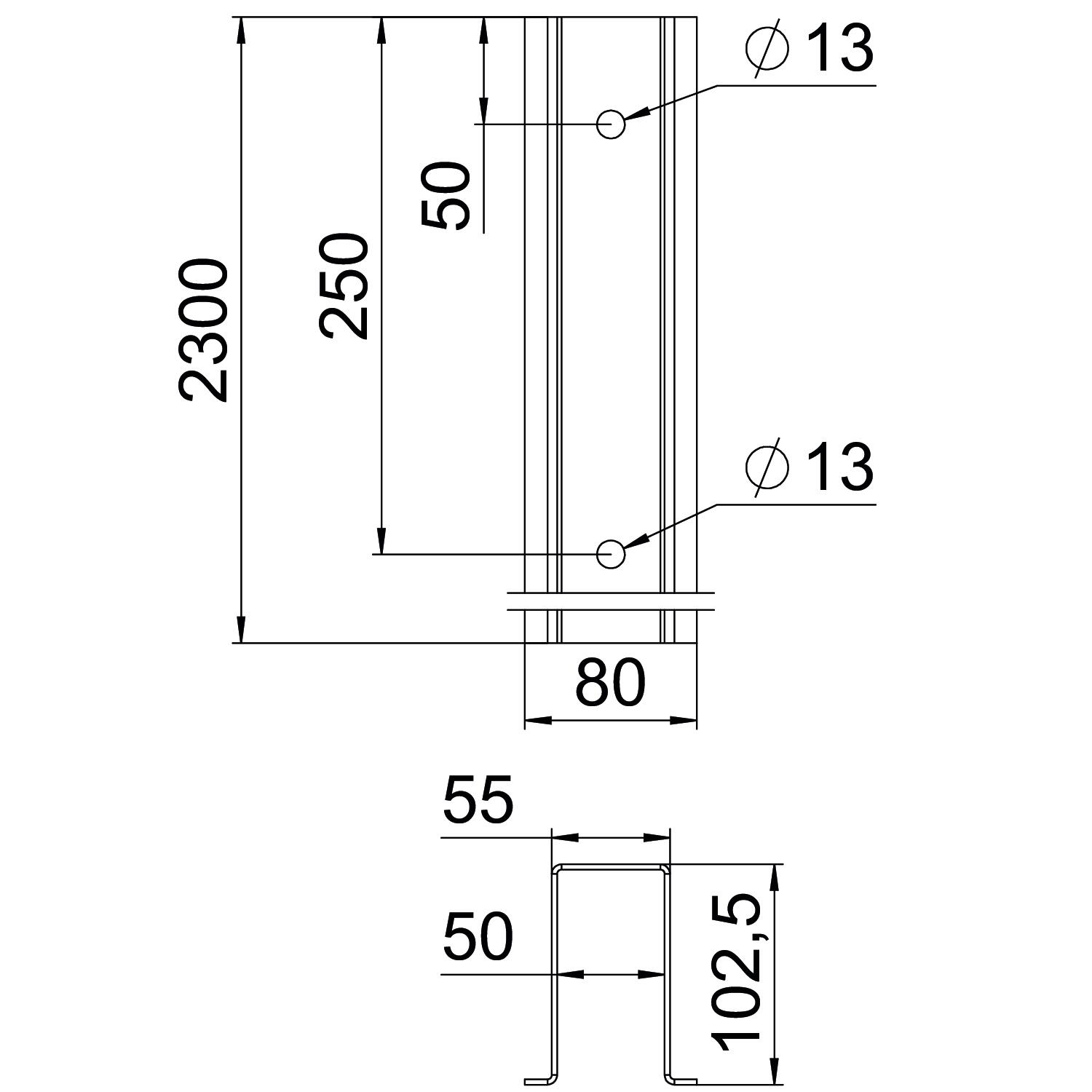

Dolžina 2300 mm Širina 50 mm Višina 102,5 mm CO2 odtis (Product Carbon Footprint)
CO₂ Footprint (GWP) 25,2041 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 Odtis CO2 (GWP) od zibelke do vrat 25,2041 kg CO2e / 1 Kos - Vsi tipi
-
Sistemski dodatki
Proizvodi Tip Št. art. Količina Min. prodajna enota
Pre-mounted supports for PV module mounting, free-standing system
VT 10S FT 5901550 1 Kos
Pre-mounted supports for PV module mounting, free-standing system
VT 10M FT 5901552 1 Kos
Pre-mounted supports for PV module mounting, free-standing system
VT 10L FT 5901554 1 Kos
Pre-mounted supports for PV module mounting, free-standing system
VT 25S FT 5901556 1 Kos
Pre-mounted supports for PV module mounting, free-standing system
VT 25M FT 5901558 1 Kos
Pre-mounted supports for PV module mounting, free-standing system
VT 25L FT 5901560 1 Kos
Pre-mounted supports for PV module mounting, free-standing system
VT 30S FT 5901562 1 Kos
Pre-mounted supports for PV module mounting, free-standing system
VT 30M FT 5901564 1 Kos
Pre-mounted supports for PV module mounting, free-standing system
VT 30L FT 5901566 1 Kos Montažni pribor
Proizvodi Tip Št. art. Količina Min. prodajna enota
Hook-head screw A4
MS50HB M12x30 A4 1148276 50 Kos
Hook-head screw A4
MS50HB M12x60 A4 1148280 25 Kos - Prenosi
-
Podatkovni list RP 2300 FT / 5900110 , 0.17MB , pdfNavodila za montažo PV mounting systems Magic PV Field , 3.72MB , pdf
