End clamp for PV module mounting, free-standing system 70 | 30

Čas dostave na zahtevo

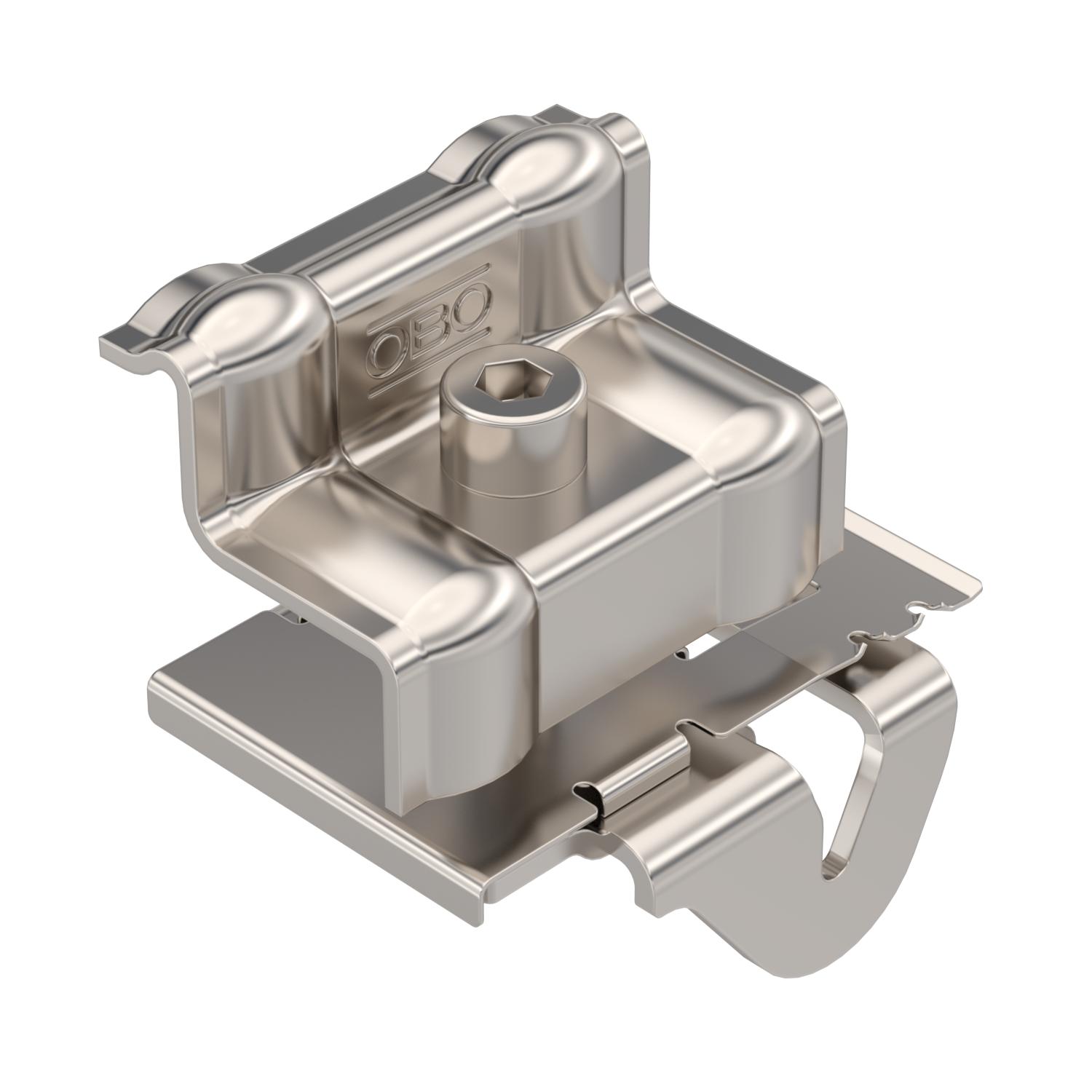

End clamp for PV module mounting, free-standing system

Št. art. 5901074 | EAN 4012197390921

Št. art. / Tip

Višina

Za višino okvira min.

Opis izdelka

Opis izdelka

End clamp for fastening photovoltaic modules on support profiles of free-standing systems. Lockable pre-fastening of the module frames on the support profile. Suitable for slot width 10 mm. Lockable fastening of the PV module with Torx 30 wrench.

Tehnični podatki

Tehnični podatki

Barva	legirano jeklo
Dimenzija	-
Dimenzija	65x70x54
Globina	68,5 mm
Izvedba elementa za povezavo in pritrditev sončnih celic	End terminal

Material	Nerjaveče jeklo 1.4301
Nastavljiv	ne
With module earthing	ne
Za višino okvira min.	30 mm

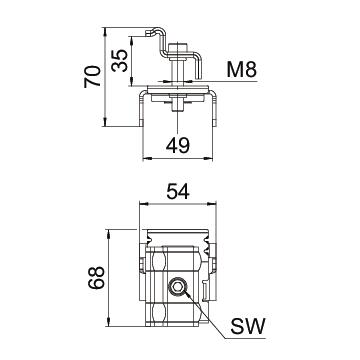

Dimenzije

Širina	54 mm

Višina	70 mm

CO2 odtis (Product Carbon Footprint)

CO₂ Footprint (GWP)	0,8653 kg CO₂e
Declared Unit (LCA)	Units
Declared Unit Quantity (LCA)	1

Determination date of CO2 value	2025-05-21T00:00:00.000+0200
Odtis CO2 (GWP) od zibelke do vrat	0,8653 kg CO2e / 1 Kos

Vsi tipi

Vsi tipi

Tip	Višina	Za višino okvira min.	Št. art.	Količina	Min. prodajna enota
KLE 20 A2	60 mm	20 mm	5901070	Kos	50 Kos
KLE 25 A2	65 mm	25 mm	5901072	Kos	50 Kos
KLE 30 A2	70 mm	30 mm	5901074	Kos	50 Kos
KLE 35 A2	75 mm	35 mm	5901076	Kos	50 Kos
KLE 40 A2	80 mm	40 mm	5901078	Kos	50 Kos
KLE 45 A2	85 mm	45 mm	5901080	Kos	50 Kos
KLE 50 A2	90 mm	50 mm	5901082	Kos	50 Kos

Pribor

Sistemski dodatki

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
Support profile for PV module mounting, free-standing system	TP 1000 FT	5900500	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1010 FT	5900502	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1020 FT	5900504	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1030 FT	5900506	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1040 FT	5900508	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1050 FT	5900510	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1060 FT	5900512	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1100 FT	5900520	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1140 FT	5900522	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1310 FT	5900530	Kos	1 Kos
