Intermediate clamp for PV module mounting, free-standing system 65,5 | 20

Čas dostave na zahtevo

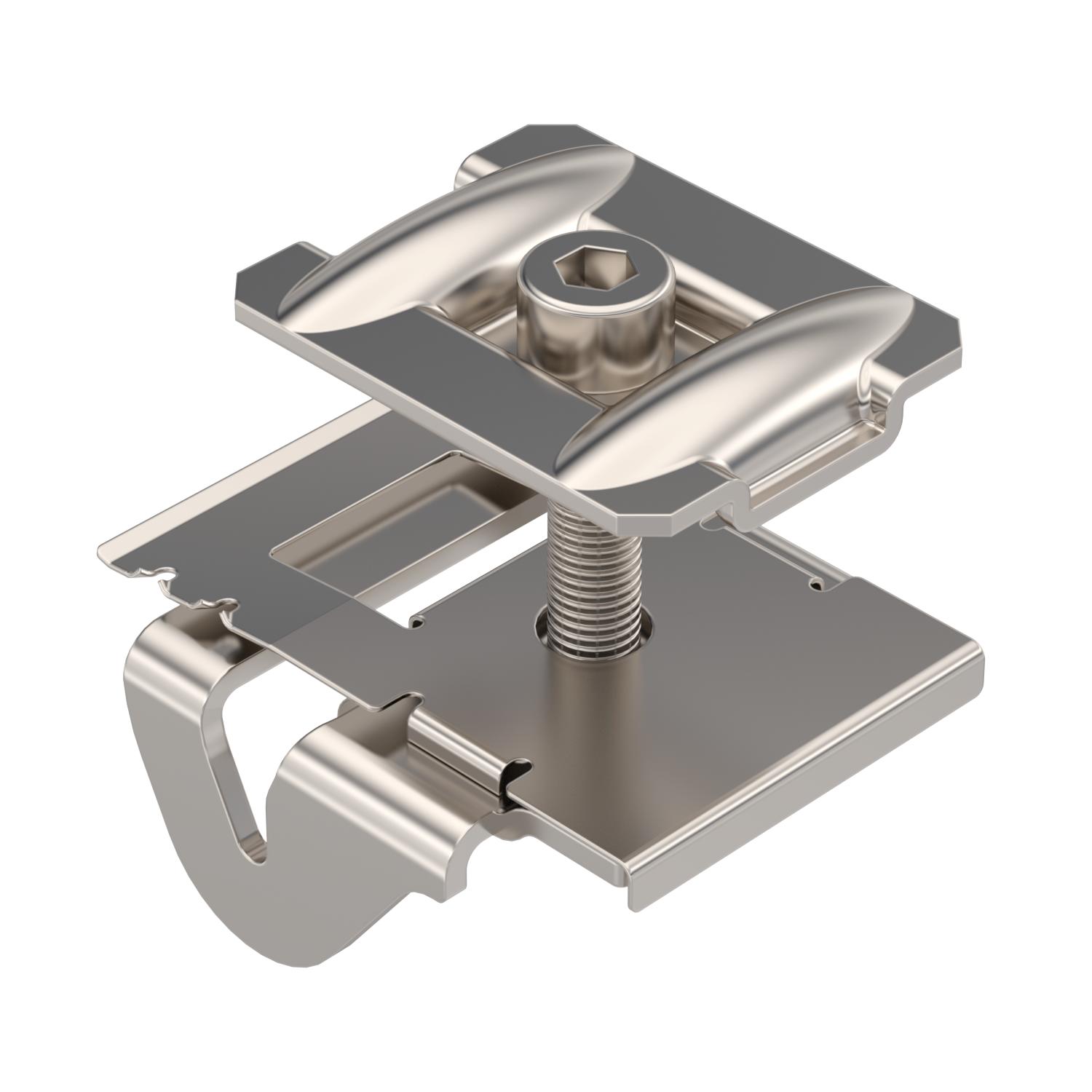

Intermediate clamp for PV module mounting, free-standing system

Št. art. 5901050 | EAN 4012197394387

Št. art. / Tip

Višina

Za višino okvira min.

Opis izdelka

Opis izdelka

Connection clamp for fastening photovoltaic modules on support profiles of free-standing systems. Lockable pre-fastening of the module frames on the support profile. Suitable for slot width 10 mm. Lockable fastening of the PV module with Torx 30 wrench.

Tehnični podatki

Tehnični podatki

Barva	legirano jeklo

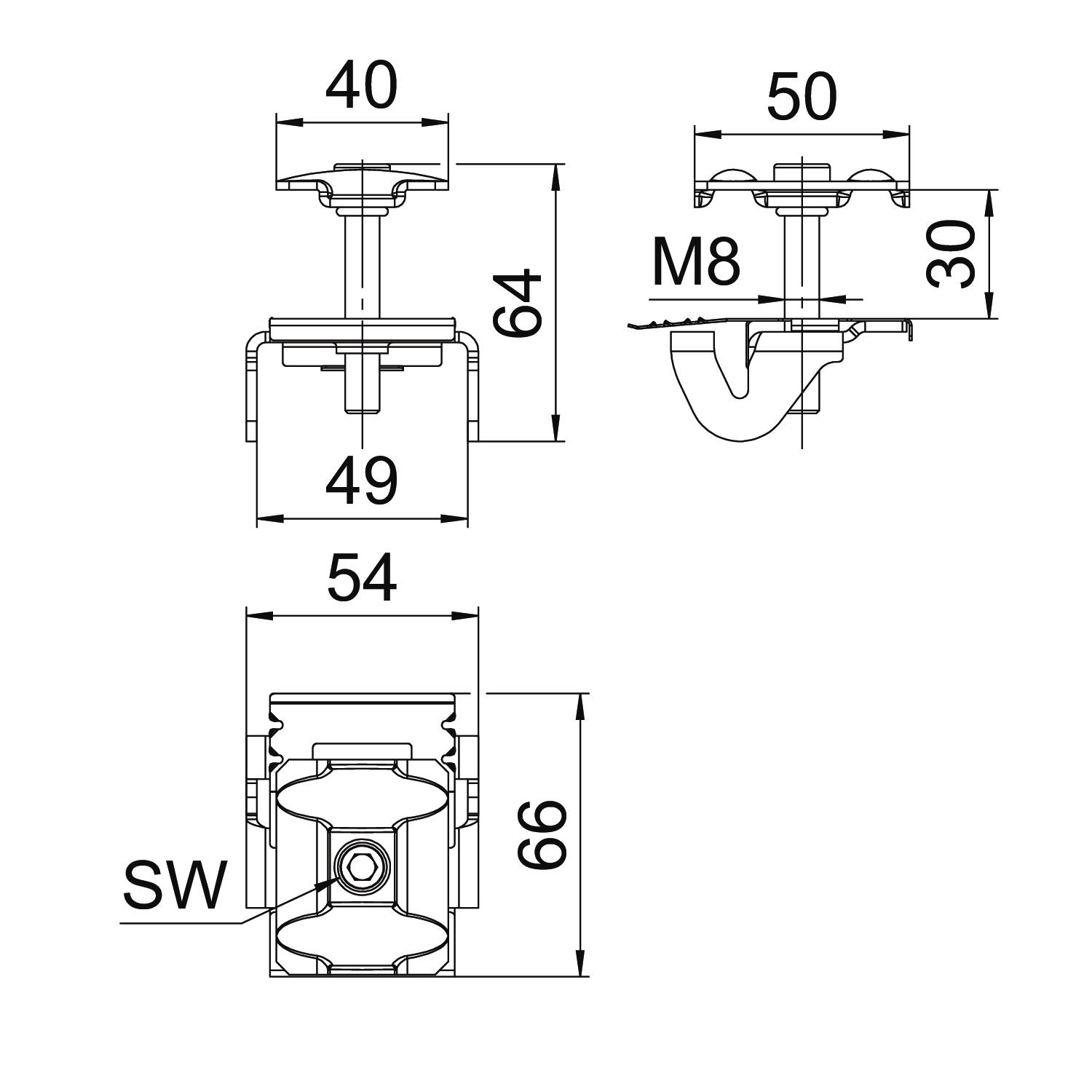

Dimenzija	63x54x66
Globina	66 mm
Izvedba elementa za povezavo in pritrditev sončnih celic	Centre clamp
Material	Nerjaveče jeklo 1.4301
Nastavljiv	da

Odtis CO2 (GWP) od zibelke do vrat	0,7108 kg CO2e / 1 Kos
Širina	54 mm
Višina	65,5 mm
With module earthing	ne
Za višino okvira maks.	30 mm
Za višino okvira min.	20 mm

Vsi tipi

Vsi tipi

Tip	Višina	Za višino okvira min.	Št. art.	Količina	Min. prodajna enota
KLZ 2030 A2	65,5 mm	20 mm	5901050	Kos	50 Kos
KLZ 3040 A2	74,5 mm	30 mm	5901054	Kos	50 Kos
KLZ 4050 A2	84,5 mm	40 mm	5901058	Kos	50 Kos

Pribor

Sistemski dodatki

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
Support profile for PV module mounting, free-standing system	TP 1000 FT	5900500	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1010 FT	5900502	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1020 FT	5900504	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1030 FT	5900506	Kos	1 Kos

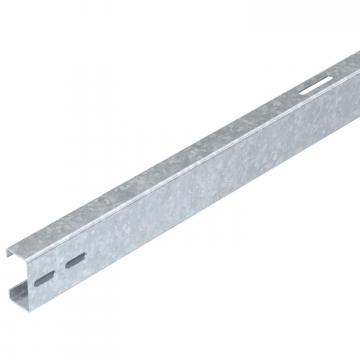

Support profile for PV module mounting, free-standing system	TP 1040 FT	5900508	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1050 FT	5900510	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1060 FT	5900512	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1100 FT	5900520	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1140 FT	5900522	Kos	1 Kos
Support profile for PV module mounting, free-standing system	TP 1310 FT	5900530	Kos	1 Kos
