Čas dostave na zahtevo
Straight connector for support profiles, free-standing system
Št. art. 5901215 | EAN 4012197394509
- Opis izdelka
-
Opis izdelkaStraight connector to connect support profiles for free-standing photovoltaic systems. Fastening with pre-installed M10 screw, screw-on with Torx 30 wrench.
-
- Tehnični podatki
-
Tehnični podatki

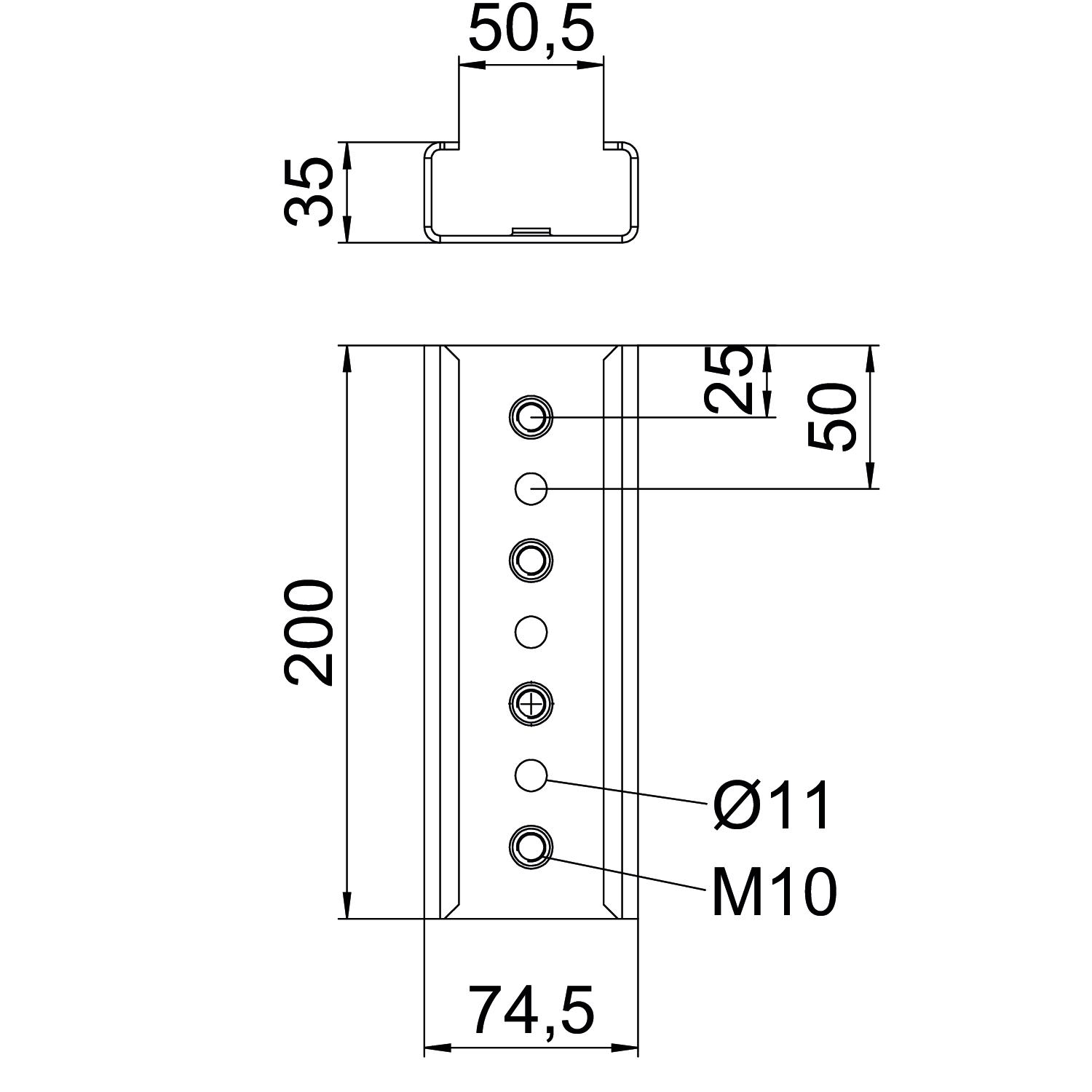

Barva cink Dimenzija 35x74,5x200 Globina 35 mm Izvedba elementa za povezavo in pritrditev sončnih celic Straight connector Material Jeklo Nastavljiv ne Površina vroče pocinkano With module earthing ne Dimenzije
Širina 200 mm Višina 74,5 mm CO2 odtis (Product Carbon Footprint)
CO₂ Footprint (GWP) 2,0017 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 Odtis CO2 (GWP) od zibelke do vrat 2,0017 kg CO2e / 1 Kos - Vsi tipi
-
Sistemski dodatki
Proizvodi Tip Št. art. Količina Min. prodajna enota
Support profile for PV module mounting, free-standing system
TP 1000 FT 5900500 1 Kos
Support profile for PV module mounting, free-standing system
TP 1010 FT 5900502 1 Kos
Support profile for PV module mounting, free-standing system
TP 1020 FT 5900504 1 Kos
Support profile for PV module mounting, free-standing system
TP 1030 FT 5900506 1 Kos
Support profile for PV module mounting, free-standing system
TP 1040 FT 5900508 1 Kos
Support profile for PV module mounting, free-standing system
TP 1050 FT 5900510 1 Kos
Support profile for PV module mounting, free-standing system
TP 1060 FT 5900512 1 Kos
Support profile for PV module mounting, free-standing system
TP 1100 FT 5900520 1 Kos
Support profile for PV module mounting, free-standing system
TP 1140 FT 5900522 1 Kos
Support profile for PV module mounting, free-standing system
TP 1310 FT 5900530 1 Kos - Prenosi
-
Podatkovni list LV FT / 5901215 , 0.18MB , pdfNavodila za montažo PV mounting systems Magic PV Field , 3.72MB , pdfZa ta proizvod informativna besedila niso na voljo
