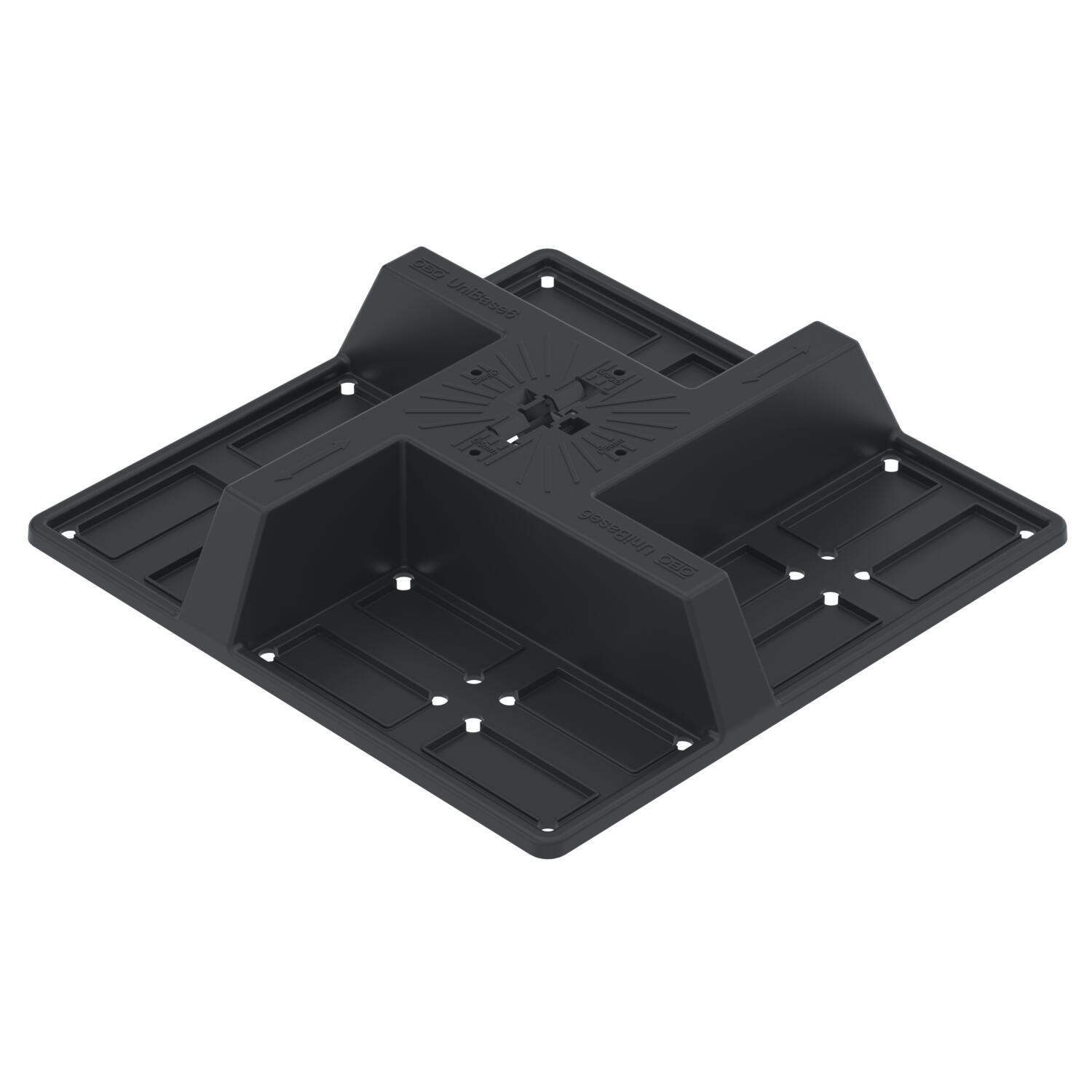

UniBase 6 universal stand

Name: UniBase 6 universal stand
Brand: OBO Bettermann
SKU: 5403391

Št. art. 5403391 | EAN 4012197371753

Opis izdelka

Opis izdelka

Universal stand for ballasting with standard blocks up to a dimension of 200 x 100 x 100 mm. Can be used on flat roofs, e.g. for mounting PV mounting systems or for cable routing with cable trays or with mesh cable trays in conjunction with roof cable holder 165 MBG HGRM. Blocks not contained in the scope of delivery.

Tehnični podatki

Tehnični podatki

Carrying depth for ballasting max.	200 mm
Carrying height for ballasting max.	60 mm
Carrying width for ballasting max.	100 mm

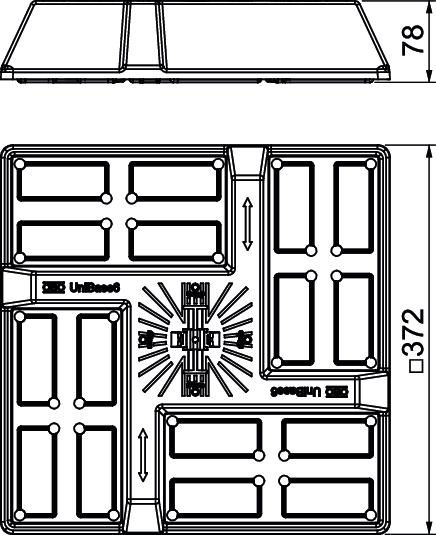

Dolžina	372 mm
Izvedba	Podnožje

Number of carrying surfaces for ballasting	4 St.
Prileg	5 mm
Širina	372 mm
Teža	0,81 kg
Višina	78 mm

Vsi tipi

Vsi tipi

Tip		Št. art.	Količina	Min. prodajna enota
UniBase 6		5403391	Kos	16 Kos

Pribor

Sistemski dodatki

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
Building protection mat, flat roof	UniBase BSM	5403402	Kos	16 Kos
Building protection mat, flat roof, aluminium-lined	UniBase BSM ALU	5403404	Kos	16 Kos
Adapter for TP 45 support profile	UniBase TMP	5403397	Kos	16 Kos
