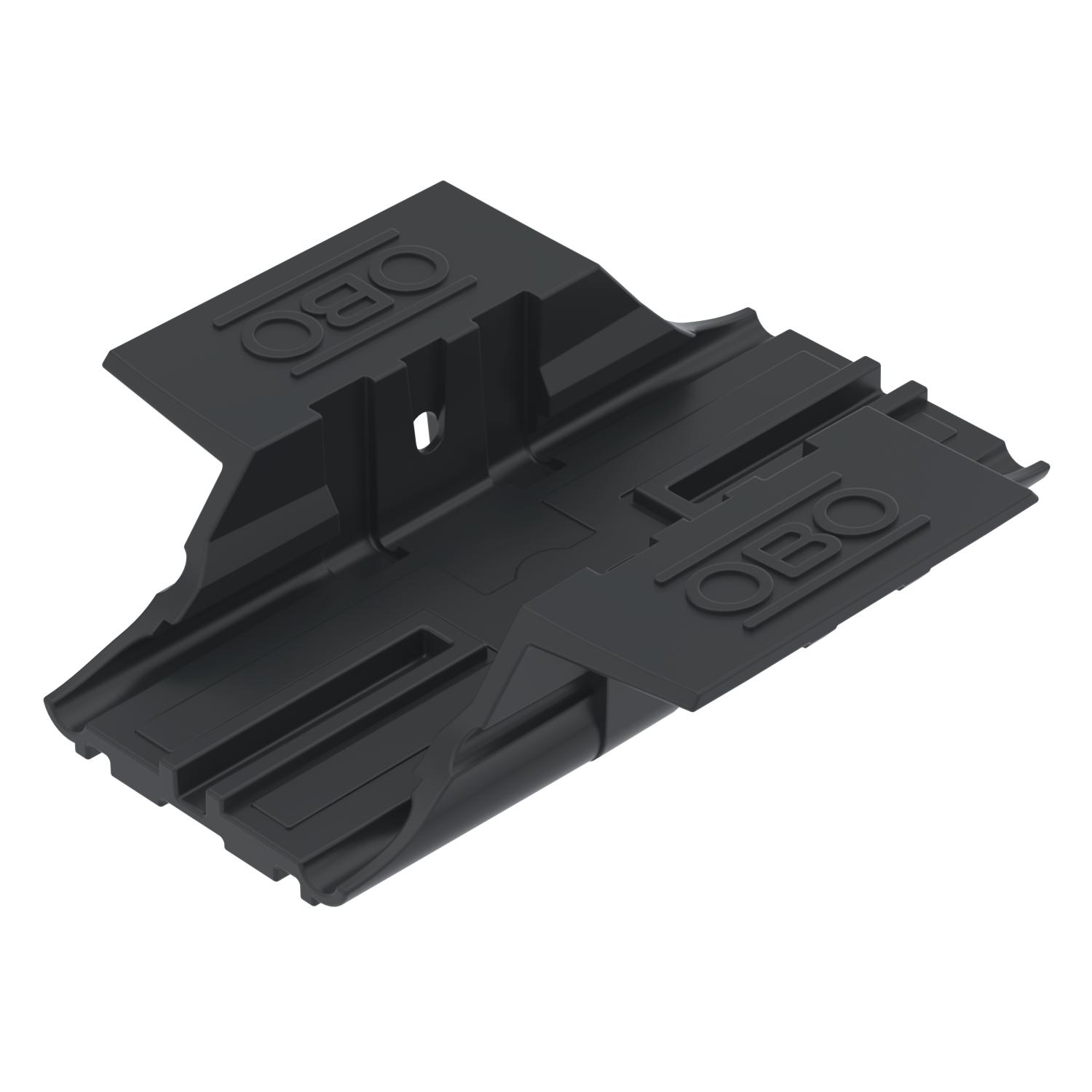

Adapter for TP 45 support profile
Št. art. 5403397 | EAN 4012197368241
- Opis izdelka
-
Opis izdelkaAdapter for TP 45 support profile, for mounting on UniBase universal stand. Toolless mounting through snapping. With side holes for optional screwing and with base perforation for locking screw. Toolless mounting and dismantling of the support profile possible. With non-slip support surface. Depending on the installation, an additional screw-in fuse is possible with the UniBase.
-
- Tehnični podatki
-
Tehnični podatki
Barva črna Material Akrilnitril-stirol-akrilester Nadomestni del ne Pribor da Dimenzije

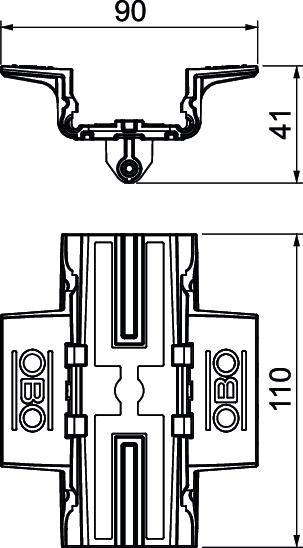

Dolžina 110 mm Širina 90 mm Višina 42 mm CO2 odtis (Product Carbon Footprint)
CO₂ Footprint (GWP) 0,0148 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 Odtis CO2 (GWP) od zibelke do vrat 0,0148 kg CO2e / 1 Kos - Vsi tipi
- Prenosi
-
Podatkovni list UniBase TMP / 5403397 , 0.14MB , pdfREACH Izjava o skladnosti UniBase TMP / 5403397 , 0.12MB , pdfRoHS Izjava o skladnosti UniBase TMP / 5403397 , 0.13MB , pdfNavodila za montažo PV mounting systems Magic PV Flat Glue , 3.57MB , pdfNavodila za montažo PV mounting systems Magic PV Flat Pro , 5.26MB , pdf
