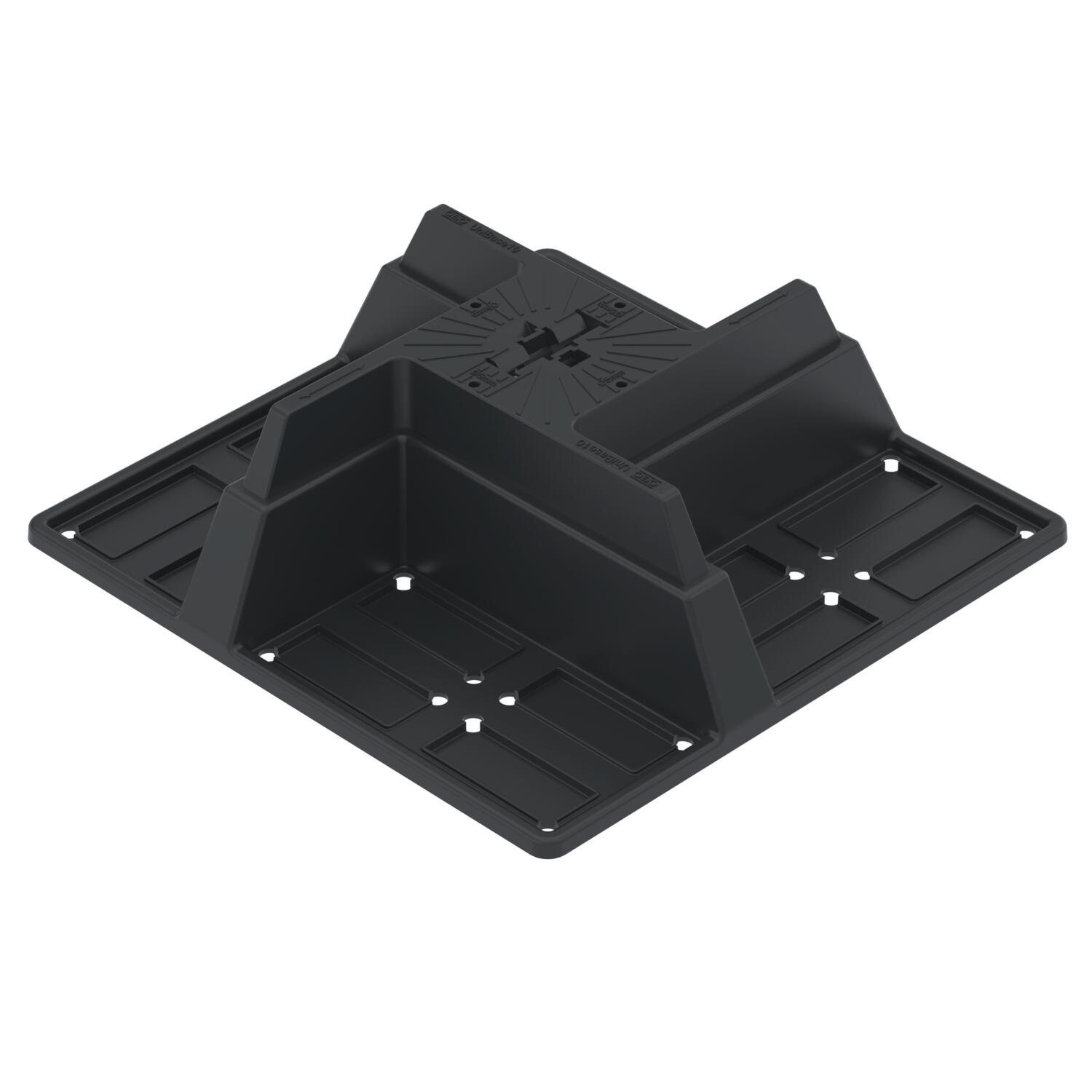

UniBase 10 universal stand

Name: UniBase 10 universal stand
Brand: OBO Bettermann
SKU: 5403393

Št. art. 5403393 | EAN 4012197371784

Opis izdelka

Opis izdelka

Universal stand for ballasting with standard blocks up to a dimension of 200 x 100 x 100 mm. Can be used on flat roofs, e.g. for mounting PV mounting systems or for cable routing with cable trays or with mesh cable trays in conjunction with roof cable holder 165 MBG HGRM. Blocks not contained in the scope of delivery.

Tehnični podatki

Tehnični podatki

Carrying depth for ballasting max.	200 mm
Carrying height for ballasting max.	100 mm
Carrying width for ballasting max.	100 mm

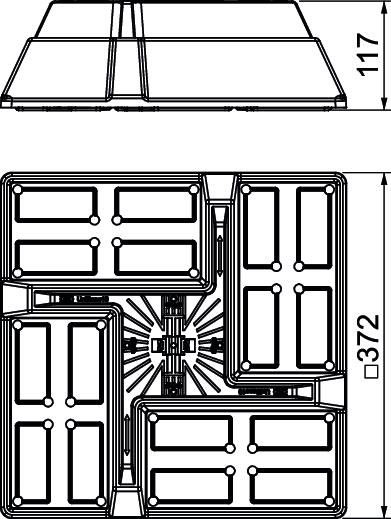

Dolžina	372 mm
Izvedba	Podnožje

Number of carrying surfaces for ballasting	4 St.
Prileg	5 mm
Širina	372 mm
Teža	0,915 kg
Višina	117 mm

Vsi tipi

Vsi tipi

Tip		Št. art.	Količina	Min. prodajna enota
UniBase 10		5403393	Kos	8 Kos

Pribor

Sistemski dodatki

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota

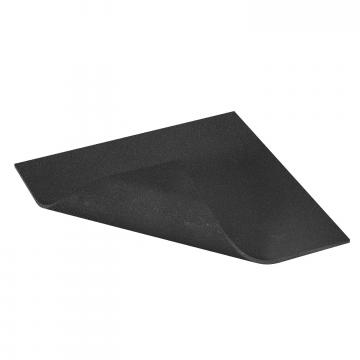

Building protection mat, flat roof	UniBase BSM	5403402	Kos	16 Kos

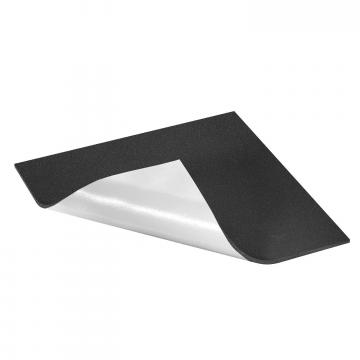

Building protection mat, flat roof, aluminium-lined	UniBase BSM ALU	5403404	Kos	16 Kos

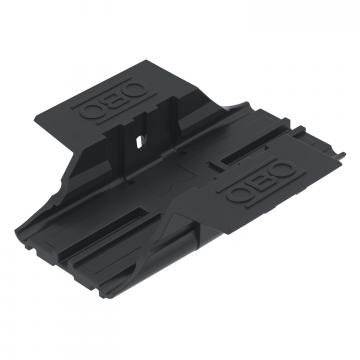

Adapter for TP 45 support profile	UniBase TMP	5403397	Kos	16 Kos
