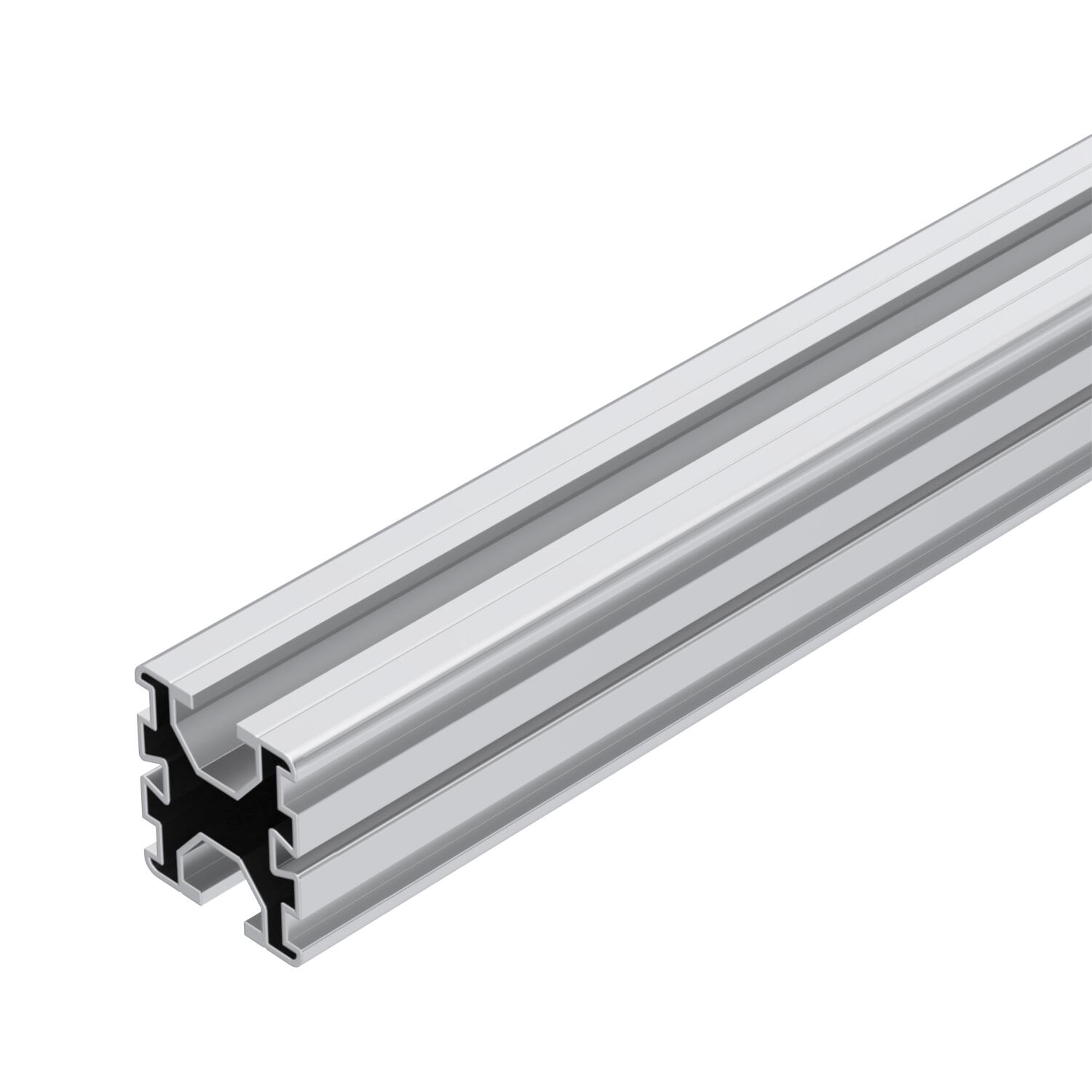

Support profile for PV module mounting
Št. art. 5900410 | EAN 4012197368623
- Opis izdelka
-
Opis izdelkaSupport profile to mount photovoltaic modules on flat and pitched roofs. Flat roof mounting in combination with UniBase universal stand and STK and STL short and long supports. Lockable fastening of the profile on the stand with UniBase AMP adapter. Pitched roof mounting in combination with universal DHU roof hook. Lockable fastening of the profile on roof hooks. Screwable connection of multiple support profiles with LV 45 straight connectors and KV 45 cross-connectors. With 10 mm groove on both sides to accept slide nuts and universal and earthing clamps.
-
- Tehnični podatki
-
Tehnični podatki
Barva srebro Dimenzija 40x45x4700 Dolžina 4700 mm Integrirani kabelski kanal ne Material aluminij Odpornostni moment Wx 3680 mm³ Odpornostni moment Wy 3760 mm³ Opcijski kabelski kanal ne Površina neobdelano Širina 40 mm Višina 45 mm - Vsi tipi
-
Sistemski dodatki
Proizvodi Tip Št. art. Količina Min. prodajna enota
Universal clamp for PV module mounting
KLU A2 5901010 20 Kos
Support profile end cap
EK 45 G 5901722 20 Kos
Straight connector for TP support profile
LV 45 DD 5901210 20 Kos
Cross-connector for TP support profiles
KV 45 DD 5901250 20 Kos
Earthing terminal for PV mounting systems
249 PV10 6-50V2A 5051520 8 Kos Montažni pribor
Proizvodi Tip Št. art. Količina Min. prodajna enota
Screw with hammer head nut for PV module mounting for on-roof module holder/metal roof tiles PV
SKS HM A2 5901850 20 Kos - Prenosi
-
Podatkovni list TP 45 4700 ALU / 5900410 , 0.16MB , pdfREACH Izjava o skladnosti TP 45 4700 ALU / 5900410 , 0.12MB , pdfRoHS Izjava o skladnosti TP 45 4700 ALU / 5900410 , 0.13MB , pdfNavodila za montažo PV mounting systems for pitched roofs , 4.03MB , pdfNavodila za montažo PV mounting systems Magic PV Flat Pro , 5.39MB , pdfZa ta proizvod informativna besedila niso na voljo
