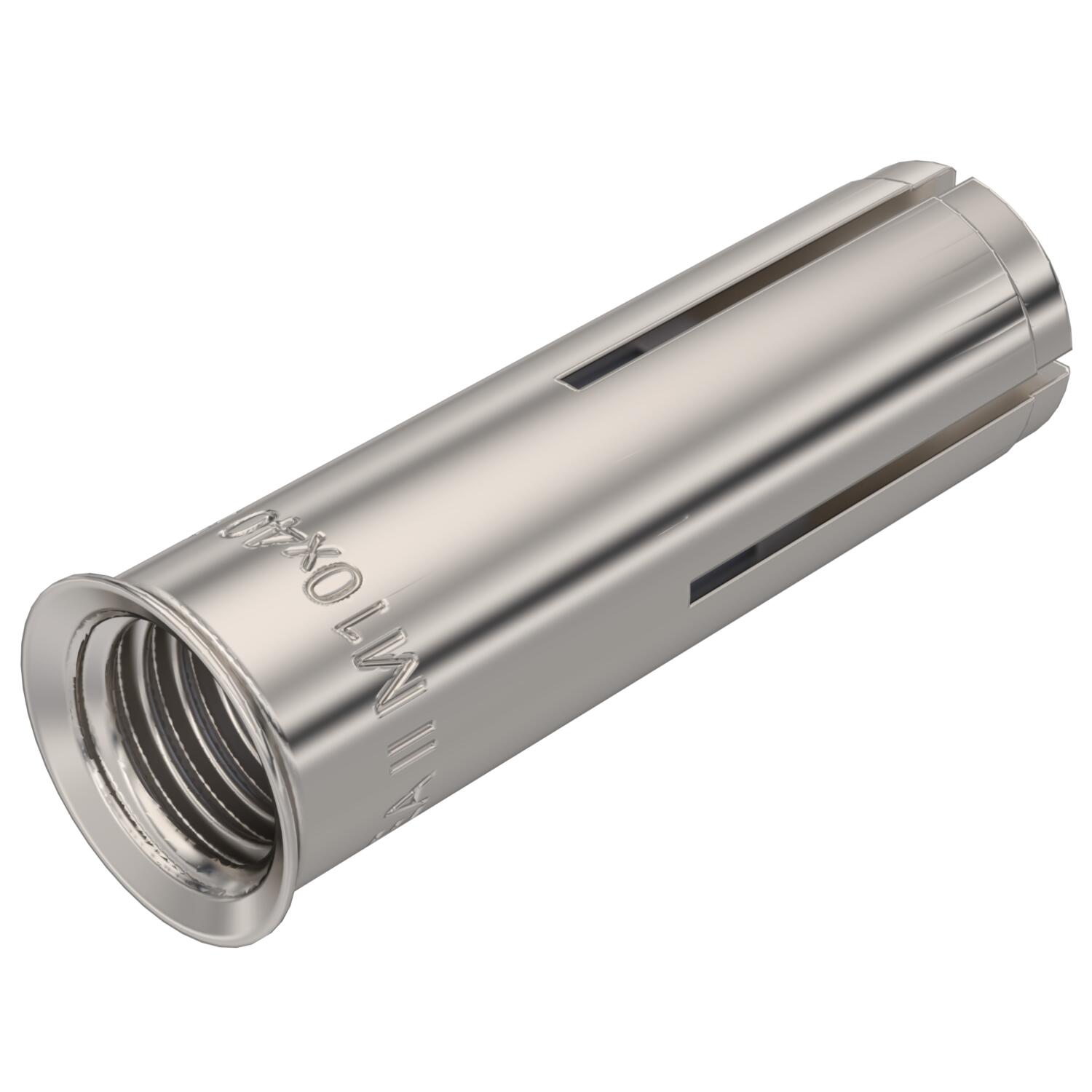

Drop-in anchor for multiple fastenings A4
Št. art. 3492244 | EAN 4012197507022
- Opis izdelka
-
Opis izdelkaDrop-in anchor for multiple fastening, with internal thread in steel, for the anchoring of, for example, cable tray systems, consoles, steel conctructions, etc. in uncracked concrete in indoor and outdoor areas. To knock in with a hammer. With an edge to prevent the anchor from being pulled in. Rustproof and highly corrosion-resistant. The anchor sleeve tightens against the drill hole wall when the internal pin is knocked in, e.g. using the manual firing tool EHS M. Fire-safety tested, fire protection class R 120. European Technical Assessment ETA-07/0135 for use in concrete and European Technical Assessment ETA-07/0142 for use in concrete for redundant non-structural systems.
-
- Tehnični podatki
-
Tehnični podatki
Barva legirano jeklo Dimenzija M10x40 Dovoljenja so na voljo da Dovoljeno območje obremenitve Območje natega 3 Globina izvrtine 40 mm Izvedba Udar Maks. globina privitja 17 mm Material Nerjaveče jeklo Metrični navoj 10 Min. globina privitja 10 mm Min. premer izvrtine 12 mm Način montaže vložkov, sider Poravnana montaža Navoj M10 Primerno za gradbeni material Beton, Naravni kamen Pritrdilna priprava drugo Samovrtalen ne Tip navoja metrično Dimenzije
Dolžina 40 mm Mera L 40 mm - Vsi tipi
- Prenosi
-
Podatkovni list EA II M 10x40 A4 / 3492244 , 0.16MB , pdfEU-Izjava o skladnosti EA II M 10x40 A4 / 3492244 , 0.11MB , pdfIzjava o lastnostih EA II M 10x40 A4 / 3492244 , 1.42MB , pdfEuropean Technical Assessments Drop-in anchor EA II , 1.47MB , pdfEuropean Technical Assessments ETA-07/0142 Einschlaganker EA II - Mehrfachbefestigung , 1.56MB , pdfZa ta proizvod informativna besedila niso na voljo
