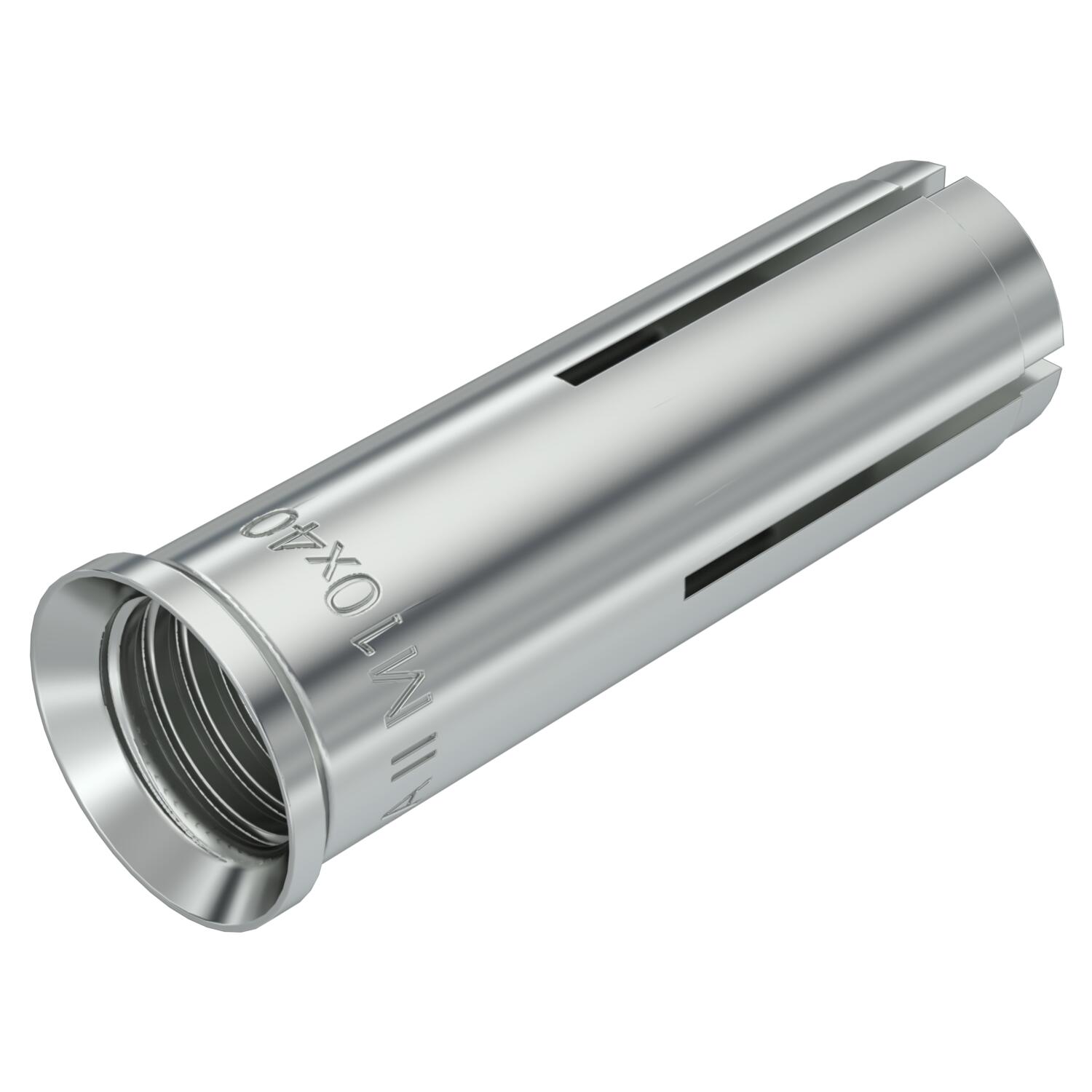

Drop-in anchor for multiple fastening G
Št. art. 3492218 | EAN 4012197507091
- Opis izdelka
-
Opis izdelkaDrop-in anchor for multiple fastening, with internal thread in steel, for the anchoring of, for example, cable tray systems, consoles, steel conctructions, etc. in uncracked concrete in indoor and outdoor areas. To knock in with a hammer. With an edge to prevent the anchor from being pulled in. Rustproof and highly corrosion-resistant. The anchor sleeve tightens against the drill hole wall when the internal pin is knocked in, e.g. using the manual firing tool EHS M. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-07/0135 for concrete.
-
- Tehnični podatki
-
Tehnični podatki
Barva cink Dimenzija M10x40 Dolžina 40 mm Dovoljenja so na voljo da Dovoljeno območje obremenitve Območje natega 3 Globina izvrtine 40 mm Izvedba Udar Maks. globina privitja 17 mm Material Jeklo Mera L 40 mm Metrični navoj 10 Min. globina privitja 10 mm Min. premer izvrtine 12 mm Način montaže vložkov, sider Poravnana montaža Navoj M10 Površina galvansko cinkano Primerno za gradbeni material Beton, Naravni kamen Pritrdilna priprava drugo Samovrtalen ne Tip navoja metrično - Vsi tipi
- Prenosi
-
Podatkovni list EA II M 10x40 / 3492218 , 0.16MB , pdfEU-Izjava o skladnosti EA II M 10x40 / 3492218 , 0.11MB , pdfZa ta proizvod informativna besedila niso na voljo
