Wire cable clamp G
Št. art. 5302021 | EAN 4012195414551
- Opis izdelka
-
Opis izdelkaWire cable clamp, formerly DIN 741, for fastening steel wire tensioning ropes. The bracket of the wire rope clamp must be positioned over the unloaded end of the wire rope loop; the clamping body rests against the load-bearing, continuous section of the wire rope loop. To ensure a secure connection, at least 3 wire cable clamps are required per wire rope loop, spaced at intervals of 1–2 times the clamp width. The hexagonal nuts must be tightened evenly in alternating order and retightened after the rope has been loaded for the first time.
-
- Tehnični podatki
-
Tehnični podatki
Dimenzija 3mm Izvedba ni izolirano Material Jeklo Površina galvansko cinkano Skladen z ROHS da za premer vrvi min. 3 mm Dimenzije

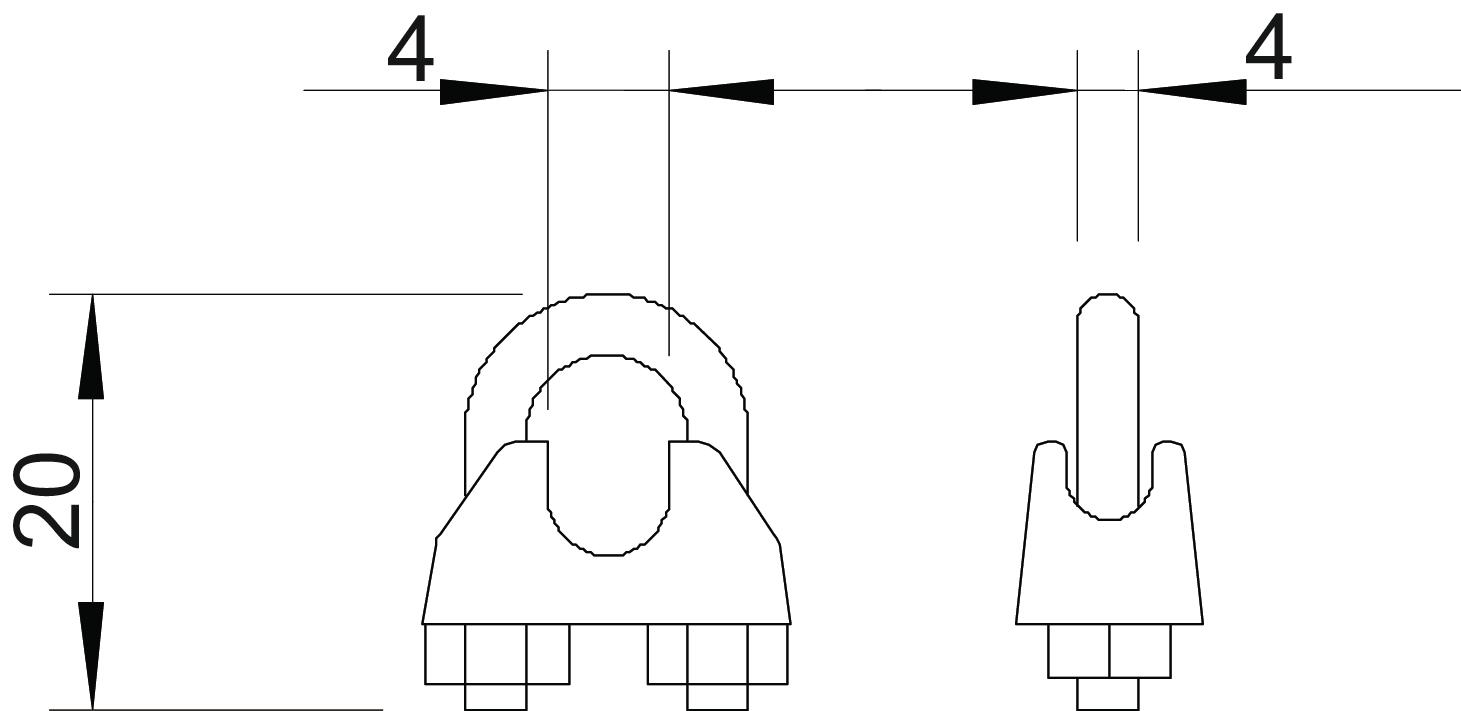

Mera A 20 mm Mera B 4 mm Mera C 4 mm CO2 odtis (Product Carbon Footprint)
CO₂ Footprint (GWP) 0,0183 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 Odtis CO2 (GWP) od zibelke do vrat 0,0183 kg CO2e / 1 Kos - Vsi tipi
- Prenosi
-
Podatkovni list 947 3 G / 5302021 , 0.16MB , pdfEU-Izjava o skladnosti EU-Izjava o skladnosti ,EU-Izjava o skladnosti EU-Izjava o skladnosti ,REACH Izjava o skladnosti 947 3 G / 5302021 , 0.12MB , pdfRoHS Izjava o skladnosti 947 3 G / 5302021 , 0.12MB , pdf
