Wall, floor and ceiling bracket with 3 holes A2 102 | 134 | 110 | 5 | Perforated
morepic-1 morepic-2 morepic-3 video-1

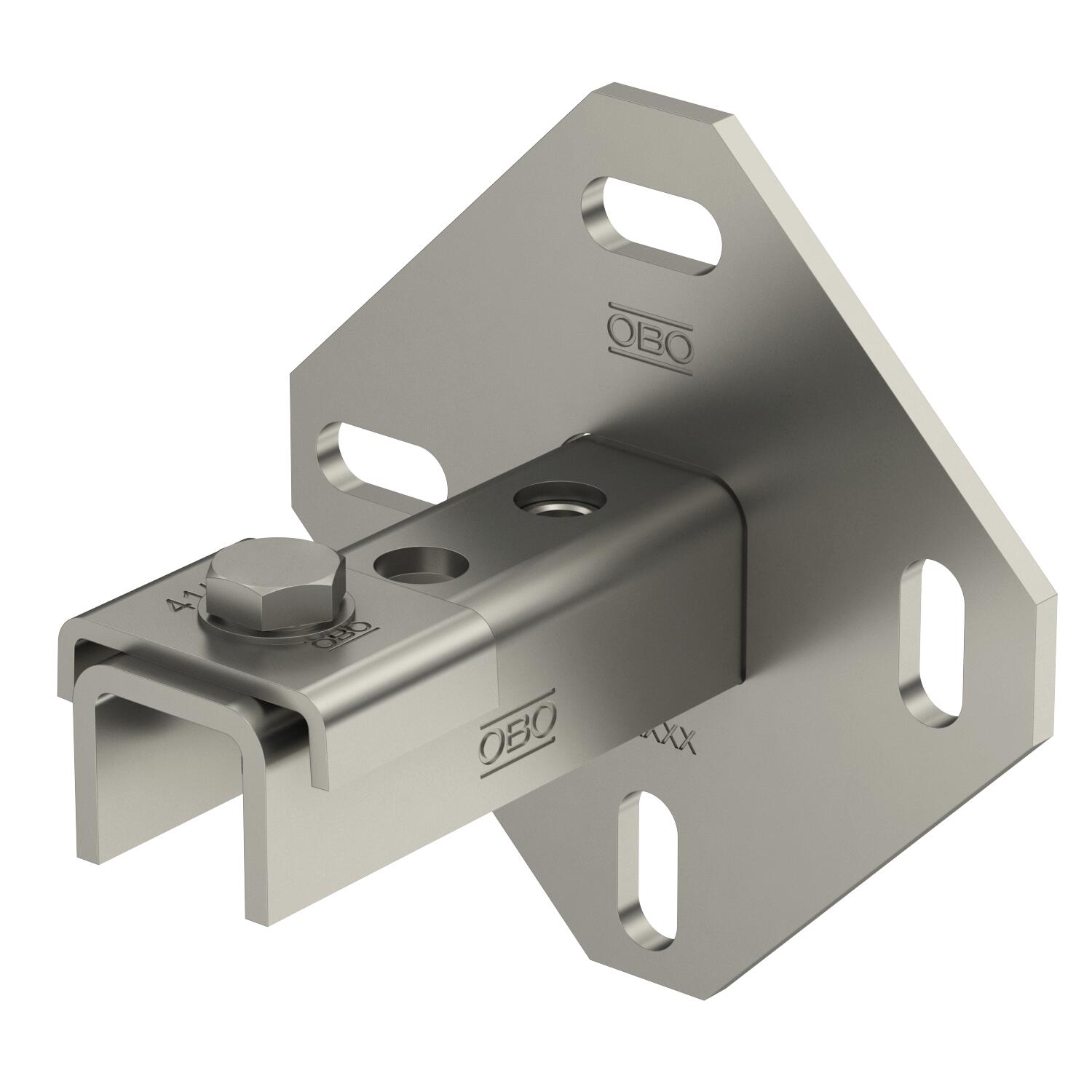

Wall, floor and ceiling bracket with 3 holes A2

Št. art. 1123195 | EAN 4012195939290

1123195 / WBDHE 41 A2
102 mm
134 mm
110 mm
5 mm
Perforated
Opis izdelka
Opis izdelka
The wall, floor and ceiling bracket can ideally be used as a panel for wall, floor and ceiling mounting.
Also suitable for stand and frame construction in conjunction with the mounting rails MS4141.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Slot width 22 mm
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Tehnični podatki

Tehnični podatki

Debelina materiala 5 mm
Dimenzija 134x110x102
Izvedba Perforated
Material Nerjaveče jeklo 1.4301
Oblika profila C-profil
Površina surovo, naknadno obdelano
Širina utora 22 mm
Statična vrednost A 2,97 cm²
Statična vrednost ly 6,05 cm⁴
Statična vrednost lz 9,01 cm⁴
Statična vrednost Wy 2,91 cm³
Statična vrednost Wz 4,4 cm³
Velikost luknje 25 x 11

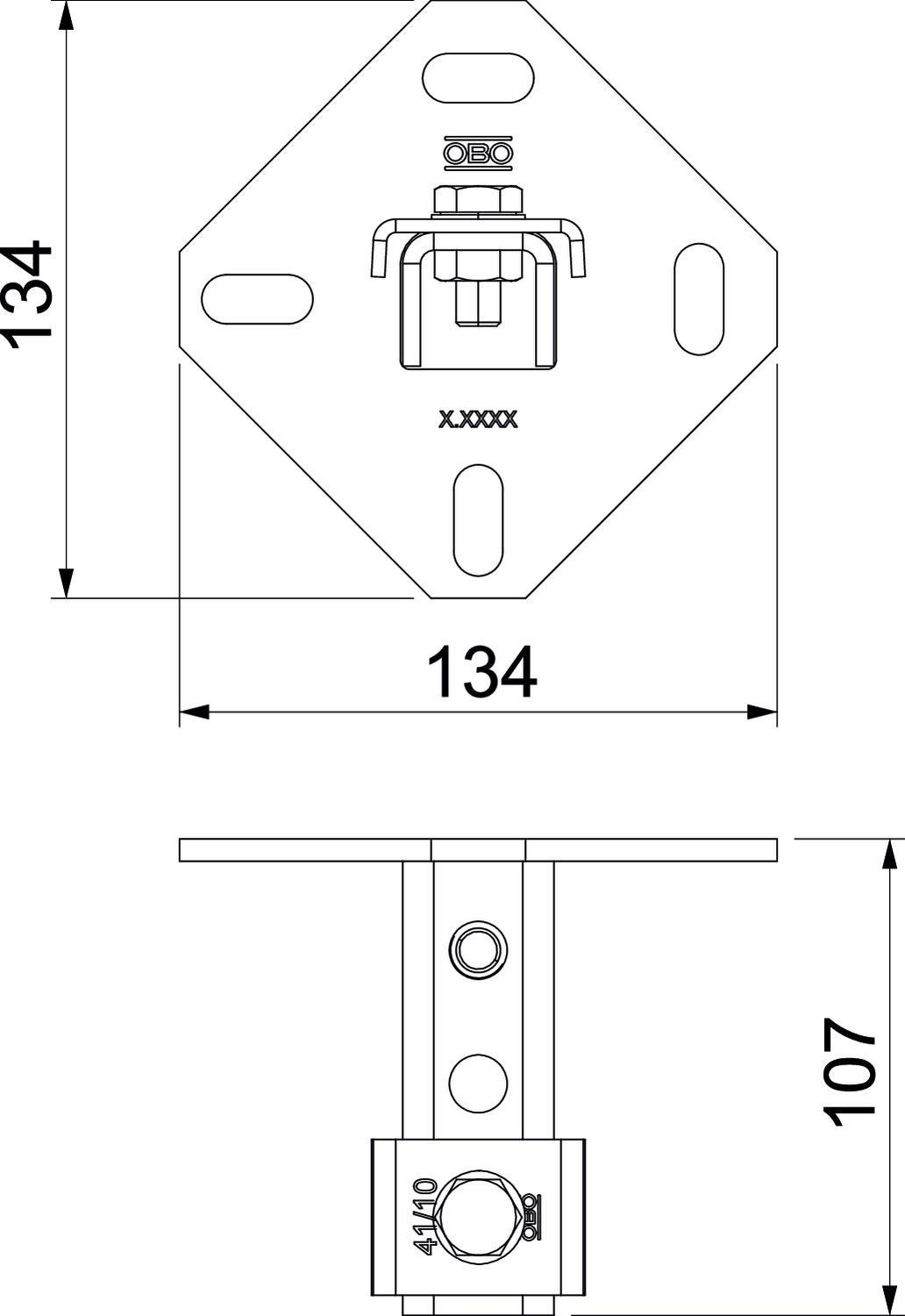

Dimenzije

Dolžina 102 mm
Širina 134 mm
Višina 110 mm

CO2 odtis (Product Carbon Footprint)

CO₂ Footprint (GWP) 4,9684 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
Odtis CO2 (GWP) od zibelke do vrat 4,9684 kg CO2e / 1 Kos
Vsi tipi

Vsi tipi

Tip Dolžina Širina Višina Debelina materiala Izvedba Št. art. Količina Min. prodajna enota
WBDHE 41 A2 102 mm 134 mm 110 mm 5 mm Perforated 1123195
10 Kos
