Universal clamp for PV module mounting
Št. art. 5901012 | EAN 4012197378301
- Opis izdelka
-

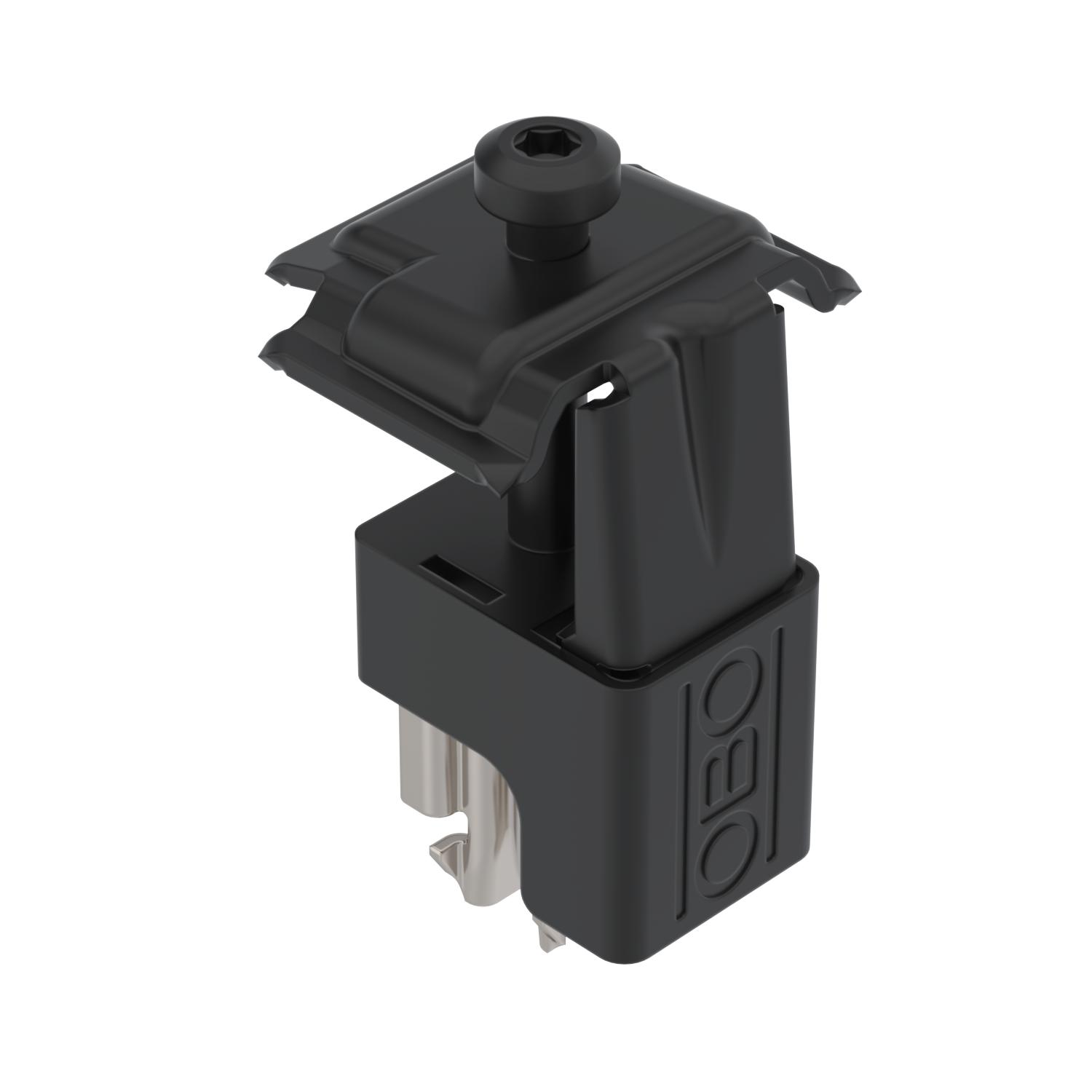

Opis izdelkaUniversal clamp for mounting photovoltaic modules on flat and pitched roofs, suitable as a clamp between 2 modules or as an end clamp. Lockable pre-fastening on TP 45 support profile and on STK and STL supports. Suitable for 10 mm slot width. Can be rotated through 90° after engaging. Screwable fastening of the PV module with Torx 30 key.
-
- Tehnični podatki
-
Tehnični podatki

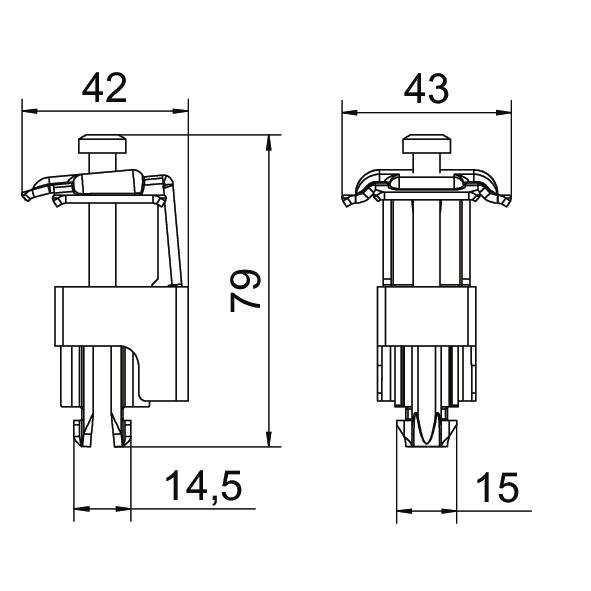

Barva črna Dimenzija 41x42x79 Globina 42 mm Izvedba elementa za povezavo in pritrditev sončnih celic Universal clamp Material Nerjaveče jeklo 1.4301 Nastavljiv da Površina s plastično prevleko With module earthing ne Za višino okvira maks. 50 mm Za višino okvira min. 30 mm Dimenzije
Širina 43 mm Višina 79 mm CO2 odtis (Product Carbon Footprint)
CO₂ Footprint (GWP) 0,4568 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 Odtis CO2 (GWP) od zibelke do vrat 0,4568 kg CO2e / 1 Kos - Vsi tipi
- Prenosi
-
Podatkovni list KLU A2 S / 5901012 , 0.15MB , pdfREACH Izjava o skladnosti KLU A2 S / 5901012 , 0.12MB , pdfRoHS Izjava o skladnosti KLU A2 S / 5901012 , 0.13MB , pdfNavodila za montažo PV mounting systems Magic PV Flat Glue , 3.57MB , pdfNavodila za montažo PV mounting systems Magic PV Flat Basic , 3.93MB , pdfNavodila za montažo PV mounting systems for pitched roofs , 3.91MB , pdfNavodila za montažo PV mounting systems Magic PV Pitch on trapezoidal roofs , 2.45MB , pdfNavodila za montažo PV mounting systems Magic PV Flat Pro , 5.26MB , pdfZa ta proizvod informativna besedila niso na voljo
