Suspension strip MagicFix 1490 | 28
morepic-1 morepic-2

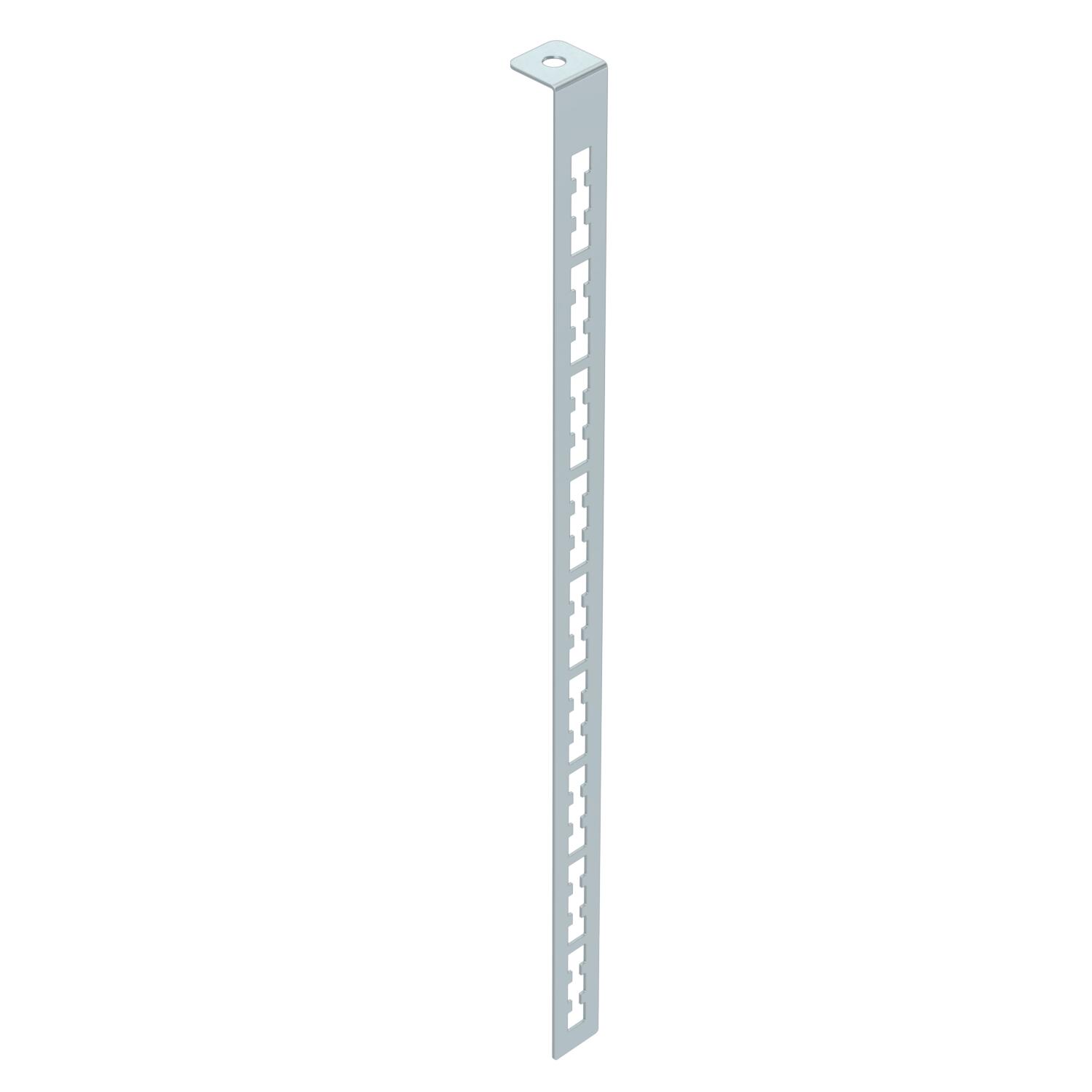

Suspension strip MagicFix

Št. art. 6426204 | EAN 4012197509606

28 mm
Opis izdelka
Opis izdelka
Suspension straps for the supsension of the MagicFix support rail from the ceiling, for the creation of pendulum or centre suspensions with light cable trays, mesh cable trays or cable ladders. Graded height ajustments and multi-layered installation of trays and ladders possible.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Tehnični podatki

Tehnični podatki

Barva cink
Debelina materiala 1,5 mm
Dimenzija 1500mm
Material Jeklo
Oblika profila Ploski profil
Površina neprekinjeno cinkano v ognju
Primerno za oblike profilov Flat profile
Promjer rupe 9 mm
Serija proizvodov OBO-MagicFix®
Skladen z ROHS da

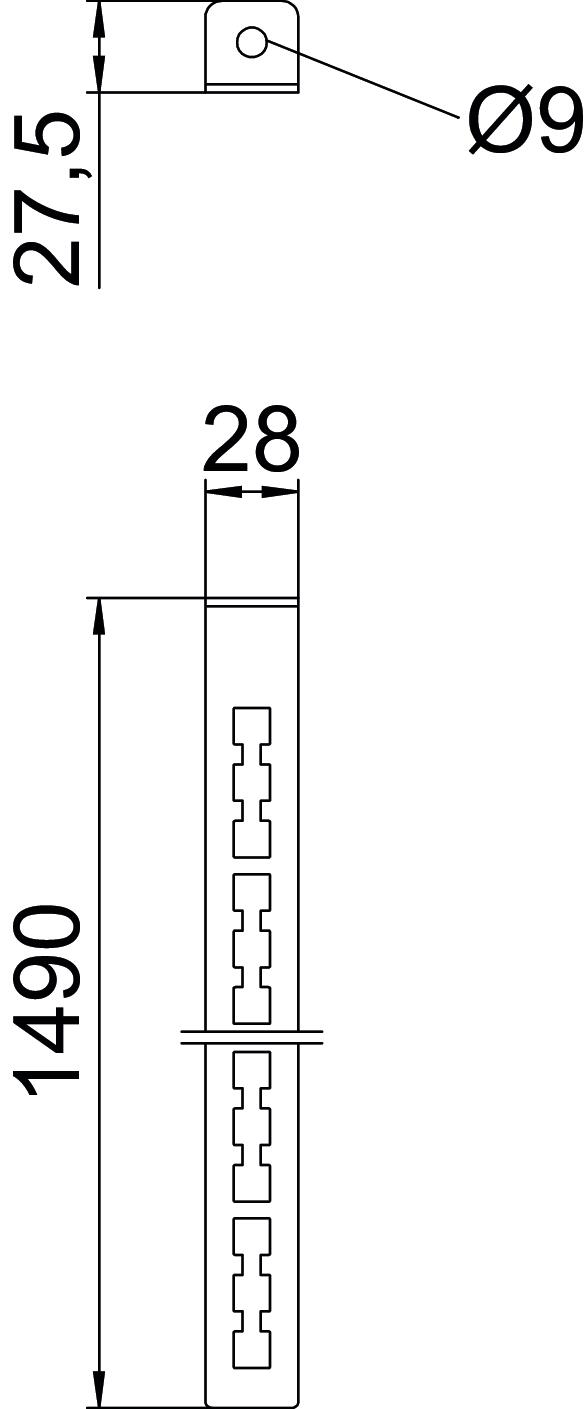

Dimenzije

Dolžina 1490 mm
Širina 28 mm
Vsi tipi

Vsi tipi

Tip Dolžina Širina Št. art. Količina Min. prodajna enota
ASM 50 FS 490 mm 28 mm 6426200
1 Kos
ASM 100 FS 990 mm 28 mm 6426202
1 Kos
ASM 150 FS 1490 mm 28 mm 6426204
1 Kos
ASM 200 FS 1990 mm 28 mm 6426206
1 Kos
Pribor

Sistemski dodatki

Proizvodi Tip Št. art. Količina Min. prodajna enota
Protective cap MagicFix Protective cap MagicFix SKM OR 6426180
20 Kos
Prenosi

Prenesi

Prenesi

Prenesi

Za ta proizvod informativna besedila niso na voljo
