Support profile for PV module mounting, free-standing system
Št. art. 5900540 | EAN 4012197489595
- Opis izdelka
-

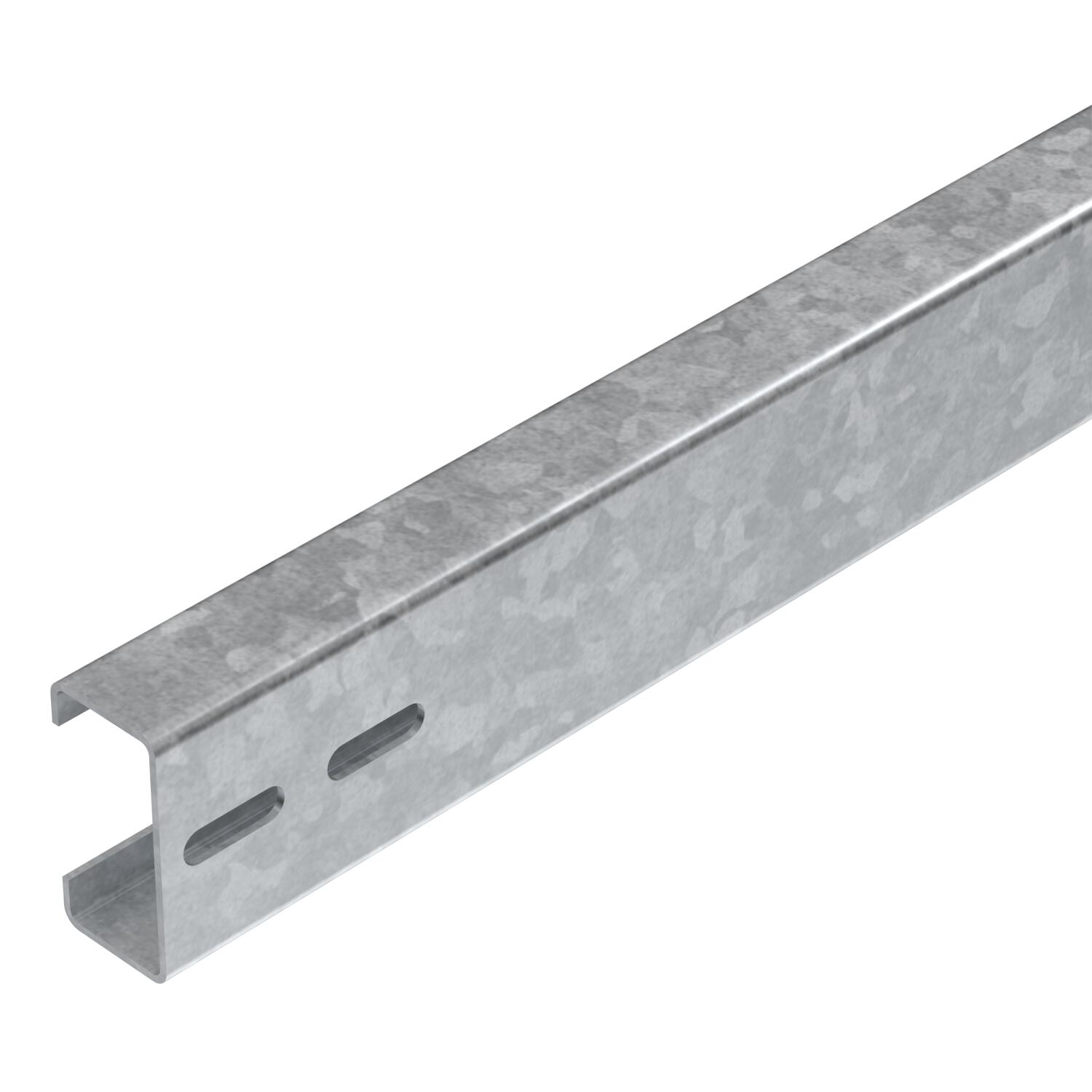

Opis izdelkaSupport profile to mount photovoltaic modules on free-standing systems. Mounting of support profile on pre-mounted supports with KV FT cross-connectors. Mounting of the PV modules on the support profile with end and/or connection clamps of type KLE and/or KLZ. Connection of multiple support profiles with LV FT straight connectors and KV FT cross-connectors, screw-on.
- Tehnični podatki
-
Tehnični podatki

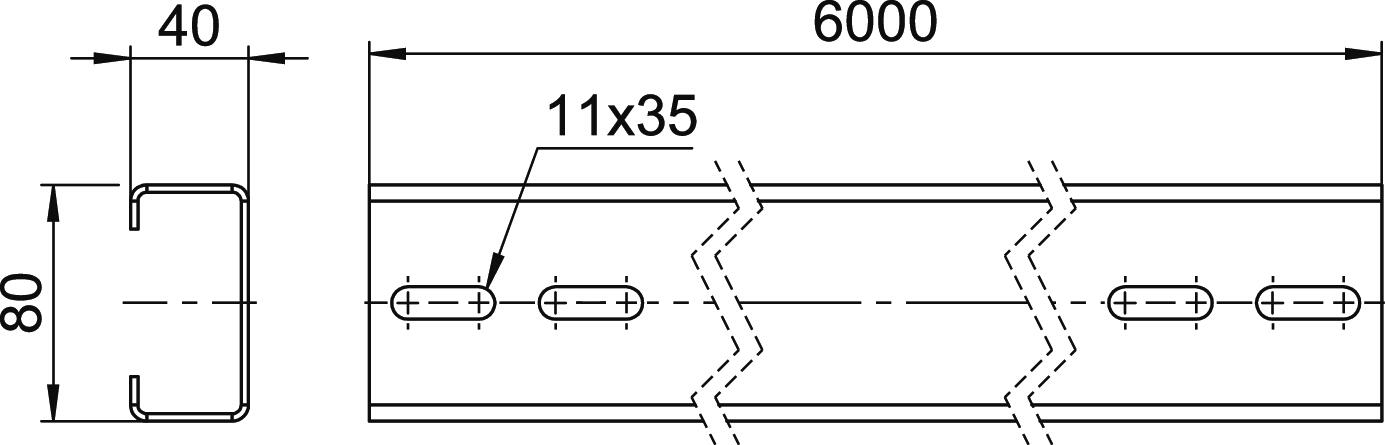

Dimenzija 40x80x6000 Integrirani kabelski kanal ne Material Jeklo Odpornostni moment Wx 10600 mm³ Odpornostni moment Wy 5200 mm³ Opcijski kabelski kanal ne Površina vroče pocinkano Serija proizvodov Magic PV Field Skladen z ROHS da Dimenzije
Dolžina 6000 mm Širina 40 mm Višina 80 mm - Vsi tipi
- Prenosi
-
Podatkovni list TPU 6000 FT / 5900540 , 0.25MB , pdfREACH Izjava o skladnosti TPU 6000 FT / 5900540 , 0.12MB , pdfRoHS Izjava o skladnosti TPU 6000 FT / 5900540 , 0.13MB , pdfZa ta proizvod informativna besedila niso na voljo
