Roof hook for PV module mounting, screwable profile, tiled roof
morepic-1 morepic-2

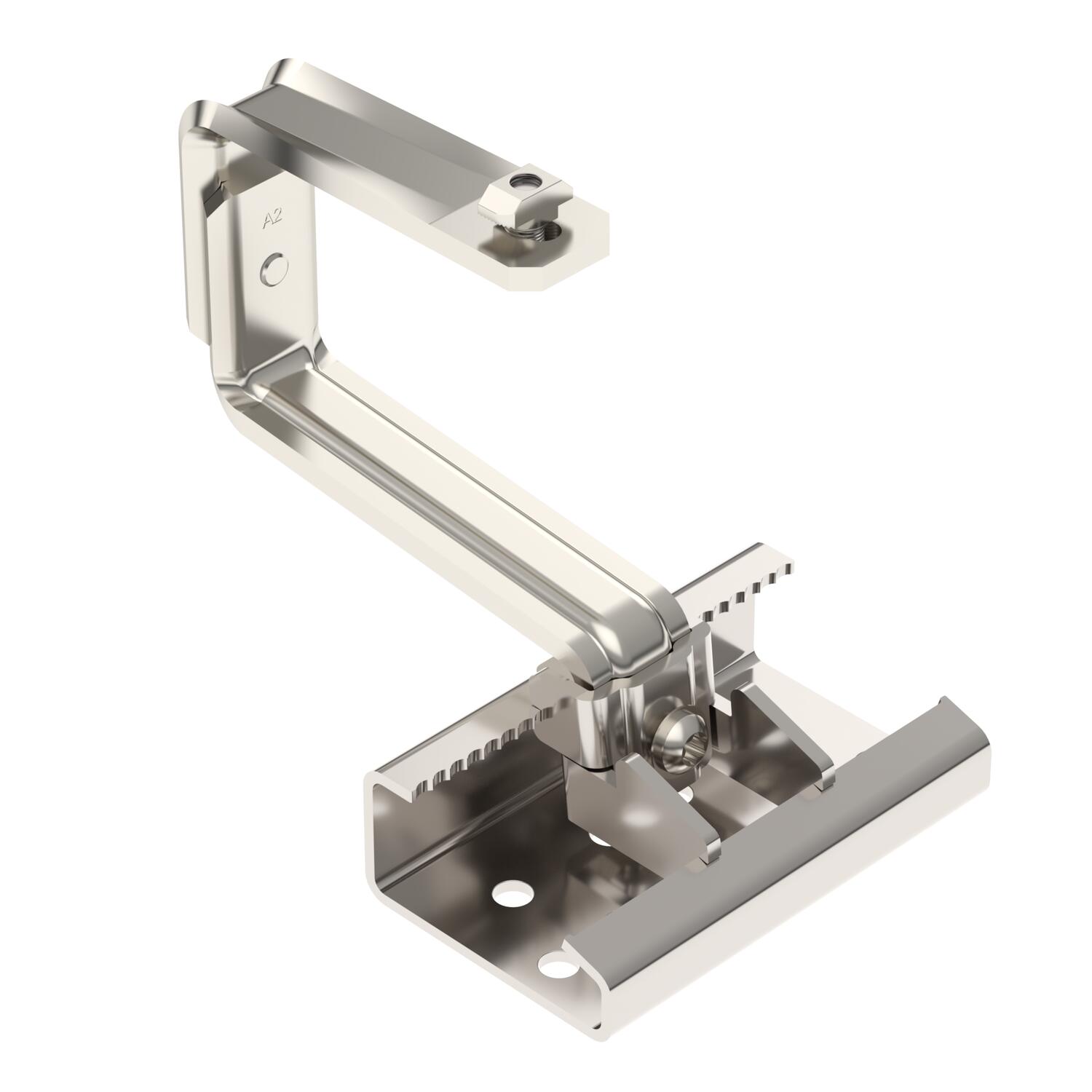

Roof hook for PV module mounting, screwable profile, tiled roof

Št. art. 5901404 | EAN 4012197453565

Opis izdelka
Opis izdelka
Roof hook to mount photovoltaic modules on pitched roofs in combination with the TP 45 support profile. Suitable for tiled roofs. Screwable fastening on the support profile. Mounting on rafters with TKS wafer-head screws. The roof hook can be adjusted horizontally as well as vertically continuously via glands, correctTorx 40 key. Height adjustment in the range of the roof slat between 40–54 mm, side adjustment option up to 76 mm, height adjustment of the support profile up to 18 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
Tehnični podatki

Tehnični podatki

Barva legirano jeklo
Debelina materiala 8 mm

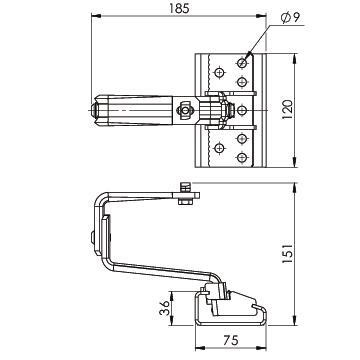

Dimenzija 120x186x150
Dolga pritrdilna plošča 120 mm
Material Nerjaveče jeklo 1.4301
Min. naklonski kot 90 °
Nastavljiv da
Odtis CO2 (GWP) od zibelke do vrat 6,4247 kg CO2e / 1 Kos
Poravnava vodoravno
Površina surovo, naknadno obdelano
Primerno za pritrditev fasadnega/strešnega nosilca sončnih celic Pritrditev na poševno streho
Primerno za strešni material Strešnik
Pritrdišče vijaki
Širina 120 mm
Široka pritrdilna plošča 75 mm
Visoka pritrdilna plošča 36 mm
Z montažno ploščo da
Zahtevan preboj strehe da
Vsi tipi

Vsi tipi

Tip Št. art. Količina Min. prodajna enota
DHU A2 5901410
10 Kos
DHU T A2 5901404
10 Kos
