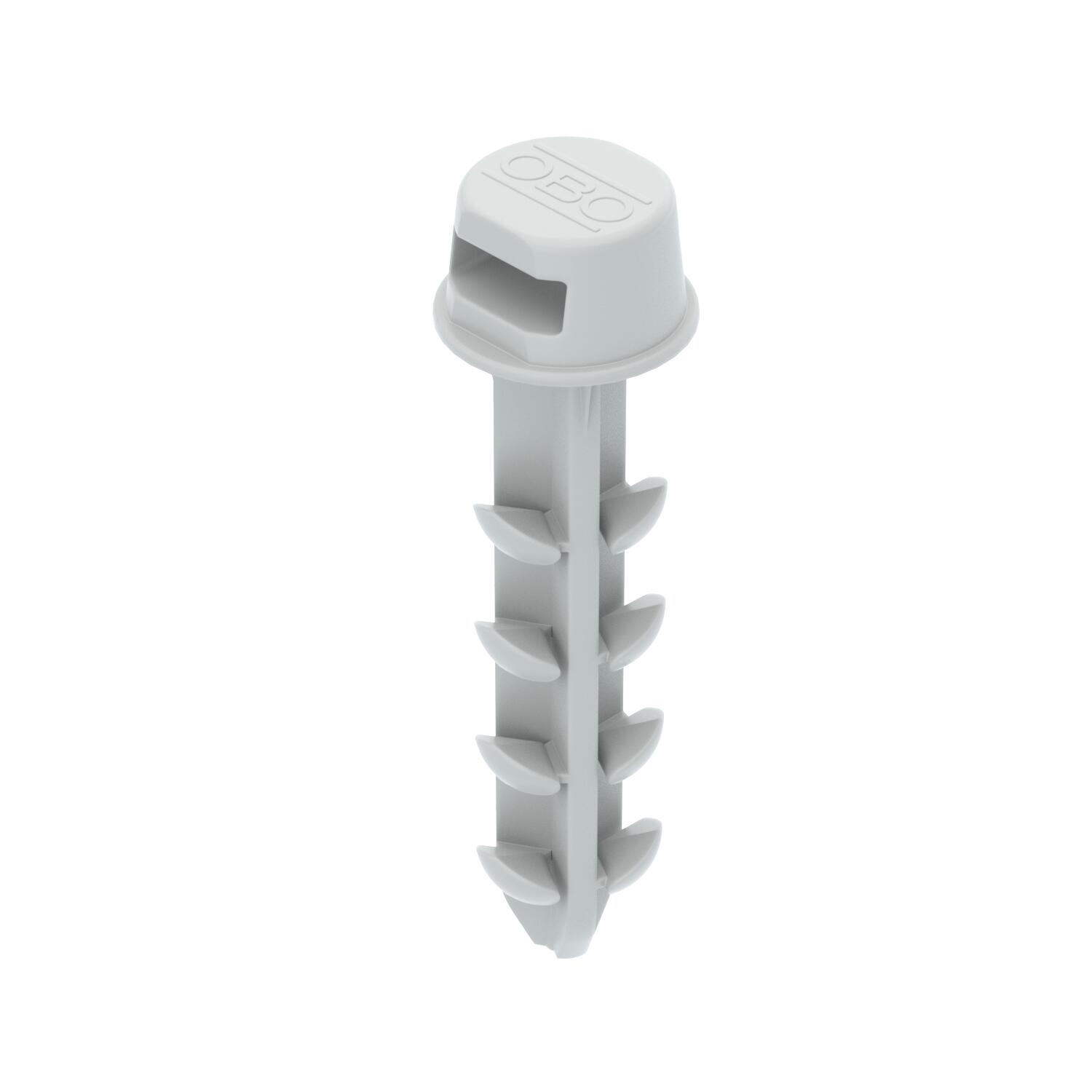

Push-fit plug Delta-Push® for cable ties 30 | 6 | 6

Push-fit plug Delta-Push® for cable ties

Št. art. 2351676 | EAN 4012197430825

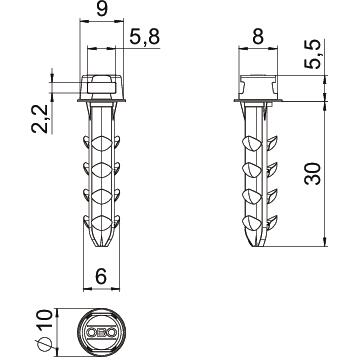

Št. art. / Tip	2351676 / DP KB 30

Dolžina	30 mm

Premer	6 mm

Min. premer izvrtine	6 mm

Opis izdelka

Opis izdelka

Push-fit plug Delta-Push® for mounting electrical installations. Suitable for concrete, calcareous limestone, full brick, hollow brick and porous concrete. Toolless mounting by pushing into a drill hole in a wall or on a ceiling. Without screws. With cable tie seat up to 4.8 mm width and 2 mm hight to fasten cables and pipes.

Tehnični podatki

Tehnični podatki

Brez halogenov	da
Bruchlast Beton	400 N
Bruchlast Hochlochziegel	300 N
Dimenzija	35,5x10,0x10,0
Dolžina	30 mm
Globina izvrtine	35 mm
Izvedba	Vtični vložek
Maks. premer izvrtine	6 mm
Maks. temperaturna obstojnost	60 °C
Material	poliamid
Min. premer izvrtine	6 mm

Min. temperaturna obstojnost	-20 °C
Način montaže vložkov, sider	Poravnana montaža
Premer	6 mm
Primerno za gradbeni material	Apneni peščenec, Porozni beton, Beton, Plinobeton, Polna opeka, Luknjičasta opeka
Primerno za pritrditev s kabelskimi vezicami	da
Primerno za šestrobi lesni vijak	ne
Sichere Arbeitslast Beton	175 N
Sichere Arbeitslast Hochlochziegel	130 N
Temperatura pri montaži_maks.	60 °C
Temperatura pri montaži_min.	5 °C
Z vijaki	ne

Vsi tipi

Vsi tipi

Tip	Dolžina	Premer	Min. premer izvrtine	Št. art.	Količina	Min. prodajna enota
DP KB 30	30 mm	6 mm	6 mm	2351676	Kos	100 Kos

Pribor

Montažni pribor

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota

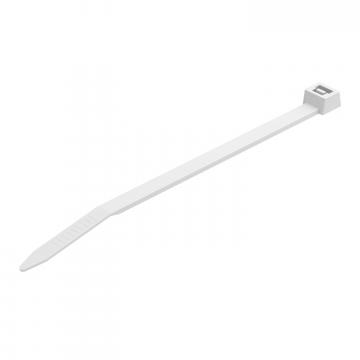

Cable tie, white	565 4.8x120 WS	2331860	Kos	100 Kos

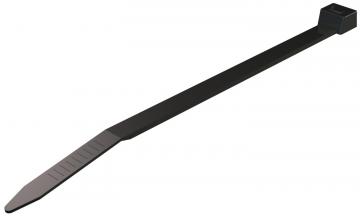

Cable tie, black, UV and weather-resistant	565 4.8x120 SWUV	2331862	Kos	100 Kos
Cable tie, white	565 4.8x160 WS	2331866	Kos	100 Kos
Cable tie, black, UV and weather-resistant	565 4.8x160 SWUV	2331868	Kos	100 Kos
Cable tie, white	565 4.8x200 WS	2331872	Kos	100 Kos
Cable tie, black, UV and weather-resistant	565 4.8x200 SWUV	2331874	Kos	100 Kos
Cable tie, white	565 4.8x300 WS	2331878	Kos	100 Kos
Cable tie, black, UV and weather-resistant	565 4.8x300 SWUV	2331880	Kos	100 Kos
Cable tie, white	565 4.8x365 WS	2331884	Kos	100 Kos
Cable tie, black, UV and weather-resistant	565 4.8x365 SWUV	2331886	Kos	100 Kos
Cable tie, white	565 4.8x430 WS	2331890	Kos	100 Kos
Cable tie, black, UV and weather-resistant	565 4.8x430 SWUV	2331892	Kos	100 Kos
