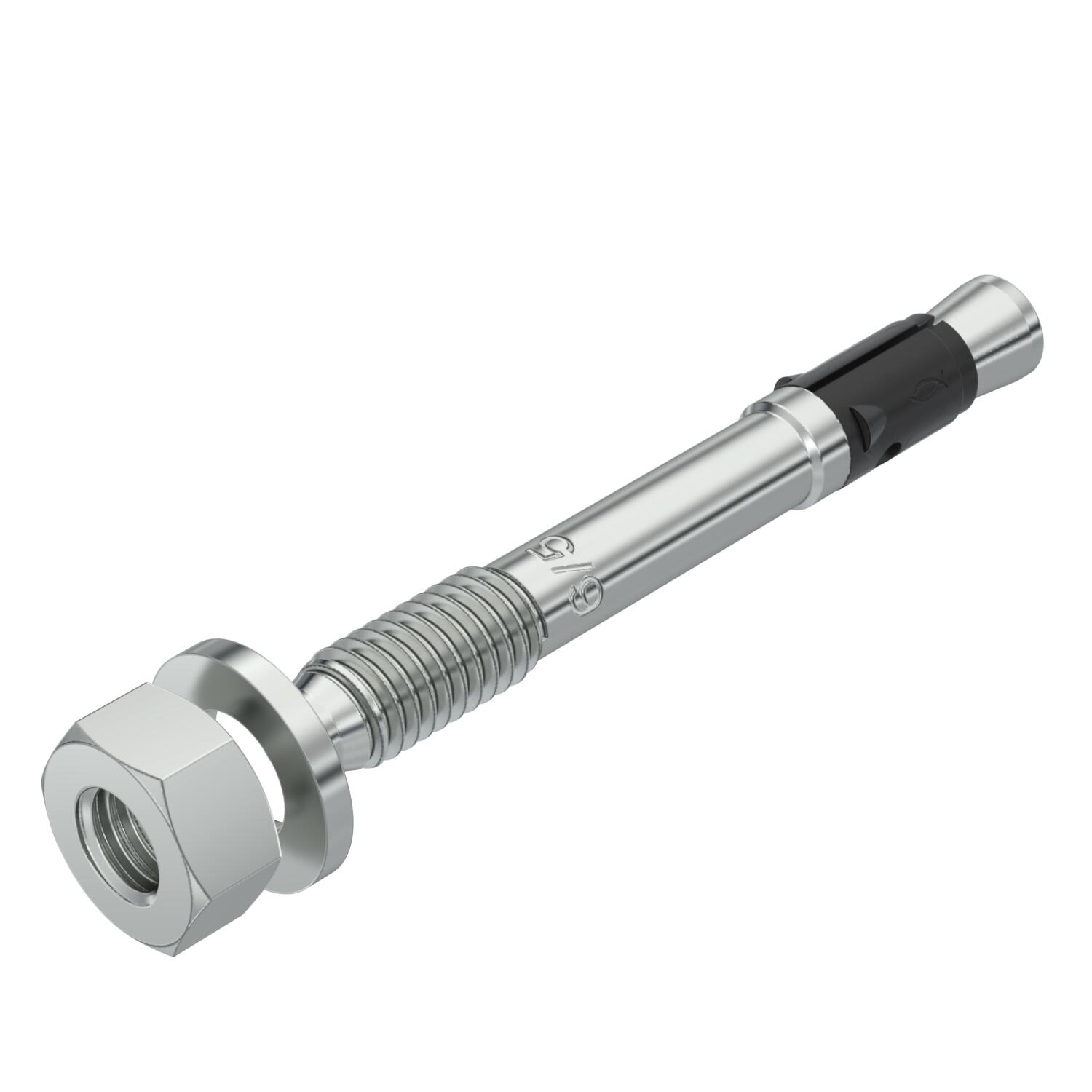

Nail tie with thread G
Št. art. 3499020 | EAN 4012197507367
- Opis izdelka
-
Opis izdelkaNail tie with thread for the anchoring of, for example, fire protective products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer. When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
-
- Tehnični podatki
-
Tehnični podatki

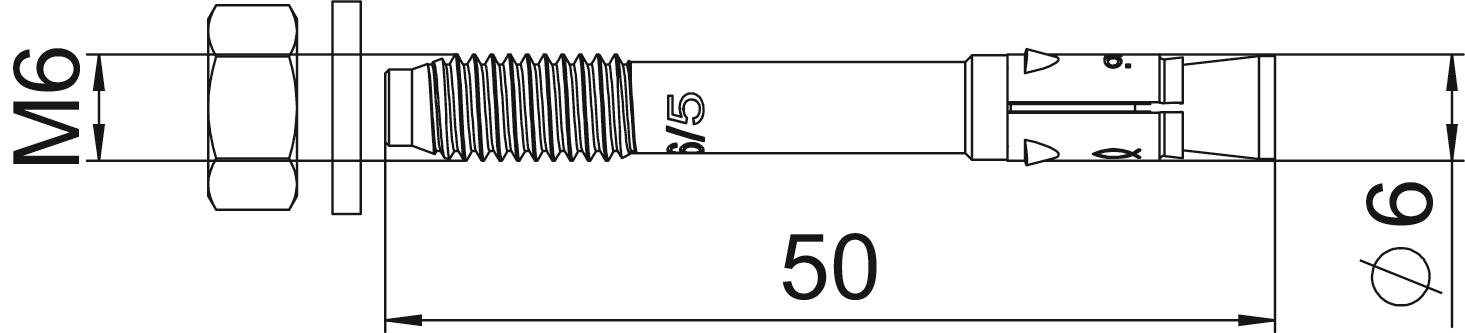

Barva cink Dimenzija 6x50 Dolžina 55 mm Dovoljenja so na voljo da Globina izvrtine 45 mm Izvedba Udar Material Jeklo Mera L 55 mm Metrični navoj 6 Min. premer izvrtine 6 mm Način montaže vložkov, sider Montaža skozi luknje Navoj M6 Površina galvansko cinkano Primerno za gradbeni material Apneni peščenec, Beton, Naravni kamen Pritrdilna priprava drugo Prižemna debelina 10 mm Samovrtalen ne - Vsi tipi
- Prenosi
-
Podatkovni list FNAII 6x30M6/5 / 3499020 , 0.16MB , pdfEU-Izjava o skladnosti FNAII 6x30M6/5 / 3499020 , 0.11MB , pdfIzjava o lastnostih FNAII 6x30M6/5 / 3499020 , 1.44MB , pdfEuropean Technical Assessments fischer Nagelanker FNA II , 1.53MB , pdfZa ta proizvod informativna besedila niso na voljo
