Opomba: ta izdelek je ukinjen.

MMS-plus V 12x110 pre-push tie, with connection thread 12x110 | 10 | 8

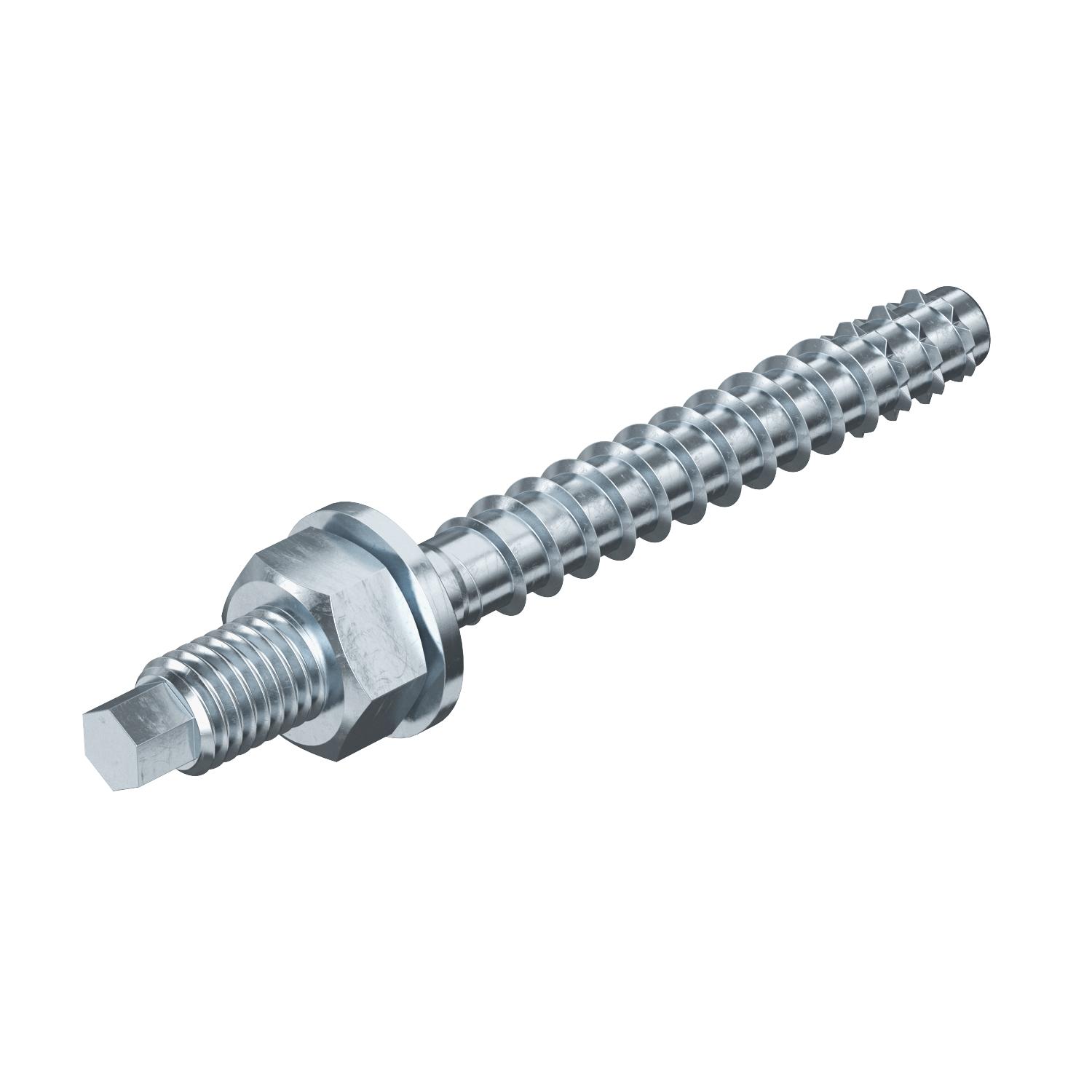

MMS-plus V 12x110 pre-push tie, with connection thread

Št. art. 3498196 | EAN 4012196842643

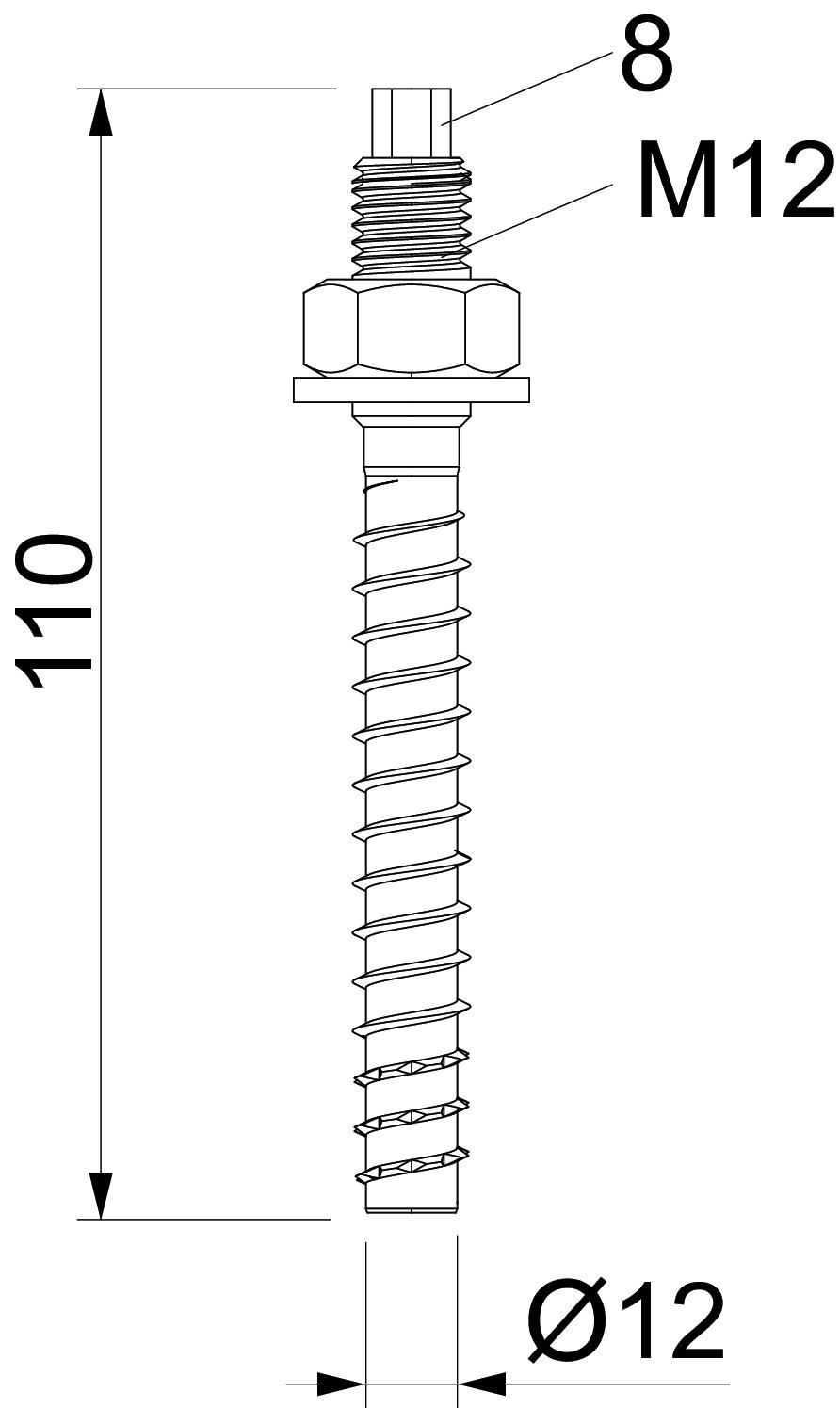

Št. art. / Tip	3498196 / MMS+ V 12x110

Dimenzije	12x110

Min. premer izvrtine	10 mm

Velikost ključa	8

Opis izdelka

Opis izdelka

Bolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With connection thread and washer to accept large loads. Suitable for fastening suspended loads from suspended supports and wall brackets in push-through mounting.

Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.

Tehnični podatki

Tehnični podatki

Barva	cink
Dimenzija	12x110
Dimenzije	12x110
Dolžina	110 mm
Fire resistance class EN 13501-1	R30, R60, R90, R120
Globina izvrtine	85 mm
Kaljeno	da
Material	Jeklo
Mera L	110 mm

Min. premer izvrtine	10 mm
Navoj	M12x30
Oblika glave	drugo
Ocena potresa ETA	C1
Površina	cinkano
Premer navoja ST	12
Prižemna debelina	10 mm
Velikost ključa	8
Vijačni sistem	Šestkotnik (heksagonalen)
