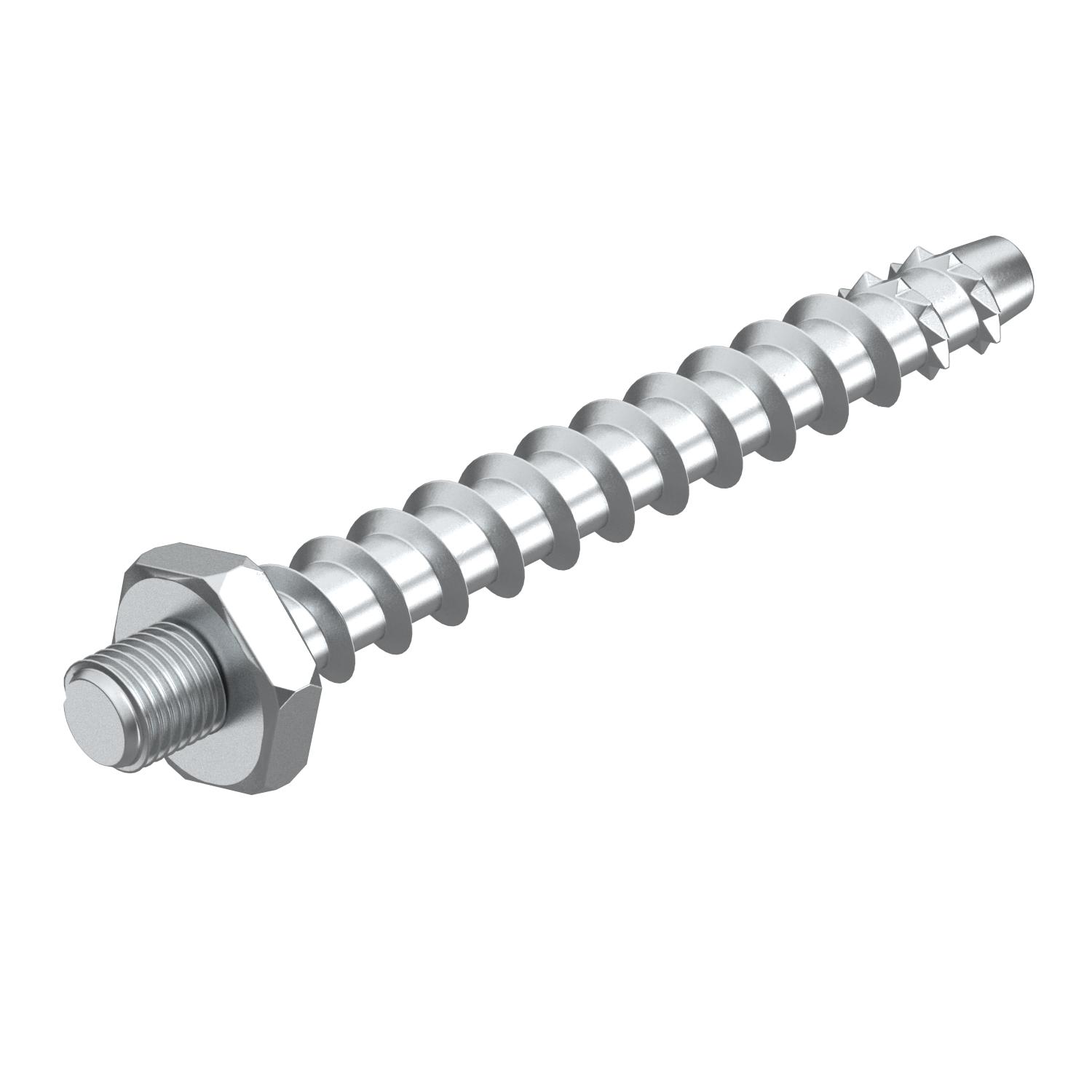

MMS-plus ST 6x55 push-in tie, with connection thread
Št. art. 3498264 | EAN 4012196559671
- Opis izdelka
-
Opis izdelkaBolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. M6 connection thread for fastening clips with threaded foot.
Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.
-
- Tehnični podatki
-
Tehnični podatki

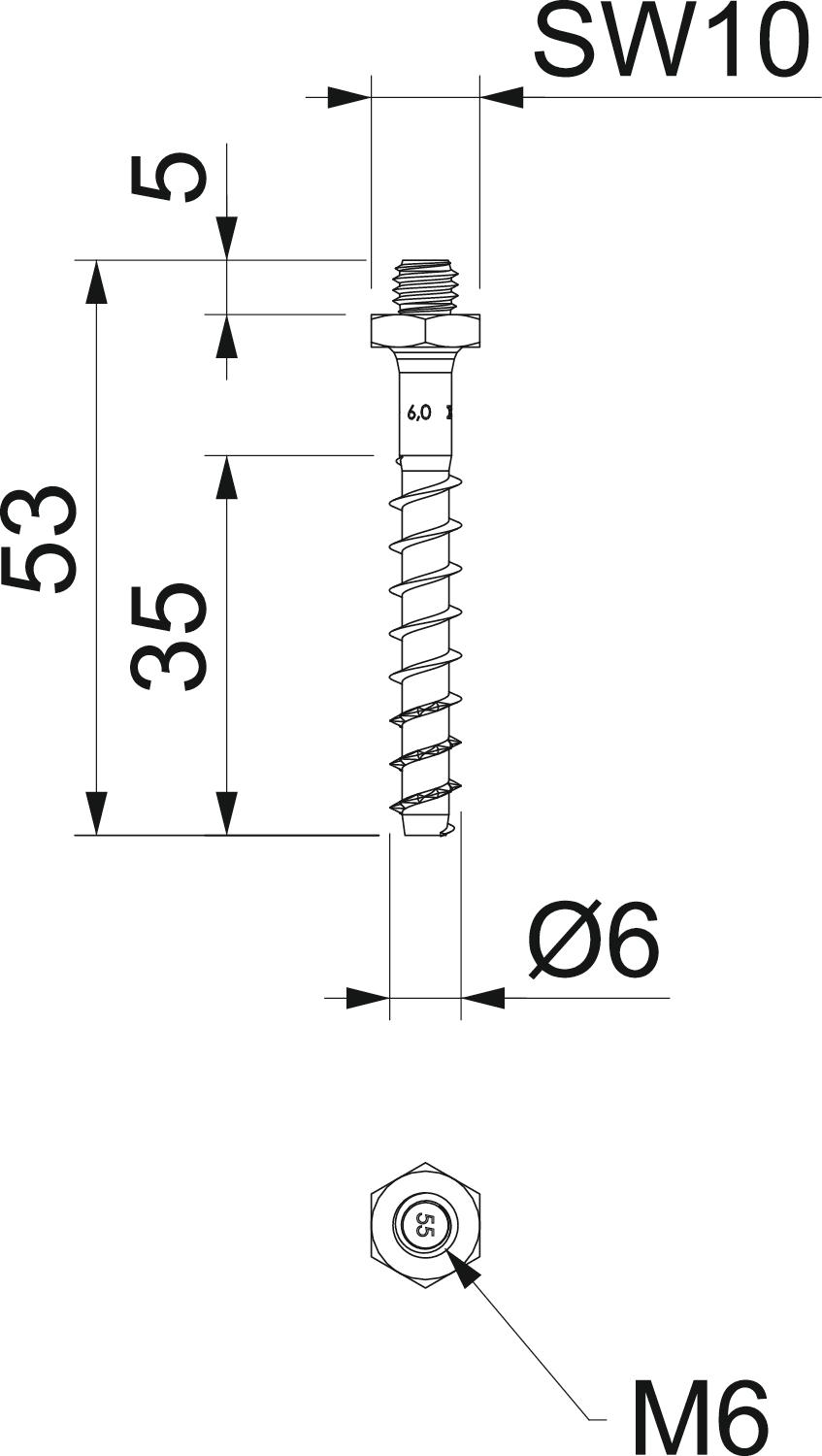

Barva cink Dimenzija 6x55mm Dimenzije 6x55 Dolžina 55 mm Dolžina vložka 60 mm Fire resistance class EN 13501-1 R30, R60, R90, R120 Globina izvrtine 40 mm Kaljeno da Material Jeklo Mera L 55 mm Min. premer izvrtine 5 mm Navoj M6 Oblika glave drugo Površina galvansko cinkano Premer navoja ST 6 Prižemna debelina 5 mm Velikost ključa 10 Vijačni sistem Šestkotnik (heksagonalen) - Vsi tipi
- Prenosi
-
Podatkovni list MMS+ ST 6x55 / 3498264 , 0.17MB , pdfIzjava o lastnostih MMS+ ST 6x55 / 3498264 , 0.26MB , pdfREACH Izjava o skladnosti MMS+ ST 6x55 / 3498264 , 0.12MB , pdfRoHS Izjava o skladnosti MMS+ ST 6x55 / 3498264 , 0.12MB , pdf
