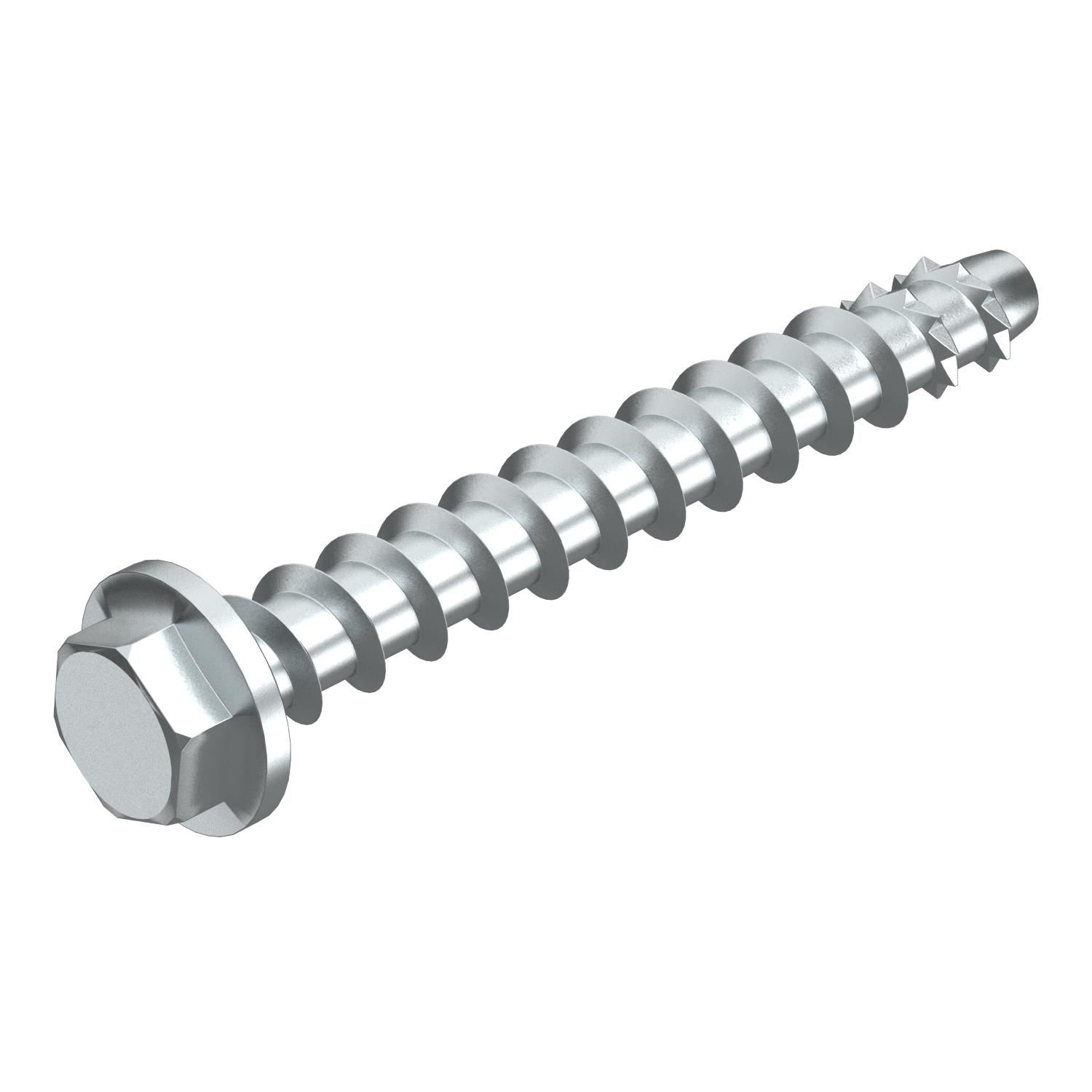

MMS-plus SS 10x80 hexagonal tie, with pressed washer
Št. art. 3498124 | EAN 4012196559626
- Opis izdelka
-
Opis izdelkaBolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With hex head drive and pressed washer to accept large loads. Suitable for fastening suspended loads from suspended supports and wall brackets.
Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.
-
- Tehnični podatki
-
Tehnični podatki

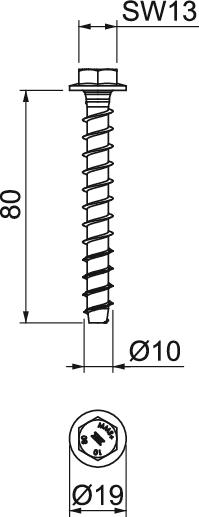

Barva cink Dimenzija 10x80mm Dimenzije 10 x 80 Dolžina 80 mm Dolžina vložka 80 mm Fire resistance class EN 13501-1 R30, R60, R90, R120 Globina izvrtine 60 mm Izvedba vložkov/žebljev/vijakov Spiralni vložek Kaljeno da Material Jeklo Mera L 80 mm Min. premer izvrtine 8 mm Navoj 10 Oblika glave Šestkotnik (heksagonalen) Ocena potresa ETA C1 Površina galvansko cinkano Premer glave 19 mm Premer navoja ST 10 Prižemna debelina 30 mm Velikost ključa 13 Vijačni sistem Šestkotnik (heksagonalen) - Vsi tipi
- Prenosi
-
Podatkovni list MMS+ SS 10x80 / 3498124 , 0.16MB , pdfIzjava o lastnostih MMS+ SS 10x80 / 3498124 , 0.26MB , pdfREACH Izjava o skladnosti MMS+ SS 10x80 / 3498124 , 0.12MB , pdfRoHS Izjava o skladnosti MMS+ SS 10x80 / 3498124 , 0.12MB , pdf
