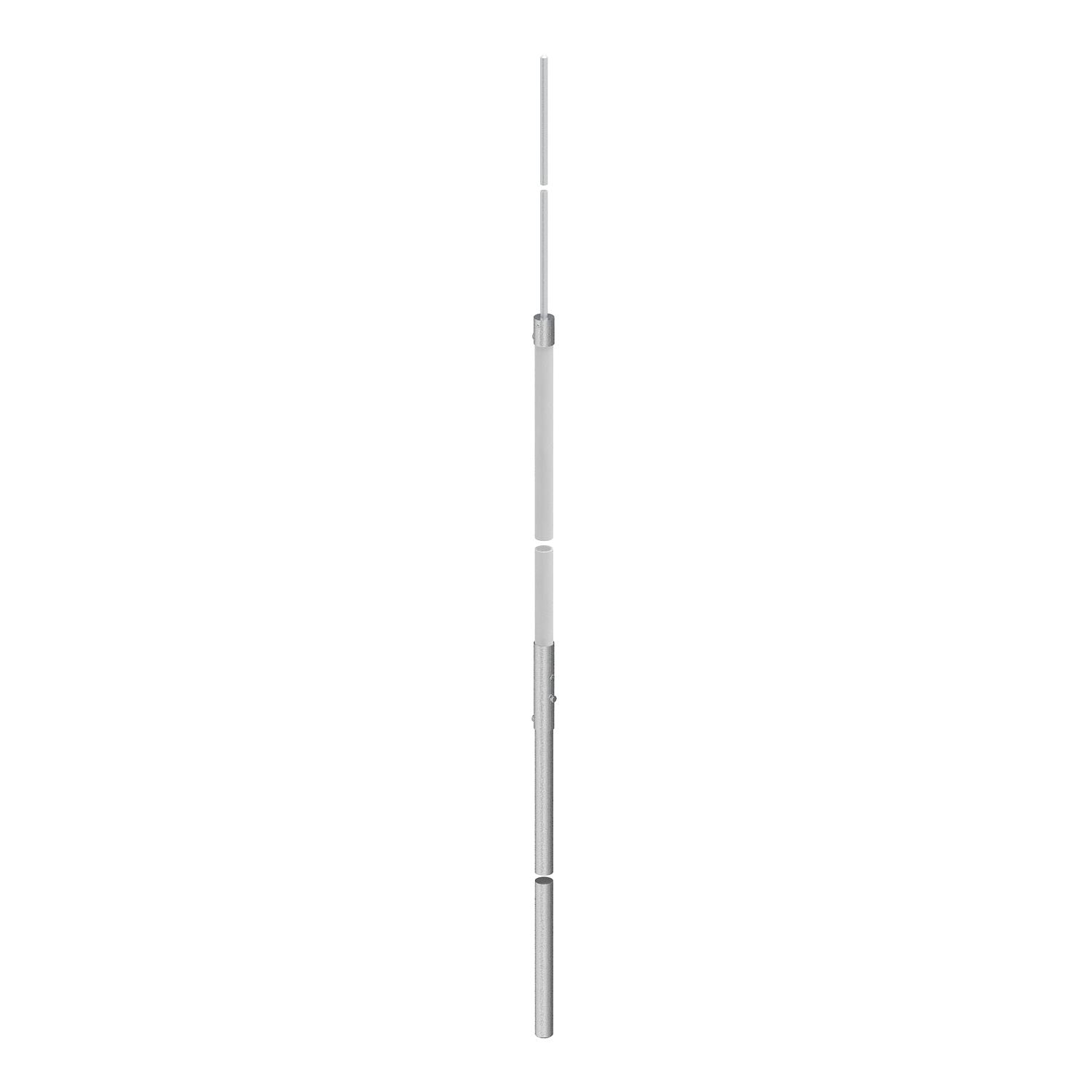

Insulated air-termination rod

Št. art. 5408946 | EAN 4012195670063

Št. art. / Tip

Dolžina

Opis izdelka

Opis izdelka

• For isolated creation of air-termination systems
• Suitable for isFang air-termination rod stand, type isFang 3B-100/150
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• For installation on the building structure with isFang support
• Fastening of the OBO isCon® conductor possible using accessories
• Suitable for externally routed isCon® conductors
• Stainless steel standpipe (V2A)
• Centre section made of fibre-glass reinforced plastic (GRP)
• Aluminium air-termination tip

Tehnični podatki

Tehnični podatki

Barva	svetlo siva
Dimenzija	6000mm
Dolžina	6000 mm
Izvedba	Lovilni drog
Material	S steklenimi vlakni ojačana umetna masa

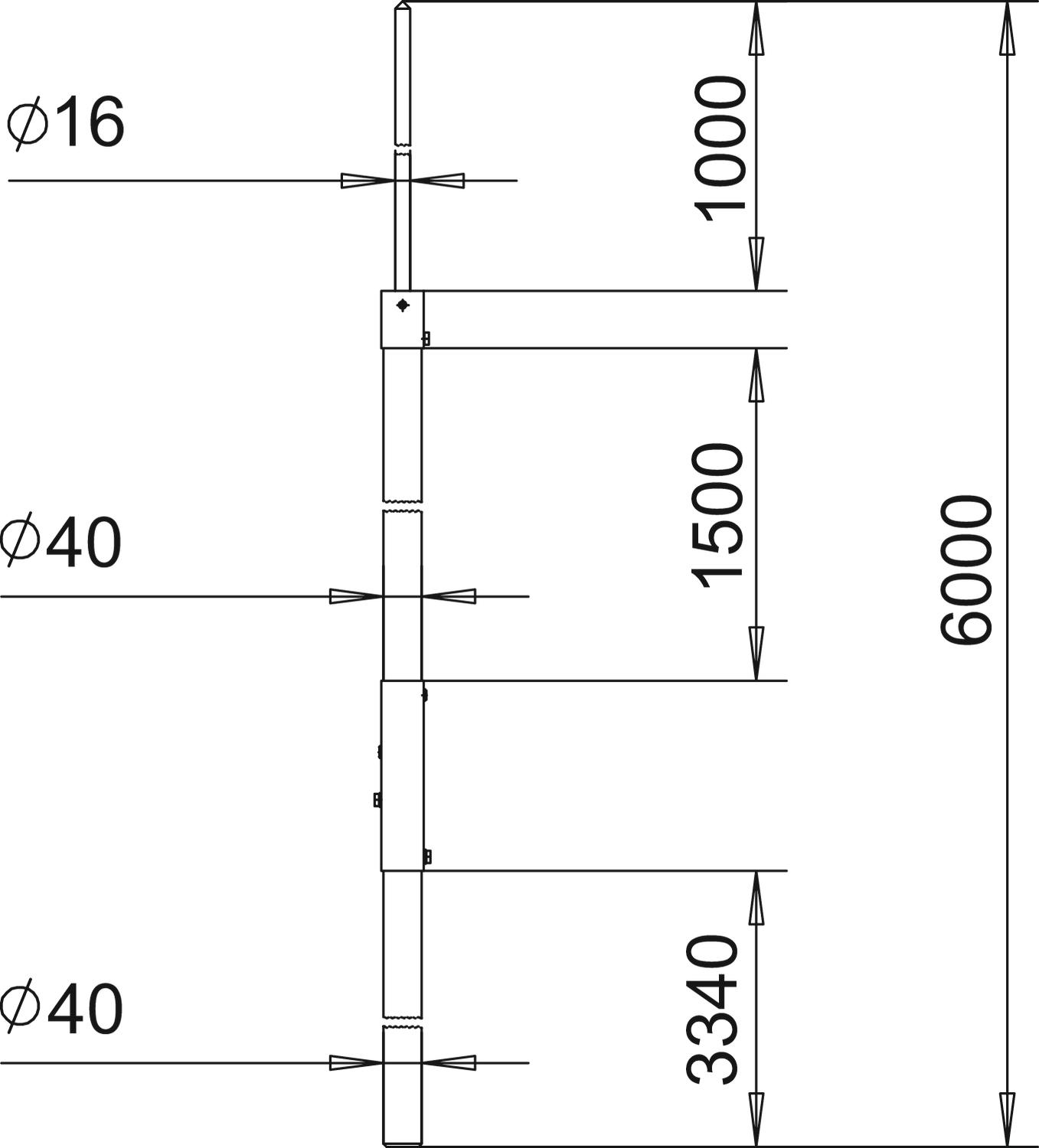

Mera A	3340 mm

Mera B	1000 mm
Mera D min.	40 mm
Mera H	1500 mm
Premer	40 mm
Priključek	Okrogli vodnik
Proti visoki napetosti odporna, izolirana izvedba	da

Vsi tipi

Vsi tipi

Tip	Dolžina	Št. art.	Količina	Min. prodajna enota
isFang 4000	4000 mm	5408942	Kos	1 Kos
isFang 4000 AL	4000 mm	5408943	Kos	1 Kos
isFang 6000	6000 mm	5408946	Kos	1 Kos
isFang 6000 AL	6000 mm	5408947	Kos	1 Kos

Pribor

Sistemski dodatki

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
Betonsko postolje za sustav FangFix 16 kg	F-FIX-S16	5403227	Kos	1 Kos
Base for FangFix system 16 kg for mounting the isFang tripod	F-FIX-B16 3B	5403238	Kos	10 Kos
isFang tripod	isFang 3B-100 AL	5408966	Kos	1 Kos
isFang-3B threaded rod	isFang 3B-G2	5408972	Kos	3 Kos
