Instalacijski steber, tip ISSDHSM45 675 | srebro

Instalacijski steber, tip ISSDHSM45

Št. art. 6289982 | EAN 4012195811794

Št. art. / Tip

Dolžina	675 mm

Barva

Opis izdelka

Opis izdelka

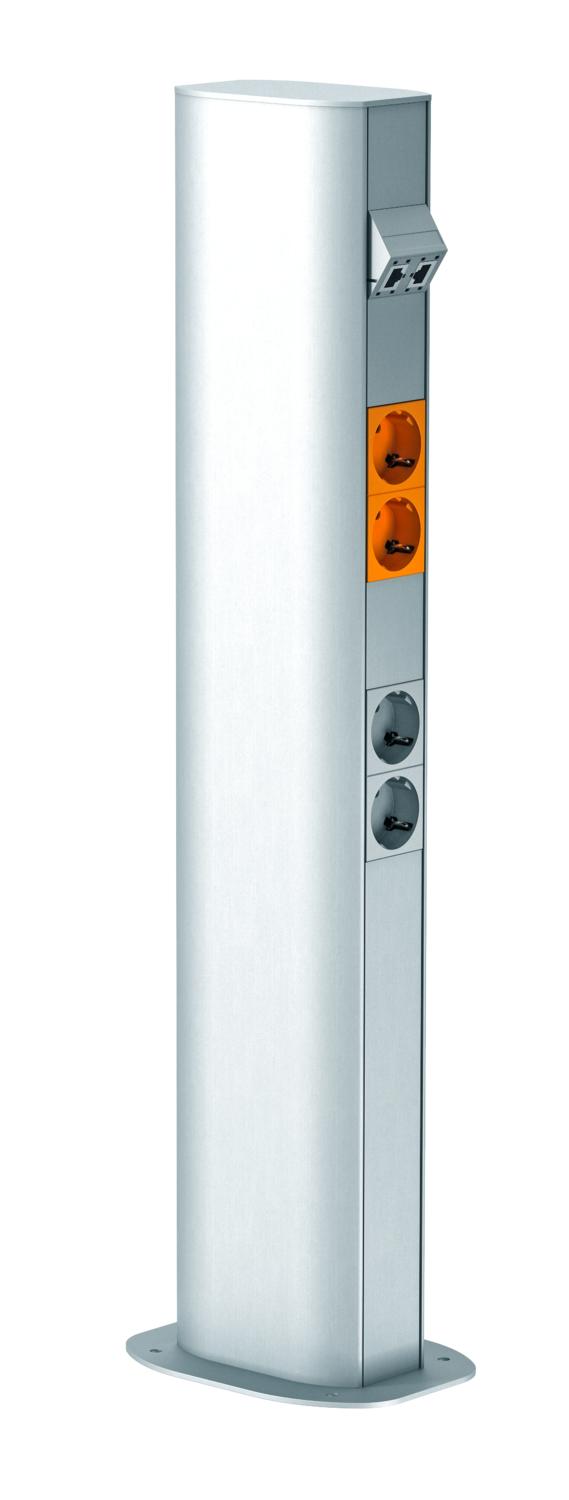

ISS service pole made from aluminium with 45 mm system opening for the direct installation of Modul 45 switching and connection devices.

Pole consisting of:
1 two-compartment pole with stand
Total length 675 mm
2 aluminium covers
Length 675 mm

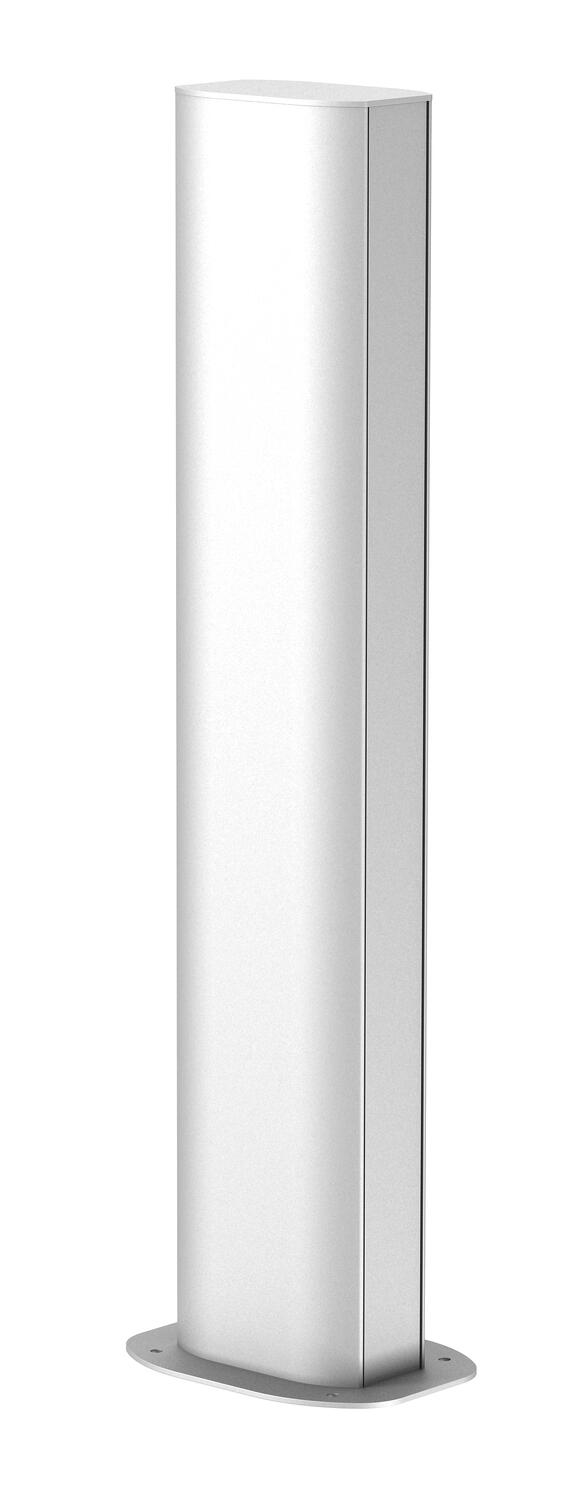

The design of this service pole is based on an extremely slender, oval aluminium profile, which shows a cover of the Rapid 45 device installation trunking series at both narrow ends of the oval. The 45 mm system opening is suitable for direct acceptance of Modul 45® switching and connection devices. The installation area is theoretically sufficient for 2x 14 Modul 45® devices. If Modul 45connect® is used or in the case of cabling requiring a lot of space, the number of the max. installable devices is reduced. There is the option of installing a partition, type 2371/40 (6023096).

Tehnični podatki

Tehnični podatki

Barva	srebro
Brez halogenov	da

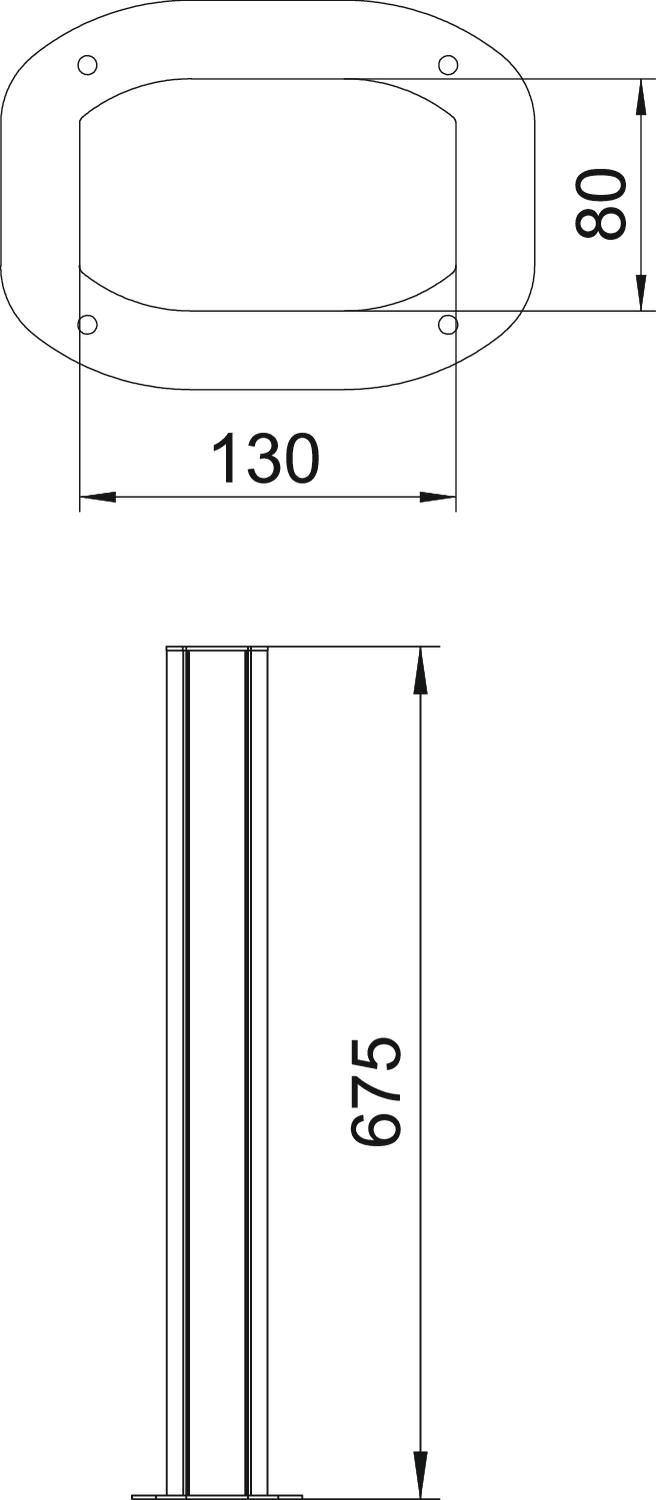

Dimenzija	675x80x130
Izvedba	obojestransko
Kabelski skoznjik	spodaj
Material	aluminij
Način pritrditve	Podstavek
Nastavljiv	ne
Neprekinjeni profil	da

Oblika stebra	ovalno
Površina	eloksirano
Širina pokrova	45 mm
Spremenljiva lokacija	ne
Število potegov	2 St.
Število vstavljivih pokrovov	2
strop	ne
Talna montaža	da
Vnaprej ožičeno	ne
