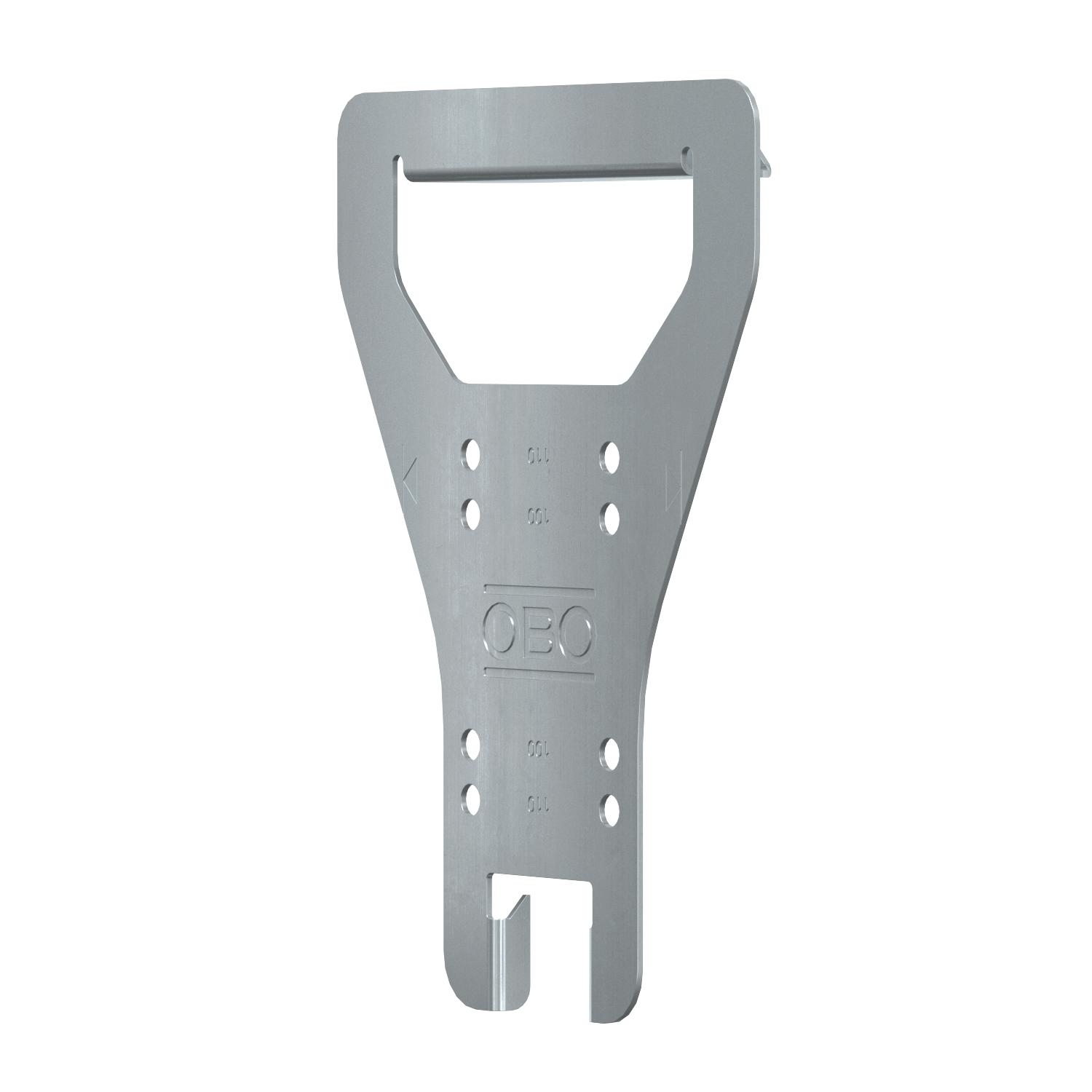

Dvigalka pokrova za pokrov iz rebraste pločevine
Št. art. 6049285 | EAN 4012196672271
- Opis izdelka
-
Opis izdelkaUsing the cover lifter, chequer plate covers installed with cover clamps can be dismantled quickly and simply.
Alternatively, the cover lifter can be used as a template for the connector perforation with cable trays cut during construction. For this, turn the cover lifter through 180° and position on the cable tray. Then use the perforation template appropriate to the side height.
Position the cover lifters as pairs on the cover clamps and remove the chequer plate cover evenly. Repeat lengthways until the entire cover is removed.
-
- Tehnični podatki
-
Tehnični podatki

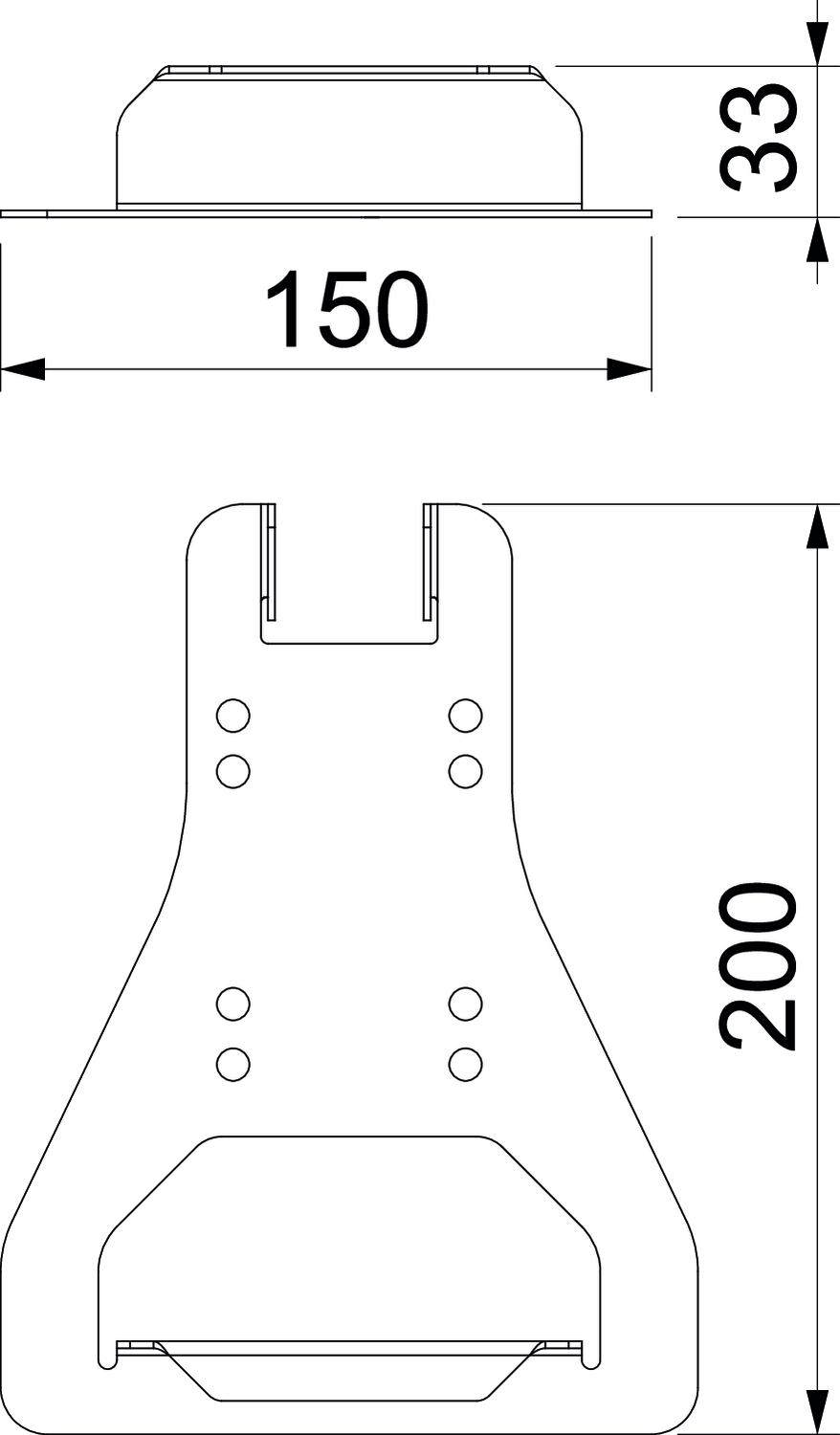

Barva cink Brez halogenov ne Dimenzija 150x200x33 Dolžina 200 mm Material Jeklo Nerjavno jeklo ne Odtis CO2 (GWP) od zibelke do vrat 1,86 kg CO2e / 2 Kos Površina neprekinjeno cinkano v ognju Simetrično da Širina 150 mm Udarna trdnost ne Višina 33 mm Z zaščito za roko da - Vsi tipi
- Prenosi
-
Podatkovni list DH DBKR FS / 6049285 , 0.19MB , pdfEU-Izjava o skladnosti DH DBKR FS / 6049285 , 0.12MB , pdfZK Izjava o skladnosti DH DBKR FS / 6049285 , 0.09MB , pdfREACH Izjava o skladnosti DH DBKR FS / 6049285 , 0.12MB , pdfRoHS Izjava o skladnosti DH DBKR FS / 6049285 , 0.12MB , pdfNavodila za montažo General information on the mounting , 2.65MB , pdfNavodila za montažo BKRS walkable cable tray systems , 5.36MB , pdfNavodila za montažo Navodila za montažo pohodnih kabelskih polic BKRS za Porsche AG , 0.06MB , pdf
