Deskbox with fastening clamp, 4 VDE sockets, USB Charger
Št. art. 6116764 | EAN 4012197333225
- Opis izdelka
-

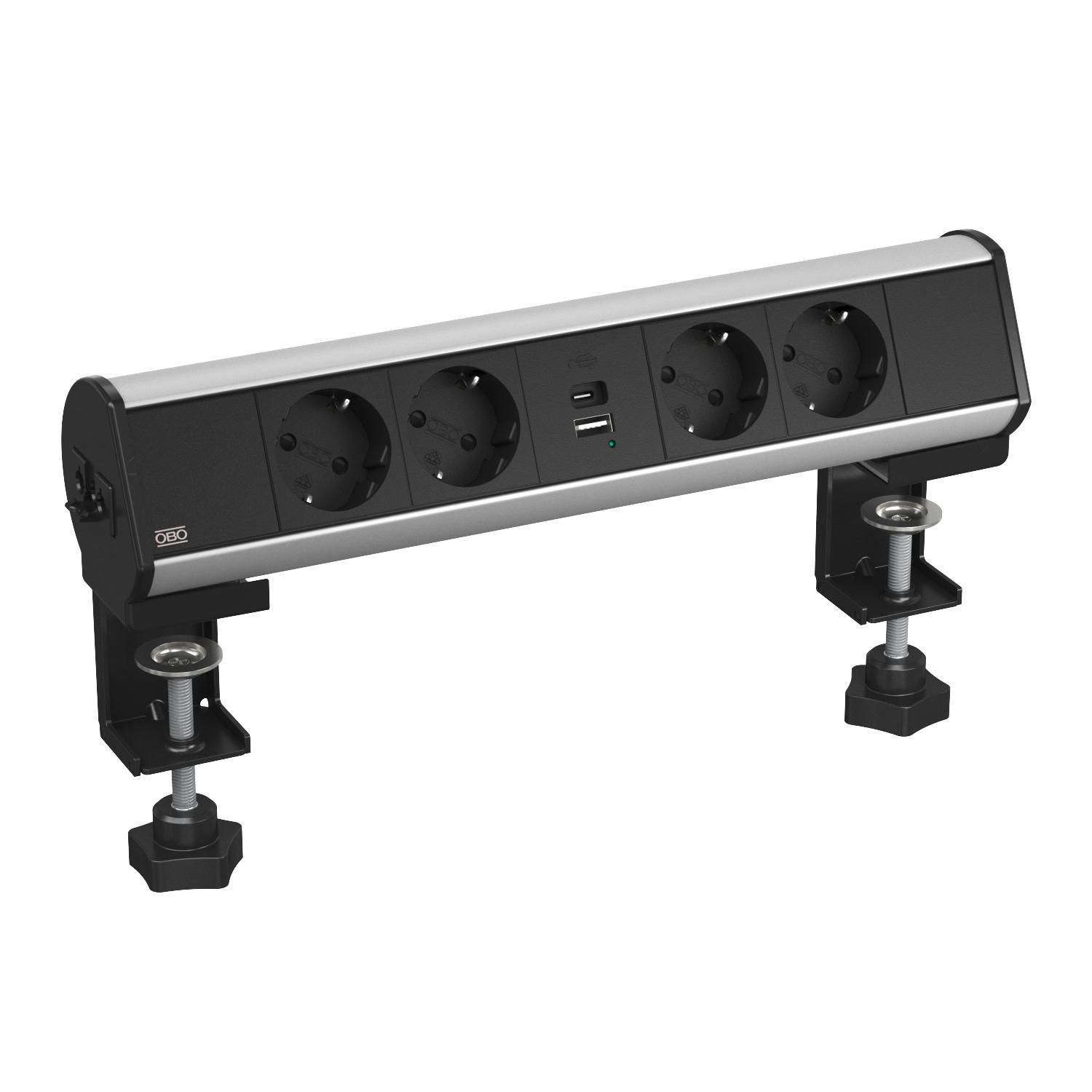

Opis izdelkaReady-for-connection Deskbox DBL for the direct supply of workstations with power. With a Wieland GST18® connector and cable outlet at the left side of the profile. Toolless mounting with 2 fastening clamps for tabletop thicknesses of 8 to 40 mm and 40 to 70 mm. The Deskbox is equipped with 4 black protective contact sockets in 33° connection direction and a 18W USB A+C Charger.
-
- Tehnični podatki
-
Tehnični podatki

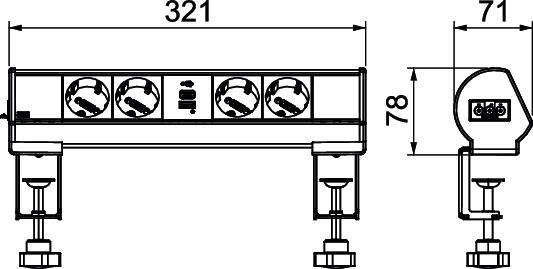

Barva srebro Dimenzija 325x71x78 Dolžina 145 mm Izvlečno ne Material aluminij Odtis CO2 (GWP) od zibelke do vrat 12,0545 kg CO2e / 1 Kos Površina eloksirano Sklopljiv navzgor ne Višina 59 mm - Vsi tipi
- Prenosi
-
Podatkovni list DBL-1B D4S 1C / 6116764 , 0.17MB , pdfREACH Izjava o skladnosti DBL-1B D4S 1C / 6116764 , 0.13MB , pdfRoHS Izjava o skladnosti DBL-1B D4S 1C / 6116764 , 0.13MB , pdfNavodila za montažo Multimedia support/Data technology support MTG.../DTG.... , 0.29MB , pdfNavodila za montažo Deskbox DBL with sockets , 0.56MB , pdf
