Counter-trough, metal, universal A2 21,5 | 7,7 | 35 | 12 | 16
morepic-1 morepic-2

Counter-trough, metal, universal A2

Št. art. 1197177 | EAN 4012195514152

35 mm
Opis izdelka
Opis izdelka
Metal counter-trough, for mounting on clamp clip. Can be used universally, irrespective of the rail.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Clamp clip for flat and U-iron from 4–12 mm
  • Clamp clip for C profile rail, slot width 11–12 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Clamp clip for angle irons with 40 mm leg length
  • CO₂ footprint (PCF)
  • Packaging without plastic
Tehnični podatki

Tehnični podatki

Brez halogenov da
Dimenzija 12-16mm
Izvedba objemne spone/objemk Protikad
Maks. vpenjalno območje D 16 mm
Material Nerjaveče jeklo 1.4301
Min. vpenjalno območje D 12 mm
Površina surovo, naknadno obdelano
Primerno za maks. premer kabla 16 mm
Serija proizvodov 2056 / 2058
Skladen z ROHS da

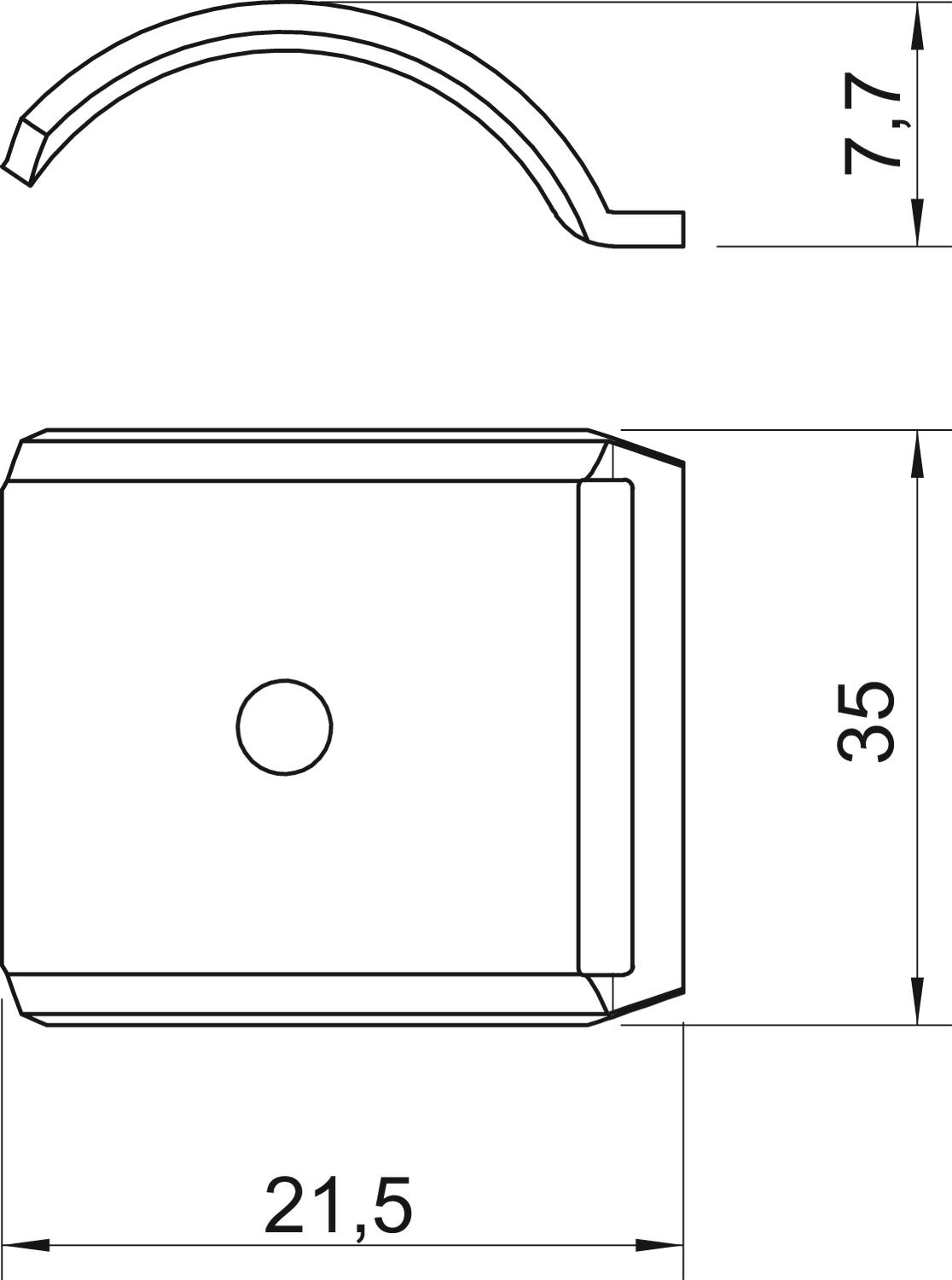

Dimenzije

Mera B 21,5 mm
Mera H 7,7 mm
Mera L 35 mm

CO2 odtis (Product Carbon Footprint)

CO₂ Footprint (GWP) 0,054 kg CO₂e
Declared Unit Units
Declared Unit Quantity 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
Odtis CO2 (GWP) od zibelke do vrat 0,054 kg CO2e / 1 Kos
Vsi tipi

Vsi tipi

Tip Mera B Mera H Mera L Min. vpenjalno območje D Maks. vpenjalno območje D Št. art. Količina Min. prodajna enota
2058FW M 8 A2 13 mm 2,25 mm 35 mm 4 mm 8 mm 1197096
100 Kos
2058FW M 12 A2 17,5 mm 6,5 mm 35 mm 8 mm 12 mm 1197134
100 Kos
2058FW M 16 A2 21,5 mm 7,7 mm 35 mm 12 mm 16 mm 1197177
100 Kos
2058FW M 22 A2 28 mm 8,8 mm 35 mm 16 mm 22 mm 1197231
100 Kos
