Connection thread sealing ring, metric 25,1 | 20 | 1,1

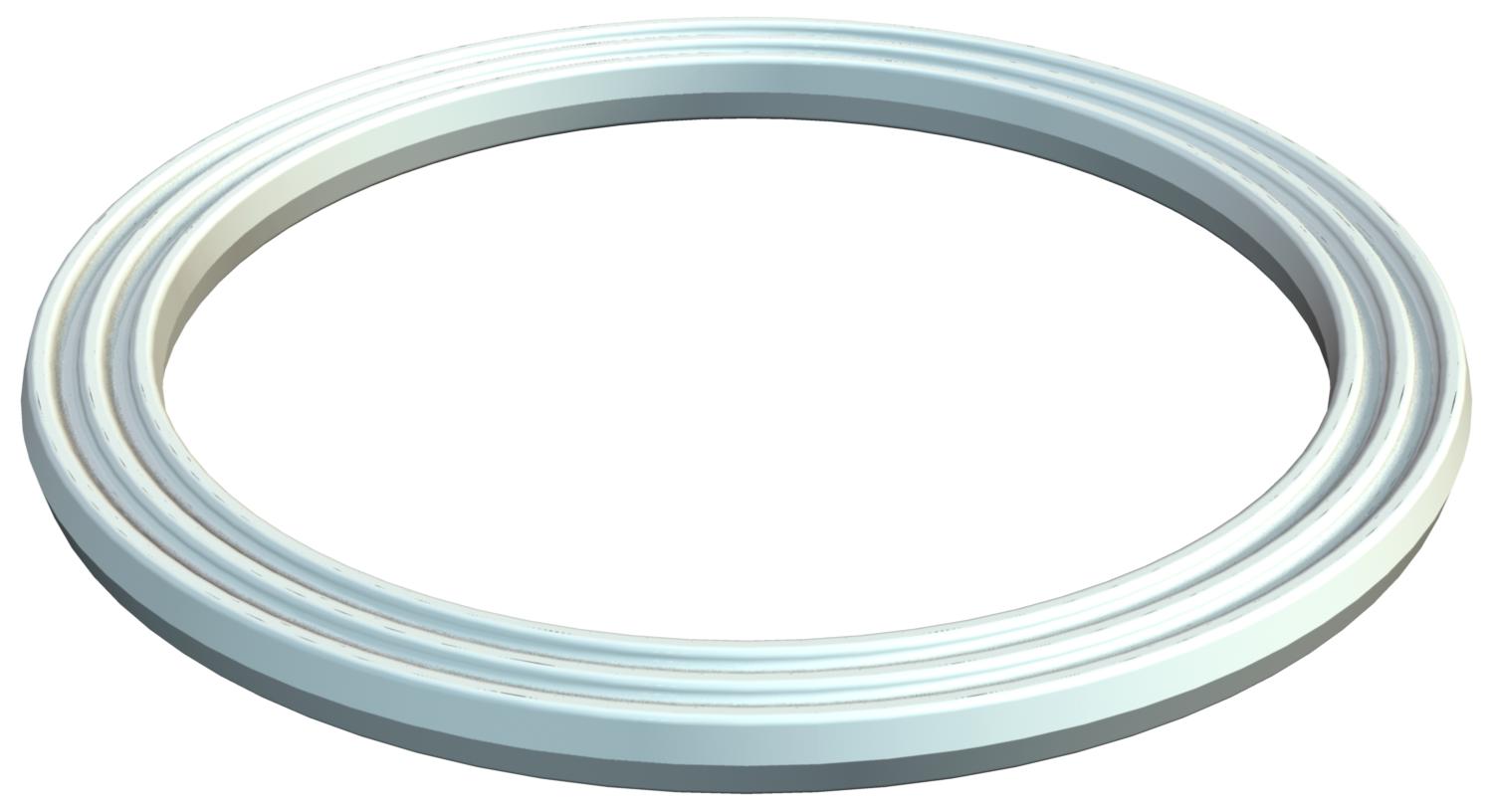

Connection thread sealing ring, metric

Št. art. 2030012 | EAN 4012195375678

Št. art. / Tip

Mera D1

Mera D2

Mera t

Opis izdelka

Opis izdelka

Connection thread sealing ring, suitable for all plastic cable glands, with metric thread according to DIN EN 60423 or ISO 68. The internal diameters of the sealing rings are designed in such a way that they can be pre-mounted in a captive manner.

Tehnični podatki

Tehnični podatki

Debelina	1,1 mm
Dimenzija	M20
Izvedba	Ploski tesnilni obroč
Material	Polietilen

Notranji premer	20 mm
Primerno za metrično velikost navoja	20
Zunanji premer	25,1 mm

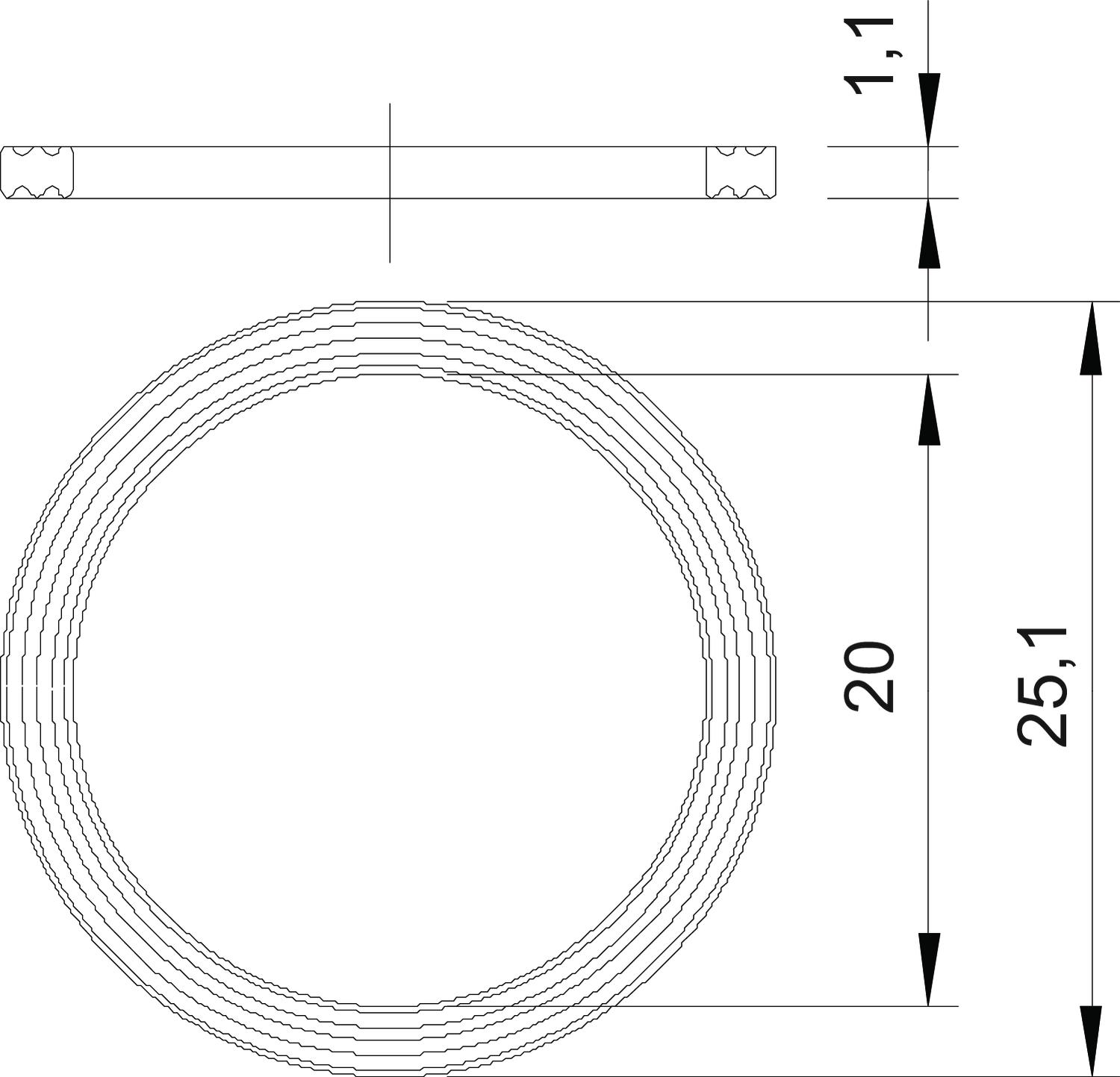

Dimenzije

Mera D1	25,1 mm
Mera D2	20 mm

Mera t	1,1 mm

CO2 odtis (Product Carbon Footprint)

CO₂ Footprint (GWP)	0,0099 kg CO₂e
Declared Unit (LCA)	Units
Declared Unit Quantity (LCA)	1

Determination date of CO2 value	2025-05-14T00:00:00.000+0200
Odtis CO2 (GWP) od zibelke do vrat	0,0099 kg CO2e / 1 Kos

Vsi tipi

Vsi tipi

Tip	Mera D1	Mera D2	Mera t	Št. art.	Količina	Min. prodajna enota
107 F M16 PE	20,9 mm	16 mm	1,1 mm	2030008	Kos	100 Kos
107 F M20 PE	25,1 mm	20 mm	1,1 mm	2030012	Kos	100 Kos
107 F M25 PE	31,3 mm	25 mm	1,4 mm	2030016	Kos	100 Kos
107 F M32 PE	37,6 mm	32 mm	1,7 mm	2030020	Kos	100 Kos
