Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT 12 | 16 | 3

Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT

Name: Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT
Brand: OBO Bettermann
SKU: 1186509

Št. art. 1186509 | EAN 4012196849826

Št. art. / Tip

Min. vpenjalno območje D

Maks. vpenjalno območje D

Maks. Zatezni moment

Opis izdelka

Opis izdelka

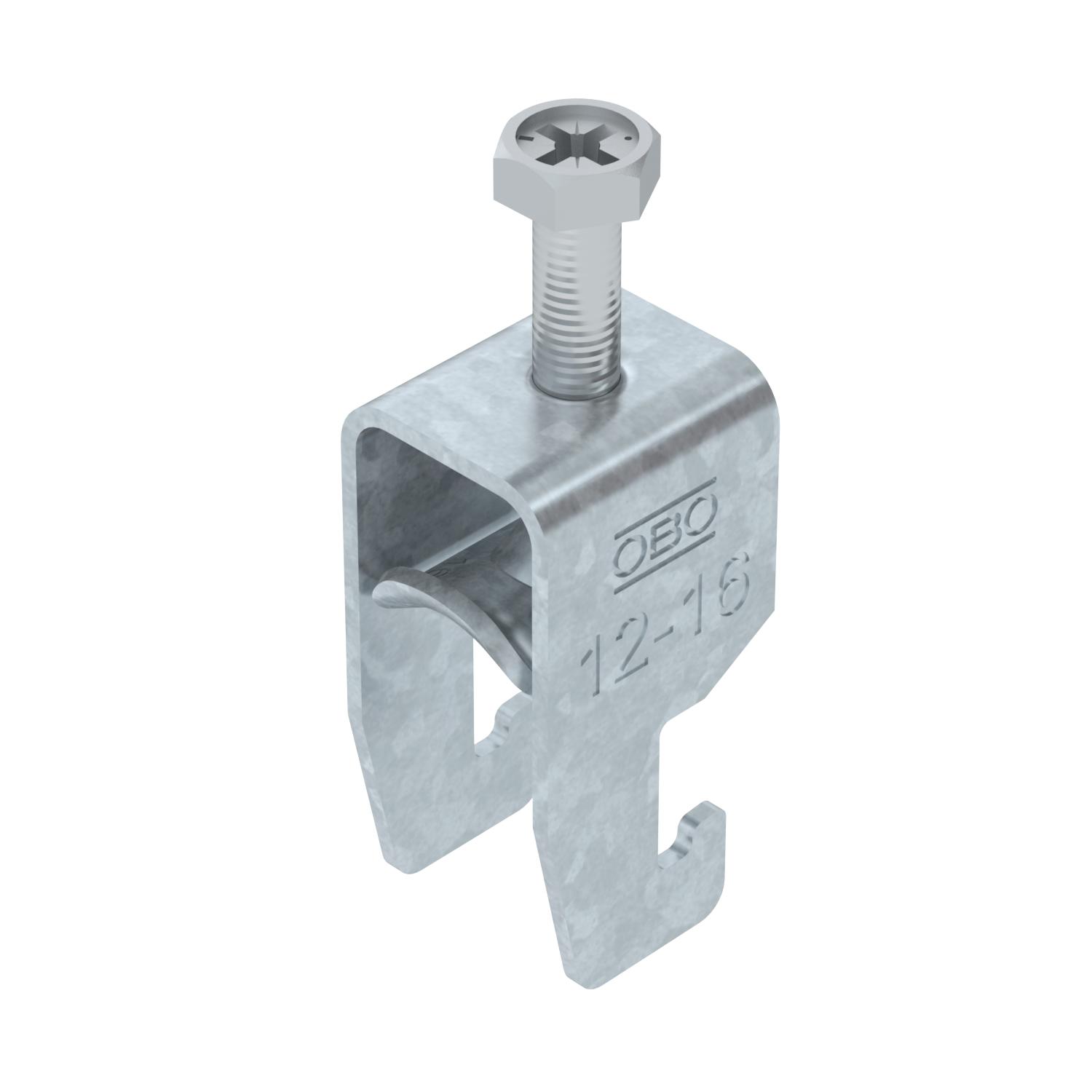

Clamp clip with U-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve. In AC circuits the product shall not be used with single core cable in galvanised cable ladders and profile rails because of the inductive heating.

Tehnični podatki

Tehnični podatki

Brez halogenov	da
Debelina pločevine	1,5 mm
Dimenzija	12-16mm
Dodatna površina	vroče pocinkano
Dodatni material	Jeklo
Maks. vpenjalno območje D	16 mm
Maks. Zatezni moment	3 Nm
Material	Jeklo
Material kadi	Jeklo
Min. vpenjalno območje D	12 mm
Način montaže	Jekleni montažni profil
Navoj	M6

Ohranitev delovanja naprav	da
Površina	vroče pocinkano
S kovinsko objemno spono	da
Širina utora	10 mm
Število kablov/cevi	1
Z objemno spono	ne
za premer cevi maks.	16 mm
za premer cevi min.	12 mm
za tirnico s širino zareze (z intervalom) maks.	22 mm
za tirnico s širino zareze (z intervalom) min.	18 mm
Zunanja dolžina	28 mm

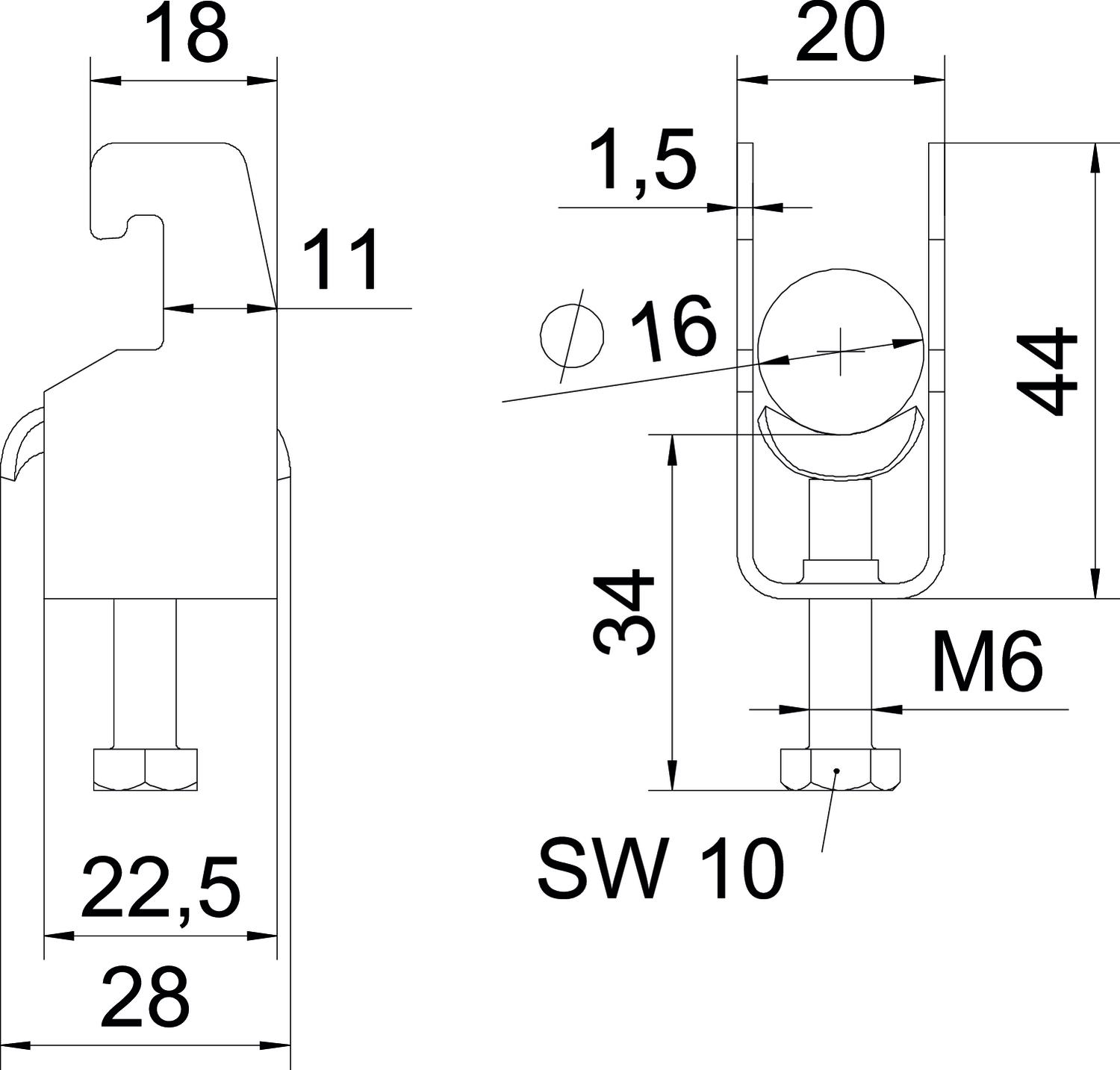

Dimenzije

Dolžina	22,5 mm
Mera A	22,5 mm
Mera B	20 mm
Mera C	28 mm
Mera G (mm)	M6

Mera H	44 mm
Mera L	34 mm
Mera t	1,5 mm
Širina	20 mm
Višina	44 mm

CO2 odtis (Product Carbon Footprint)

CO₂ Footprint (GWP)	0,0897 kg CO₂e
Declared Unit (LCA)	Units
Declared Unit Quantity (LCA)	1

Determination date of CO2 value	2025-05-14T00:00:00.000+0200
Odtis CO2 (GWP) od zibelke do vrat	0,0897 kg CO2e / 1 Kos

Vsi tipi

Vsi tipi

Tip	Min. vpenjalno območje D	Maks. vpenjalno območje D	Maks. Zatezni moment	Št. art.	Količina	Min. prodajna enota
BS-U1-M-12 FT	8 mm	12 mm	3 Nm	1186502	Kos	100 Kos
BS-U1-M-16 FT	12 mm	16 mm	3 Nm	1186509	Kos	100 Kos
BS-U1-M-22 FT	16 mm	22 mm	3 Nm	1186516	Kos	100 Kos
BS-U1-M-28 FT	22 mm	28 mm	3 Nm	1186522	Kos	100 Kos
BS-U1-M-34 FT	28 mm	34 mm	3 Nm	1186529	Kos	100 Kos
BS-U1-M-40 FT	34 mm	40 mm	3 Nm	1186536	Kos	100 Kos
BS-U1-M-46 FT	40 mm	46 mm	5 Nm	1186542	Kos	100 Kos
BS-U1-M-52 FT	46 mm	52 mm	5 Nm	1186549	Kos	100 Kos
BS-U1-M-58 FT	52 mm	58 mm	5 Nm	1186556	Kos	100 Kos
BS-U1-M-64 FT	58 mm	64 mm	5 Nm	1186562	Kos	100 Kos
BS-U1-M-70 FT	64 mm	70 mm	5 Nm	1186569	Kos	50 Kos
BS-U1-M-76 FT	70 mm	76 mm	5 Nm	1186576	Kos	25 Kos
BS-U1-M-82 FT	76 mm	82 mm	5 Nm	1186582	Kos	25 Kos
BS-U1-M-90 FT	82 mm	90 mm	5 Nm	1186589	Kos	25 Kos
BS-U1-M-100 FT	90 mm	100 mm	5 Nm	1186597	Kos	25 Kos
