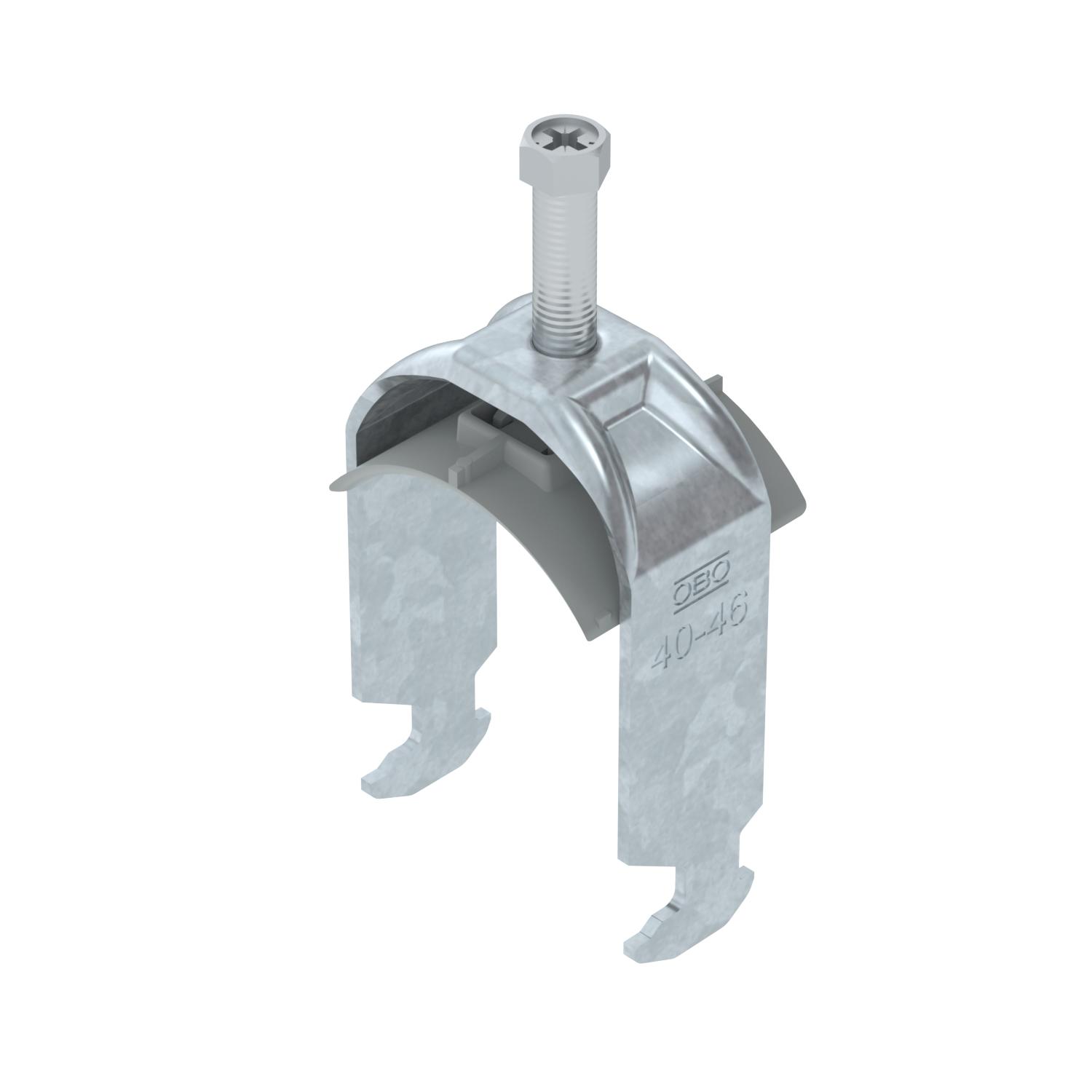

Clamp clip 2056 H-foot, 1-fold, plastic pressure sleeve, FT 40 | 46 | 5

Clamp clip 2056 H-foot, 1-fold, plastic pressure sleeve, FT

Št. art. 1186242 | EAN 4012196847198

Št. art. / Tip

Min. vpenjalno območje D

Maks. vpenjalno območje D

Maks. Zatezni moment

Opis izdelka

Opis izdelka

Clamp clip with hammerhead foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For a slot width of 16–17 mm. With 1-start screw thread on pressure trough, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for mounting indoors and outdoors. We recommend the use of a counter-trough. Due to the inductive heating, it must not be used with single-wire cables in galvanised cable ladders and profile rails in alternating current circuits.

Tehnični podatki

Tehnični podatki

Brez halogenov	da
Debelina pločevine	2 mm
Dimenzija	40-46mm
Dodatna površina	vroče pocinkano
Dodatni material	Jeklo
Kakovost materiala kadi	polipropilen
Maks. vpenjalno območje D	46 mm
Maks. Zatezni moment	5 Nm
Material	Jeklo
Material kadi	Plastika
Min. vpenjalno območje D	40 mm
Način montaže	Jekleni montažni profil
Navoj	M8

Površina	vroče pocinkano
S plastično objemno spono	da
Serija proizvodov	2056 / 2058
Širina utora	10 mm
Skladen z ROHS	da
Število kablov/cevi	1
Z objemno spono	ne
za premer cevi maks.	46 mm
za premer cevi min.	40 mm
za tirnico s širino zareze (z intervalom) maks.	17 mm
za tirnico s širino zareze (z intervalom) min.	16 mm
Zunanja dolžina	40 mm

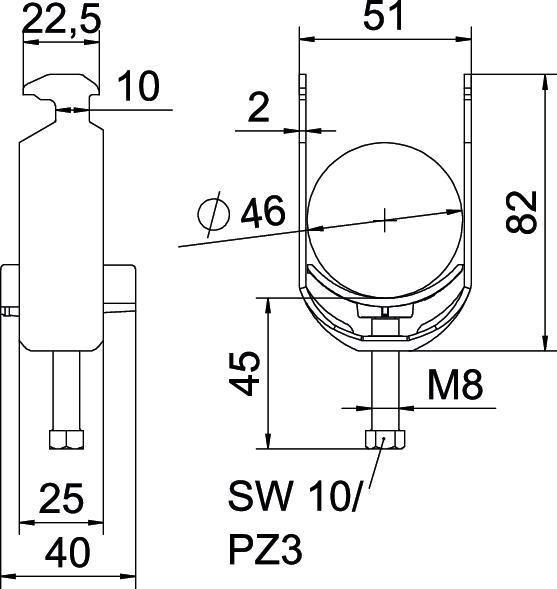

Dimenzije

Dolžina	25 mm
Mera A	25 mm
Mera B	51 mm
Mera C	40 mm
Mera G (mm)	M8

Mera H	82 mm
Mera L	45 mm
Mera t	2 mm
Širina	51 mm
Višina	82 mm

CO2 odtis (Product Carbon Footprint)

CO₂ Footprint (GWP)	0,2119 kg CO₂e
Declared Unit	Units
Declared Unit Quantity	1

Determination date of CO2 value	2025-05-14T00:00:00.000+0200
Odtis CO2 (GWP) od zibelke do vrat	0,2119 kg CO2e / 1 Kos

Vsi tipi

Vsi tipi

Tip	Min. vpenjalno območje D	Maks. vpenjalno območje D	Maks. Zatezni moment	Št. art.	Količina	Min. prodajna enota
BS-H1-K-12 FT	8 mm	12 mm	3 Nm	1186202	Kos	100 Kos
BS-H1-K-16 FT	12 mm	16 mm	3 Nm	1186209	Kos	100 Kos
BS-H1-K-22 FT	16 mm	22 mm	3 Nm	1186216	Kos	100 Kos
BS-H1-K-28 FT	22 mm	28 mm	3 Nm	1186222	Kos	100 Kos
BS-H1-K-34 FT	28 mm	34 mm	3 Nm	1186229	Kos	100 Kos
BS-H1-K-40 FT	34 mm	40 mm	3 Nm	1186236	Kos	100 Kos
BS-H1-K-46 FT	40 mm	46 mm	5 Nm	1186242	Kos	100 Kos
BS-H1-K-52 FT	46 mm	52 mm	5 Nm	1186249	Kos	100 Kos
BS-H1-K-58 FT	52 mm	58 mm	5 Nm	1186256	Kos	100 Kos
BS-H1-K-64 FT	58 mm	64 mm	5 Nm	1186262	Kos	100 Kos
BS-H1-K-70 FT	64 mm	70 mm	5 Nm	1186269	Kos	50 Kos
BS-H1-K-76 FT	70 mm	76 mm	5 Nm	1186276	Kos	25 Kos
BS-H1-K-82 FT	76 mm	82 mm	5 Nm	1186282	Kos	25 Kos
BS-H1-K-90 FT	82 mm	90 mm	5 Nm	1186289	Kos	25 Kos
BS-H1-K-100 FT	90 mm	100 mm	5 Nm	1186297	Kos	25 Kos
