Cable tray SKS 110 FT SOMY 3000 | 200 | 1,5 | ne | Jeklo | vroče cinkano 85 µm
morepic-1 morepic-2 morepic-3

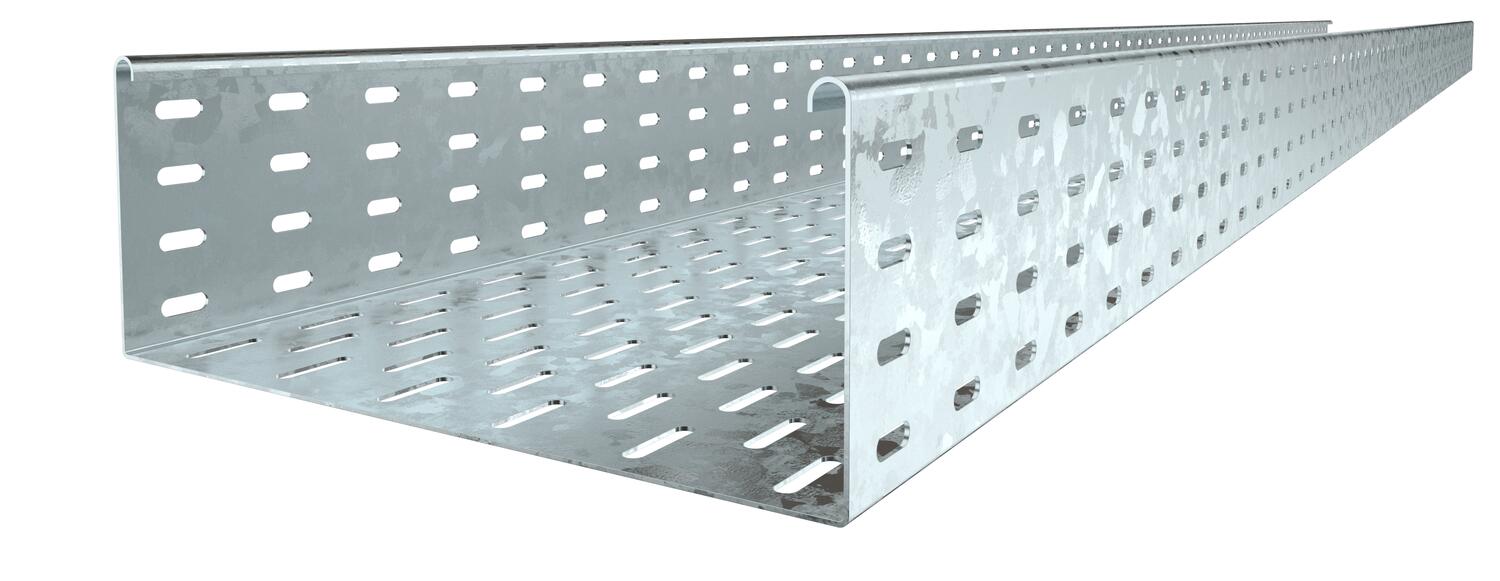

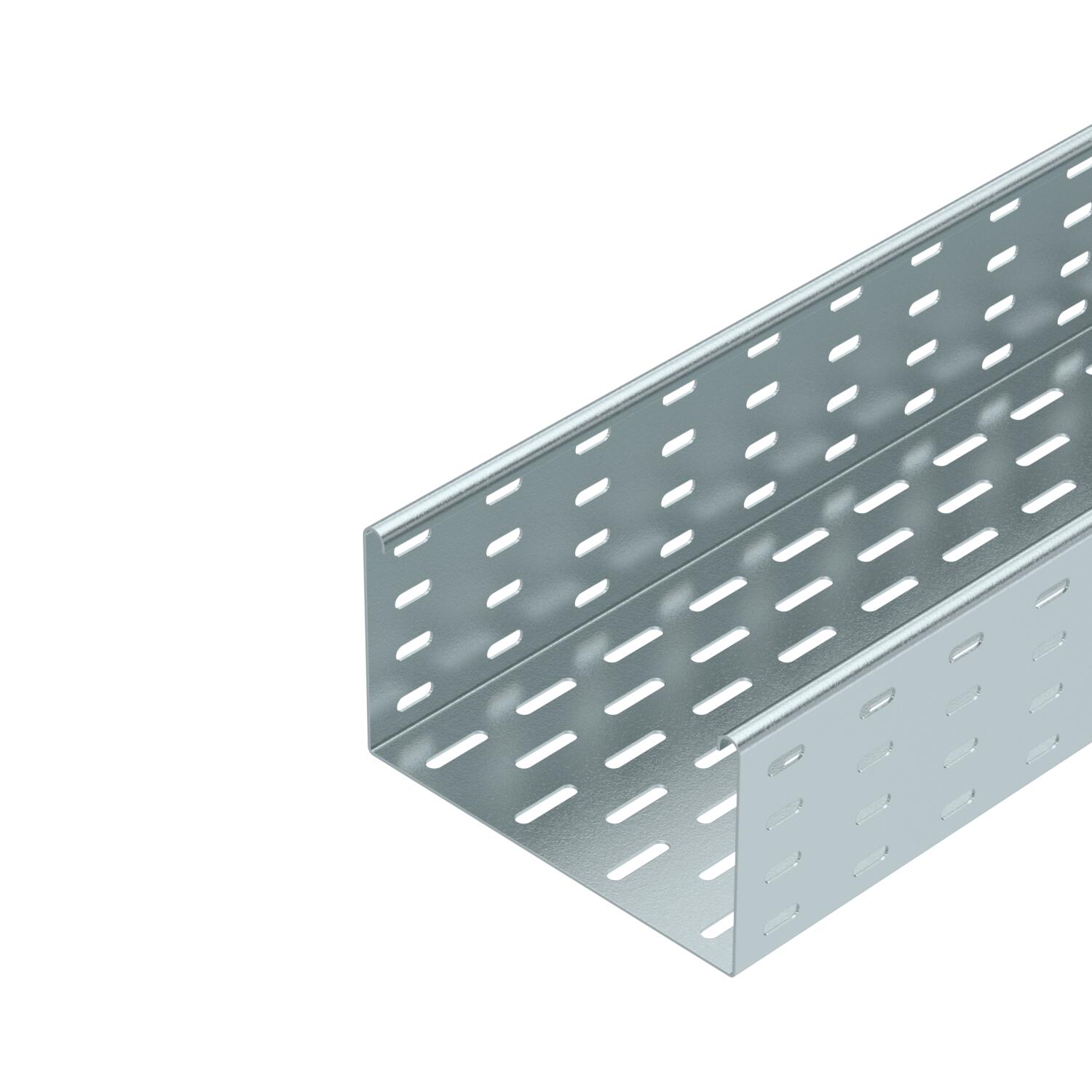

Cable tray SKS 110 FT SOMY

Št. art. 7196011 | EAN 4012195384724

7196011 / SKS 120 FT SO
3000 mm
200 mm
1,5 mm
ne
Jeklo
vroče cinkano 85 µm
Opis izdelka
Opis izdelka
SKS 110 = Heavy-duty cable tray system with 110 mm side height.

Magnetic shield insulation without cover 20 dB, with cover 50 dB.

The cable tray is fastened to the bracket with bolts, type FRS M6 x 12. The surface coating is a coating created in a single-dip method with extra-high zinc thicknesses.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
Tehnični podatki

Tehnični podatki

Barva cink
Debelina pločevine 1,5 mm
Dimenzija 110x200x3000
Izvedba spojke brez spojke
Izvedba za daljše razpone ne
Korisni presjek 218 cm²
Material Jeklo
Montažna perforacija na dnu da
Nerjavno jeklo, luženo ne
Ohranitev delovanja naprav ne
Površina vroče cinkano 85 µm
S pokrovom ne
Serija proizvodov SKS Series
Skladen z ROHS da
Stranska perforacija da
Vrsta preizkusa obremenitve po IEC 61537 Tip II
Vrsta spojke sistema kabelskih nosilcev privito
Vzorec perforacije NATO ne

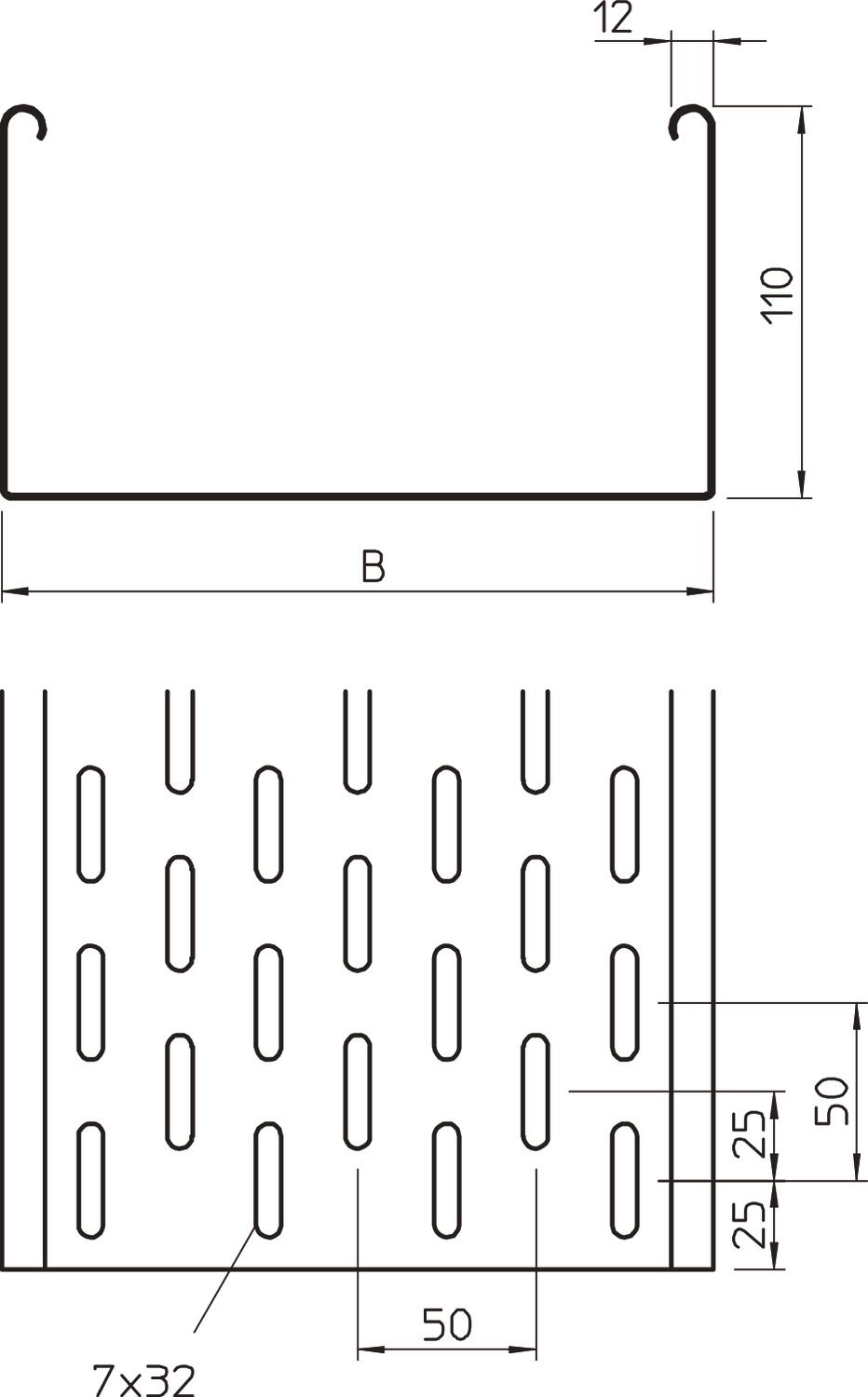

Dimenzije

Dolžina 3000 mm
Mera B 200 mm
Širina 200 mm
Višina 110 mm

Opterećenja

Razmik nosilcev 1,5 m 3 kN/m
Razmik nosilcev 2,0 m 2,4 kN/m
Razmik nosilcev 3,0 m 1,2 kN/m
Razmik nosilcev 4,0 m 0,8 kN/m

CO2 odtis (Product Carbon Footprint)

CO₂ Footprint (GWP) 11,7623 kg CO₂e
Declared Unit Metres
Declared Unit Quantity 1
Determination date of CO2 value 2025-05-21T00:00:00.000+0200
Odtis CO2 (GWP) od zibelke do vrat 11,7623 kg CO2e / 1 Meter

Tehnični podatki

Load diagram, cable tray, type SKS 110

Load diagram, cable tray, type SKS 110
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
Vsi tipi

Vsi tipi

Tip Dolžina Širina Debelina pločevine Ohranitev delovanja naprav Material Površina Št. art. Količina Min. prodajna enota
SKS 120 FT SO 3000 mm 200 mm 1,5 mm ne Jeklo vroče cinkano 85 µm 7196011
3 m
