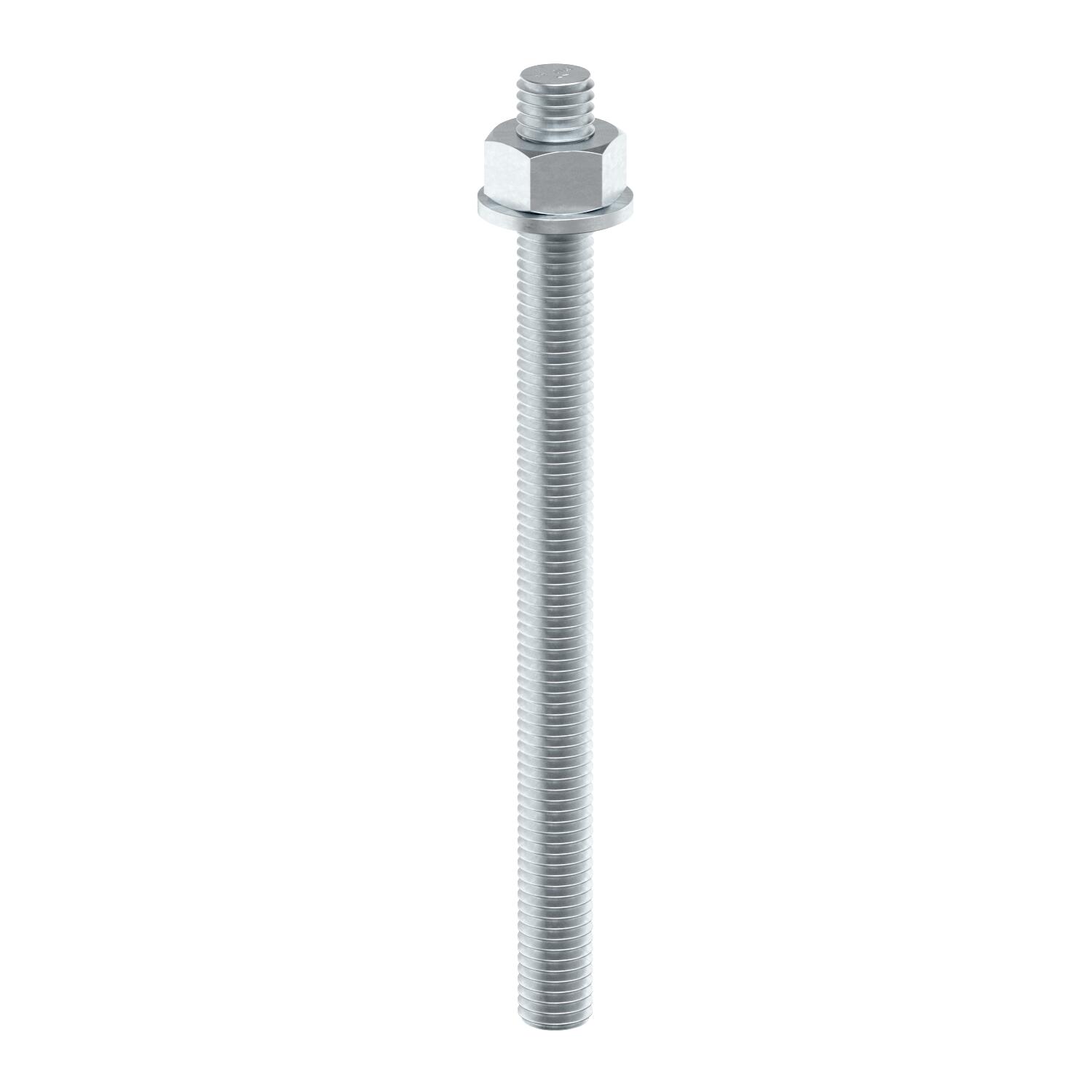

Anchor rod
Št. art. 3497826 | EAN 4012196606788
- Opis izdelka
-
Opis izdelkaWith the anchor rod and matching plastic wire sleeve, loads are fastened without spreading pressure in masonry walls using the VMS plus injection mortar. The system is also used for fastening in concrete ceilings. On concrete and full brick walls, the anchor rod is only mounted with the injection mortar VMU plus, without a wire sleeve.
The anchor rod VMU-A 8x110 mm is mounted using the plastic wire sleeve VM-SH 12x80 or VM-SH 16x85.
The VMU-A 10x130 mm anchor rod is mounted using the VM-SH 16x85 plastic wire sleeve.
The VMU-A 10x150 mm anchor rod is mounted using the VM-SH 16x85 or VM-SH 16x130 plastic wire sleeve.
The VMU-A 12x155 mm anchor rod is mounted using the VM-SH 20x85 plastic wire sleeve.
Use the wire sleeve VMU-SH 12x50 for the anchor rods M6 (L=65 mm) and M8 (L=65 mm). Should the anchor rods M8 (L=120 mm), M10 (L=140 mm), M10 (L=160 mm) and M12 (L=165 mm) be used, then use the wire sleeve VMU-SH 18x95.
- Tehnični podatki
-
Tehnični podatki

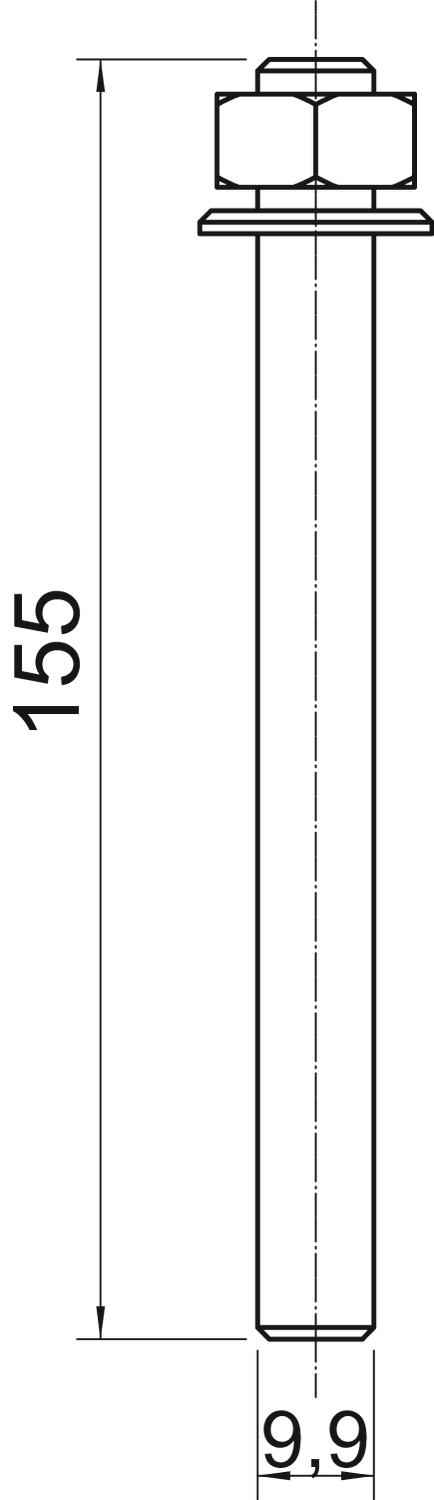

Barva cink Dimenzija 12x9,9 Dolžina 155 mm Material Jeklo Mera d 12 mm Mera L 155 mm Metrični navoj 12 Navoj M12 Oznaka globine da Površina galvansko cinkano Tip navoja metrično Trdnostni razred 5.8 Velikost ključa 19 Z zunanjim navojem da - Vsi tipi
- Prenosi
-
Podatkovni list VMU-A 12-155vz / 3497826 , 0.21MB , pdfNavodila za montažo Navodila za montažo sistema injektiranja VMU plus II , 3.12MB , pdf
