Adapter plate KA-AW 30
Št. art. 6346715 | EAN 4012196536832
- Opis izdelka
-

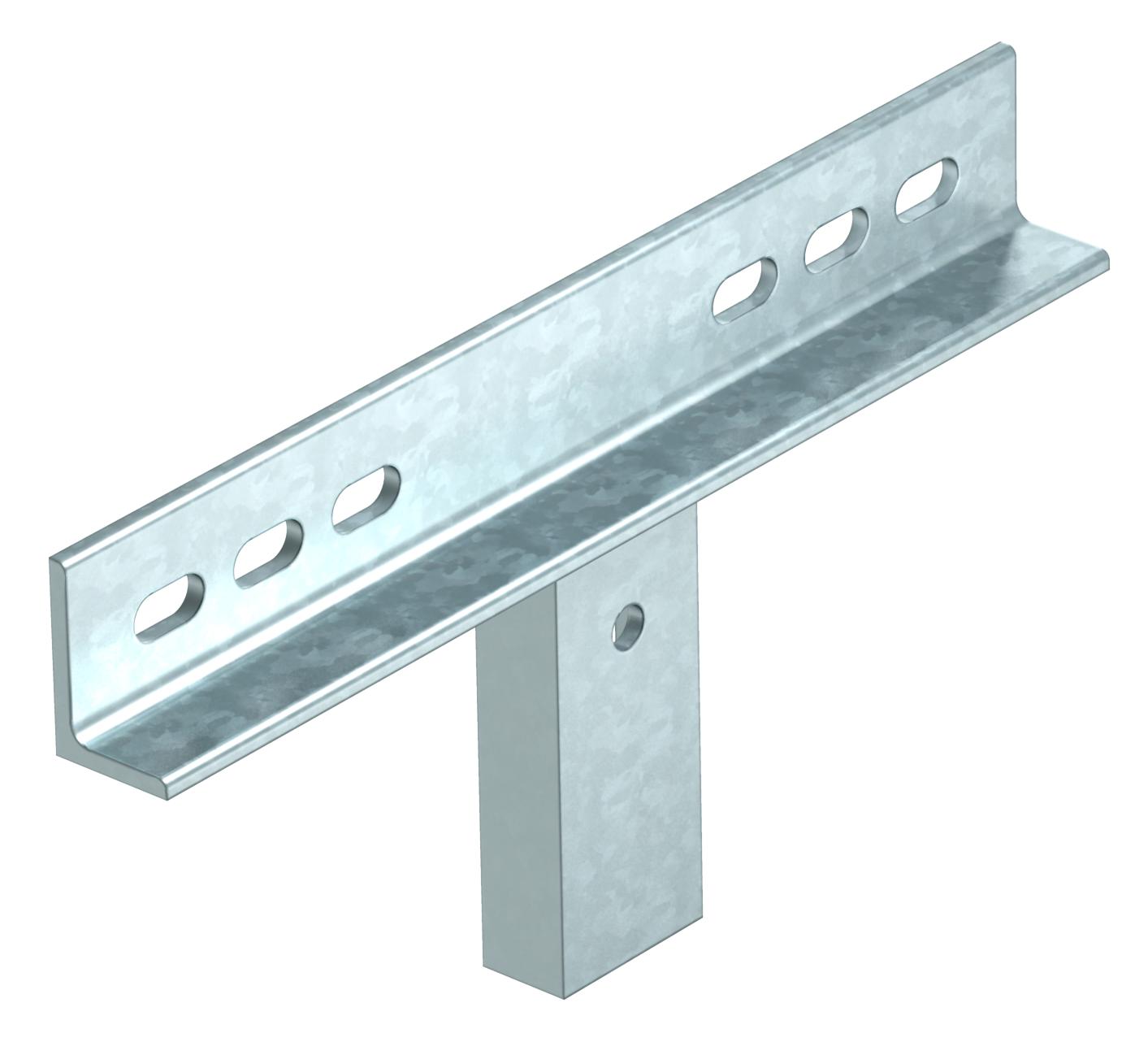

Opis izdelkaAdapter plate with slots for universal fastening to vertical steel girders and walls.
The bracket types AW 30, AW 55 and AW 80 can be screwed to the adapter plate.
Please order the hexagonal bolt for bracket mounting (type SKS 12 x 40 GF) separately.
-
- Tehnični podatki
-
Tehnični podatki

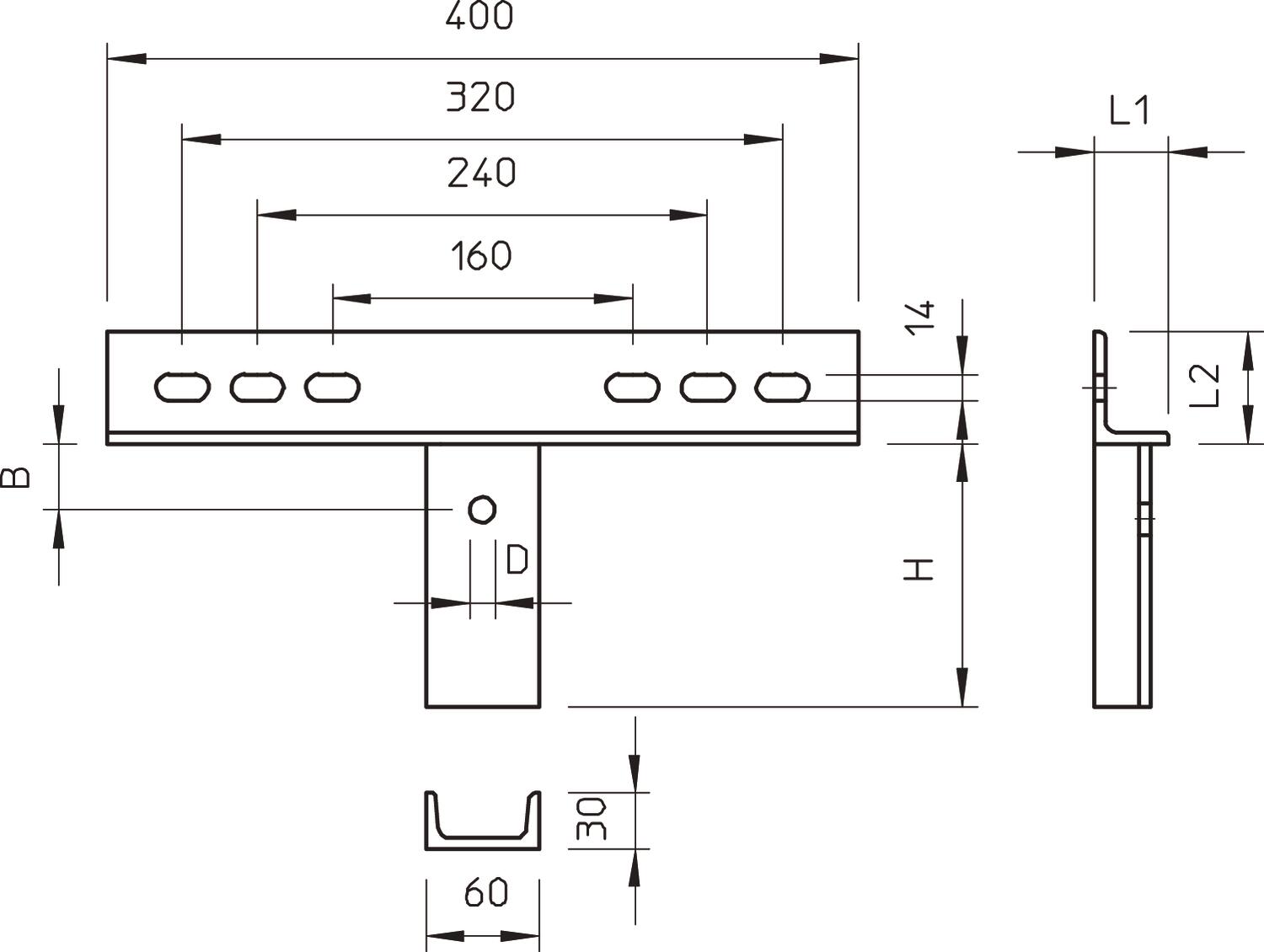

Barva cink Dimenzija 400x102 Material Jeklo Površina vroče pocinkano Dimenzije
Dolžina 40 mm Mera B 400 mm Mera H 140 mm Mera L 40 mm Širina 400 mm Višina 140 mm CO2 odtis (Product Carbon Footprint)
CO₂ Footprint (GWP) 5,5044 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 Odtis CO2 (GWP) od zibelke do vrat 5,5044 kg CO2e / 1 Kos - Vsi tipi
- Prenosi
-
Podatkovni list KA-AW 30 FT / 6346715 , 0.16MB , pdfEU-Izjava o skladnosti KA-AW 30 FT / 6346715 , 0.11MB , pdfZK Izjava o skladnosti KA-AW 30 FT / 6346715 , 0.09MB , pdfREACH Izjava o skladnosti KA-AW 30 FT / 6346715 , 0.12MB , pdfRoHS Izjava o skladnosti KA-AW 30 FT / 6346715 , 0.12MB , pdfNavodila za montažo General information on the mounting , 2.65MB , pdf
